Parts for T25926 - 10" x 18" Variable-Speed Benchtop Wood Lathe

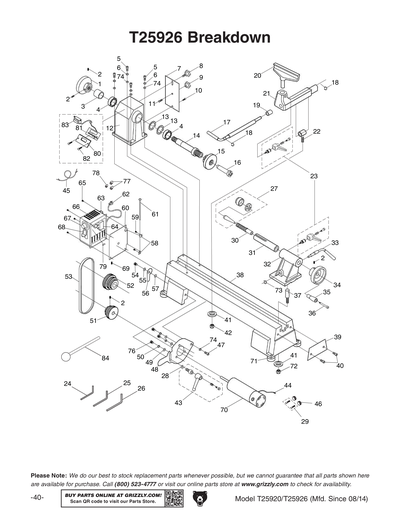

Part Diagram for T25926
Part Diagram for T25926
Part Diagram for T25926
Part Diagram for T25926
Part Diagram for T25926
Part Diagram for T25926

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

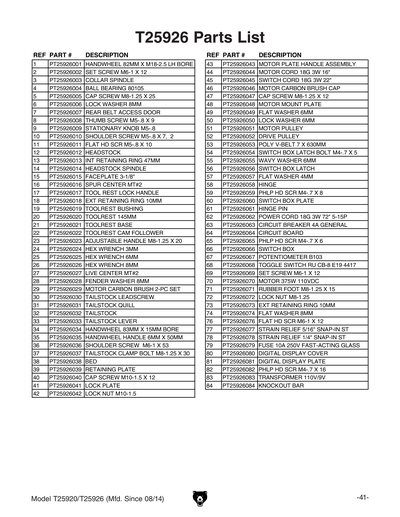

Ref #
Part #
Description
1
HANDWHEEL 82MM X M18-2.5 LH BORE
Price
N/A
2
SET SCREW M6-1 X 12
Price
N/A
3
COLLAR SPINDLE 29MM V1
Price
N/A
4
BALL BEARING 6005-2RS
Price
N/A
5
CAP SCREW M8-1.25 X 25
Price
N/A
6
LOCK WASHER 8MM
Price
N/A
7
REAR BELT ACCESS DOOR
Price
N/A
8
THUMB SCREW M5-.8 X 9
Price
N/A
9
STATIONARY KNOB M5-.8
Price
N/A
10
SHOULDER SCREW M5-.8 X 7, 2
Price
N/A
11
FLAT HD SCR M5-.8 X 10
Price
N/A
12
Price
$98.50
13
INT RETAINING RING 47MM
Price
N/A
14
HEADSTOCK SPINDLE
Price
N/A
15
Price
$19.25
16
SPUR CENTER MT#2
Price
N/A
17
Price
$14.00
18
EXT RETAINING RING 10MM
Price
N/A
19
TOOL REST BUSHING
Price
N/A
20
Price
$35.35
21
Price
$24.50
22
TOOL REST CAM FOLLOWER
Price
N/A
23
TOOL REST ADJ. HANDLE M8-1.25 X 20
Price
N/A
24
HEX WRENCH 3MM
Price
N/A
25
HEX WRENCH 6MM
Price
N/A
26
HEX WRENCH 8MM
Price
N/A
27
LIVE CENTER MT#2
Price
N/A
28
FENDER WASHER 8MM
Price
N/A
29
MOTOR CARBON BRUSH ( 2-PC SET)
Price
$8.75
30
TAILSTOCK LEADSCREW
Price
N/A
31
TAILSTOCK QUILL
Price
N/A
32
Price
$74.75
33
TAILSTOCK LEVER
Price
N/A
34
HANDWHEEL 83MM X 15MM BORE
Price
N/A
35
HANDWHEEL HANDLE 6MM X 50MM
Price
N/A
36
SHOULDER SCREW M6-1 X 53
Price
N/A
37
TAILSTOCK CLAMP BOLT M10-1.5 X 30MM
Price
N/A
39
RETAINING PLATE
Price
N/A
40
CAP SCREW M10-1.5 X 12
Price
N/A
41
LOCK PLATE
Price
N/A
42
LOCK NUT M10-1.5
Price
N/A
43
CAP SCREW M8-1.25 X 16
Price
N/A
44
MOTOR CORD 18G 3W 16"
Price
N/A
45
SWITCH CORD 18G 3W 22"
Price
N/A
46
Price
$1.90
47
CAP SCREW M8-1.25 X 12
Price
N/A
48
MOTOR MOUNT PLATE
Price
N/A
49
FLAT WASHER 6MM
Price
N/A
50
LOCK WASHER 6MM
Price
N/A
51
MOTOR PULLEY V1
Price
N/A
52
DRIVE PULLEY V1
Price
N/A
53
POLY V-BELT 3V X 7 X 630MM
Price
$13.15
54
SWITCH BOX LATCH BOLT M4-.7 X 5
Price
N/A
55
FLAT WASHER 4MM
Price
N/A
56
SWITCH BOX LATCH
Price
N/A
57
FLAT WASHER 4MM
Price
N/A
59
PHLP HD SCR M4-.7 X 8
Price
N/A
60
SWITCH BOX PLATE
Price
N/A
61
HINGE PIN
Price
N/A
62
POWER CORD 18G 3W 72" 5-15P
Price
N/A
63
CIRCUIT BREAKER 4A GENERAL
Price
$7.20
64
Price
$79.10
65
PHLP HD SCR M4-.7 X 6
Price
N/A
66
*DISCD*SWITCH BOX V1
Price
N/A
67
POTENTIOMETER B103
Price
N/A
68
TOGGLE SWITCH RU CB-8 E19 4417
Price
N/A
69
SET SCREW M6-1 X 12
Price
N/A
70
Price
$225.40
71
RUBBER FOOT M8-1.25 X 15
Price
N/A
72
LOCK NUT M8-1.25
Price
N/A
73
EXT RETAINING RING 10MM
Price
N/A
74
FLAT WASHER 8MM
Price
N/A
76
FLAT HD SCR M6-1 X 12
Price
N/A
77
STRAIN RELIEF 5/16" SNAP-IN ST
Price
N/A
78
STRAIN RELIEF 1/4" SNAP-IN ST
Price
N/A
79
FUSE 10A 250V FAST-ACTING GLASS
Price
N/A
80
DIGITAL DISPLAY COVER
Price
N/A
81
DIGITAL DISPLAY PLATE
Price
N/A
82
PHLP HD SCR M4-.7 X 16
Price
N/A
83
TRANSFORMER 2W 110/230V-8.1/9.1V
Price
N/A
84
KNOCKOUT BAR
Price
N/A
85
Price
$16.40
86

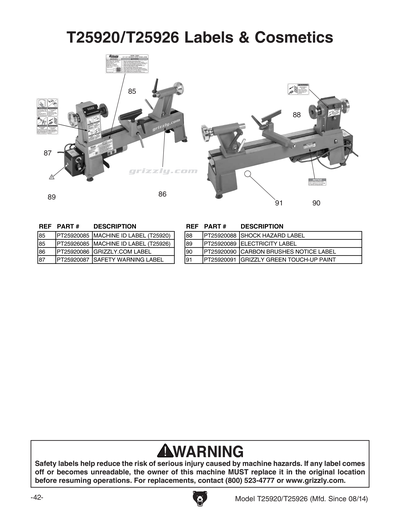

GRIZZLY.COM LABEL
Price
N/A
87
SAFETY WARNING LABEL
Price
N/A
88
SHOCK HAZARD 2.8W X 1.5H
Price
N/A
89
ELECTRICITY 0.7W X 0.6H
Price
N/A
90
CARBON BRUSHES NOTICE LABEL
Price
N/A
91
N/S GRIZZLY GREEN G1023S
Price
N/A
92
MAN T25920 T25926 MFD-08.14-02.16 V1.12.
Price
N/A
93
Price
$1.49
MAN
MAN T25920 T25926 MFD-08.14-02.16 V1.12.
Price
N/A
PKG1
Price
$27.00
