Parts for T25942 - Pro Sanding Roller with Accessories

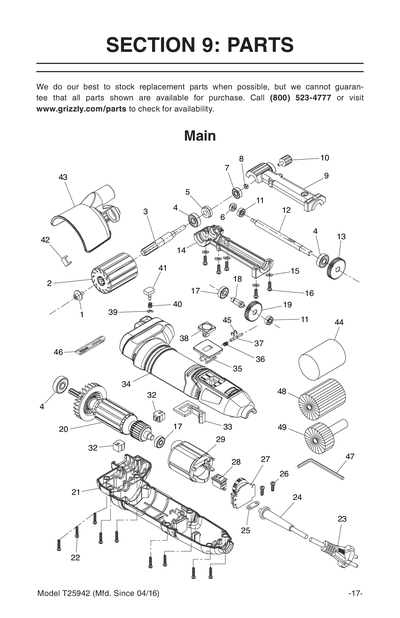

Part Diagram for T25942
Part Diagram for T25942
Part Diagram for T25942
Part Diagram for T25942

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

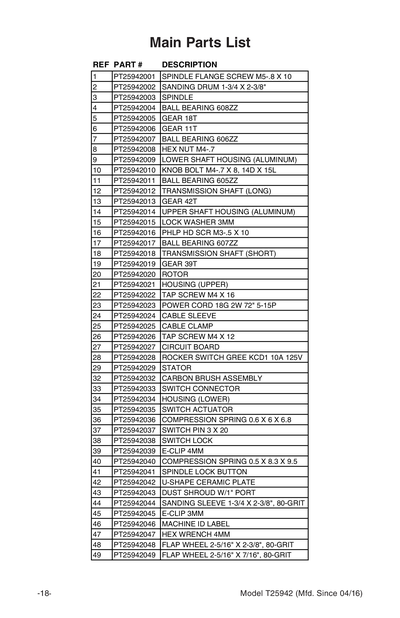

Ref #
Part #
Description
1
*DISCD*SPINDLE FLANGE SCREW M5-.8 X 10
Price
$1.49
2
*DISCD*SANDING DRUM 1-3/4 X 2-3/8"
Item is no longer available
Price
N/A
3
*DISCD*SPINDLE
Price
$4.05
4
Bearing - 22mm x 8mm
Price
N/A
5
*DISCD*GEAR 18T
Item is no longer available
Price
N/A
6
*DISCD*GEAR 11T
Item is no longer available
Price
N/A
7
BALL BEARING 606ZZ
Price
N/A
8
HEX NUT M4-.7
Price
N/A
9
*DISCD*LOWER SHAFT HOUSING (ALUMINUM)
Item is no longer available
Price
N/A
10
*DISCD*KNOB BOLT M4-.7 X 8, 14D X 15L
Price
$1.49
11
BALL BEARING 605ZZ
Price
N/A
12
*DISCD*TRANSMISSION SHAFT (LONG)
Item is no longer available
Price
N/A
13
*DISCD*GEAR 42T
Item is no longer available
Price
N/A
14
*DISCD*UPPER SHAFT HOUSING (ALUMINUM)
Item is no longer available
Price
N/A
15
LOCK WASHER 3MM
Price
N/A
16
PHLP HD SCR M3-.5 X 10
Price
N/A
17
BALL BEARING 607ZZ
Price
N/A
18
*DISCD*TRANSMISSION SHAFT (SHORT)
Item is no longer available
Price
N/A
19
*DISCD*GEAR 39T
Item is no longer available
Price
N/A
20
*DISCD*ROTOR
Item is no longer available
Price
N/A
21
*DISCD*HOUSING (UPPER)
Item is no longer available
Price
N/A
22
TAP SCREW M4 X 16
Price
N/A
23
*DISCD*POWER CORD 18G 2W 72" 5-15P
Item is no longer available
Price
N/A
24
*DISCD*CABLE SLEEVE
Item is no longer available
Price
N/A
25
*DISCD*CABLE CLAMP
Item is no longer available
Price
N/A
26
TAP SCREW M4 X 12
Price
N/A
27
*DISCD*CIRCUIT BOARD
Item is no longer available
Price
N/A
28
*DISCD*ROCKER SWITCH GREE KCD1 10A 125V
Item is no longer available
Price
N/A
29
*DISCD*STATOR
Item is no longer available
Price
N/A
32
*DISCD*CARBON BRUSH ASSEMBLY
Item is no longer available
Price
N/A
33
*DISCD*SWITCH CONNECTOR
Item is no longer available
Price
N/A
34
*DISCD*HOUSING (LOWER)
Item is no longer available
Price
N/A
35
*DISCD*SWITCH ACTUATOR
Item is no longer available
Price
N/A
36
*DISCD*COMPRESSION SPRING 0.6 X 6 X 6.8
Item is no longer available
Price
N/A
37
*DISCD*SWITCH PIN 3 X 20
Item is no longer available
Price
N/A
38
*DISCD*SWITCH LOCK
Item is no longer available
Price
N/A
39
E-CLIP 4MM
Price
N/A
40
*DISCD*COMPRESSION SPRING 0.5 X 8.3 X 9.
Item is no longer available
Price
N/A
41
*DISCD*SPINDLE LOCK BUTTON
Item is no longer available
Price
N/A
42
*DISCD*U-SHAPE CERAMIC PLATE
Item is no longer available
Price
N/A
43
*DISCD*DUST SHROUD W/1" PORT
Price
$2.90
44
*DISCD*SANDING SLEEVE 1-3/4 X 2-3/8", 80
Item is no longer available
Price
N/A
45
E-CLIP 3MM
Price
N/A
46
MACHINE ID LABEL
Item is no longer available
Price
N/A
47
HEX WRENCH 4MM
Price
N/A
48
*DISCD*FLAP WHEEL 2-5/16" X 2-3/8", 80-G
Item is no longer available
Price
N/A
49
*DISCD*FLAP WHEEL 2-5/16" X 7/16", 80-GR
Item is no longer available
Price
N/A
MAN
MANUAL T25942 MFD-04.16 V1.04.16
Item is no longer available
Price
N/A
