Parts for T26413 - 1 Ton Arbor Press

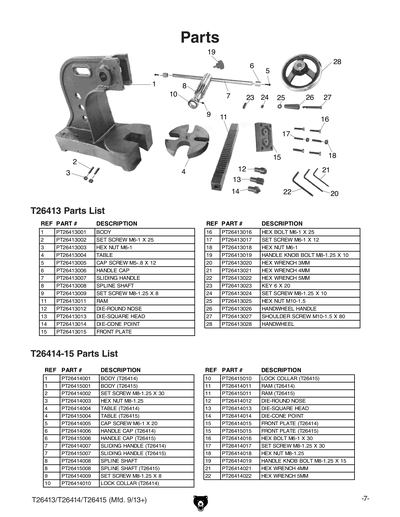

Part Diagram for T26413
Part Diagram for T26413

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BODY
Price
$133.70
2
SET SCREW M6-1 X 25
Price
N/A
3
HEX NUT M6-1
Price
N/A
4
TABLE
Price
$15.20
5
CAP SCREW M5-.8 X 12
Price
N/A
6
HANDLE CAP
Price
$1.90
7
SLIDING HANDLE
Price
$31.25
8
SPLINE SHAFT
Price
$36.60
9
SET SCREW M8-1.25 X 8
Price
N/A
10
LOCK COLLAR
Price
$13.70
11
RAM
Price
$29.45
12
DIE-ROUND NOSE
Price
$17.85
12A
DIE SET 3-PC
Price
$22.35
13
***USE PT26413012A***
Price
$17.85
14
***USE PT26413012A***
Price
$17.85
15
FRONT PLATE
Price
$22.35
16
HEX BOLT M6-1 X 25
Price
N/A
17
SET SCREW M6-1 X 12
Price
N/A
18
HEX NUT M6-1
Price
N/A
19
HANDLE KNOB BOLT M8-1.25 X 10
Price
$11.20
20
HEX WRENCH 3MM
Price
N/A
21
HEX WRENCH 4MM
Price
N/A
22
HEX WRENCH 5MM
Price
N/A
23
KEY 6 X 20
Price
$5.45
24
SET SCREW M8-1.25 X 10
Price
N/A
25
HEX NUT M10-1.5
Price
N/A
26
HANDWHEEL HANDLE
Price
$9.85
27
SHOULDER SCREW M10-1.5 X 80
Price
$6.90
28
HANDWHEEL
Price
$29.15
MAN
MANUAL T26413-15 MFD-11/13 V1.11.13
Price
$14.65
