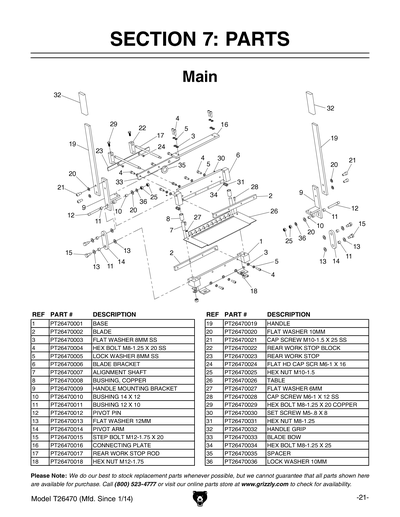

Parts for T26470 12" Hand Shear Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
BLADE
3
Now: PW01M
FLAT WASHER 8MM
Price
N/A
4
HEX BOLT M8-1.25 X 20 SS
5
LOCK WASHER 8MM
Price
N/A
6
BLADE BRACKET
7
ALIGNMENT SHAFT
8
BUSHING, COPPER
9
HANDLE MOUNTING BRACKET
10
BUSHING 14 X 12
11
BUSHING 12 X 10
12
PIVOT PIN
13
Now: PW06M
FLAT WASHER 12MM
Price
N/A
14
PIVOT ARM
15
STEP BOLT M12-1.75 X 20
16
CONNECTING PLATE
17
REAR WORK STOP ROD
18
Now: PN09M
HEX NUT M12-1.75
Price
N/A
19
HANDLE LEVER
20
Now: PW04M
FLAT WASHER 10MM
Price
N/A
21
CAP SCREW M10-1.5 X 25 SS
22
REAR WORK STOP BLOCK
23
REAR WORK STOP
24
FLAT HD CAP SCR M6-1 X 16
Price
N/A
25
Now: PN02M
HEX NUT M10-1.5
Price
N/A
26
TABLE
27
Now: PW03M
FLAT WASHER 6MM
Price
N/A
28
CAP SCREW M6-1 X 12 SS
Price
N/A
29
HEX BOLT M8-1.25 X 20 (COPPER)
Price
N/A
30
SET SCREW M5-.8 X 8
Price
N/A
31
Now: PN03M
HEX NUT M8-1.25
Price
N/A
32
HANDLE GRIP
33
BLADE BOW
34
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
35
SPACER
36
LOCK WASHER 10MM
Price
N/A

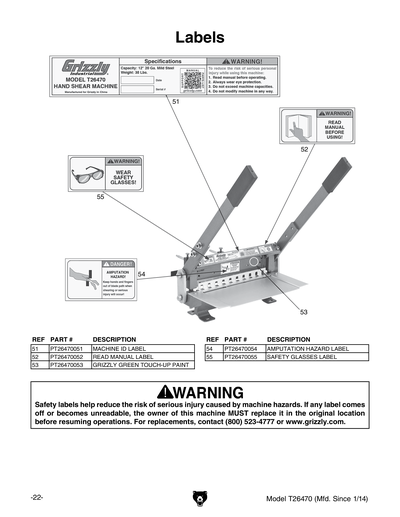

51
MACHINE ID LABEL
52
READ MANUAL LABEL
53
N/S GRIZZLY GREEN G1023S
Price
N/A
54
AMPUTATION HAZARD LABEL
55
SAFETY GLASSES LABEL
MAN
MANUAL T26470 MFD-12/13+ V1.02.14
