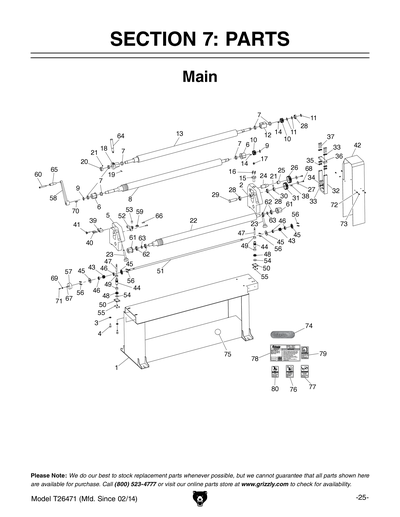

Parts for T26471 51" Slip Roll

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
2
ROLLER SUPPORT (LEFT)
3
Now: PW06M
FLAT WASHER 12MM
Price
N/A
4
CAP SCREW M12-1.75 X 30
Price
N/A
5
CAP SCREW M12-1.75 X 30
Price
N/A
6
LOWER ROLLER BUSHING
7
ROLLER BUSHING (COPPER)
8
ROLLER (LOWER)
9
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
10
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
11
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
12
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
13
ROLLER (UPPER)
14
KEY 6 X 6 X 22
Price
N/A
15
KEY 6 X 6 X 22
Price
N/A
16
CAP SCREW M6-1 X 20
Price
N/A
17
GREASE FITTING M10 X 1 STRAIGHT
Price
N/A
18
GREASE FITTING M10 X 1 STRAIGHT
Price
N/A
19
ROLL PIN 6 X 30
Price
N/A
20
ROLL PIN 6 X 30
Price
N/A
21
SET SCREW M8-1.25 X 10
Price
N/A
22
SET SCREW M8-1.25 X 10
Price
N/A
23
KNOB BOLT M16-2 X 90, 130L
24
SHAFT
25
NEEDLE BEARING 7943/25
26
GEAR 30T
27
FENDER WASHER 8MM
Price
N/A
28
BALL BEARING 6205ZZ
Price
N/A
29
BALL BEARING 6205ZZ
Price
N/A
30
LOCK COLLAR
31
GEAR 30T W/KEYWAY
32
GEAR COVER BRACKET
33
Now: PW04M
FLAT WASHER 10MM
Price
N/A
34
CAP SCREW M10-1.5 X 35
Price
N/A
35
Now: PN02M
HEX NUT M10-1.5
Price
N/A
36
Now: PN02M
HEX NUT M10-1.5
Price
N/A
37
CAP SCREW M10-1.5 X 50
Price
N/A
38
CAP SCREW M10-1.5 X 50
Price
N/A
39
LEVER BRACKET
40
CAP SCREW M8-1.25 X 35
Price
N/A
41
KNOB BOLT M8-1.25 X 30, 45L
42
GEAR COVER
43
WORM
44
WORM GEAR
45
SHAFT END BRACKET
46
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
47
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
48
Now: P8104
THRUST BEARING 8104
Price
N/A
49
Now: P8104
THRUST BEARING 8104
Price
N/A
50
WORM GEAR PLATE
51
CONNECTING ROTATING SHAFT
52
TAPER BRACKET
53
TAPER BRACKET PIN
54
SPACER
55
FLAT HD CAP SCR M6-1 X 12
Price
N/A
56
CAP SCREW M5-.8 X 10
Price
N/A
57
CAP SCREW M5-.8 X 10
Price
N/A
58
CRANK
59
TAPER ROLLER
60
SHOULDER BOLT M10-1.5 X 15, 96L
61
REAR ROLLER BUSHING
62
BALL BEARING 6005ZZ
Price
N/A
63
Now: PW19M
FLAT WASHER 25MM
Price
N/A
64
Now: PW19M
FLAT WASHER 25MM
Price
N/A
65
CRANK HANDLE
66
CAP SCREW M8-1.25 X 20
Price
N/A
67
KEY 4 X 4 X 18
Price
N/A
68
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
69
Now: PW03M
FLAT WASHER 6MM
Price
N/A
70
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
71
CAP SCREW M6-1 X 30
Price
N/A
72
Now: PW03M
FLAT WASHER 6MM
Price
N/A
73
CAP SCREW M6-1 X 12
Price
N/A
74
Now: H4609
Oblong Nameplate-Small
Price
N/A
75
N/S GRIZZLY GREEN G1023S
Price
N/A
76
SLIP ROLL WARNING 2W X 3.3H
Price
N/A
77
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
78
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
79
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
80
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
MAN
MANUAL T26471 MFD-12/13+ V1.12.13
P
GREASE FITTING M10 X 1 STRAIGHT
