Parts for T26471 - 51" Slip Roll

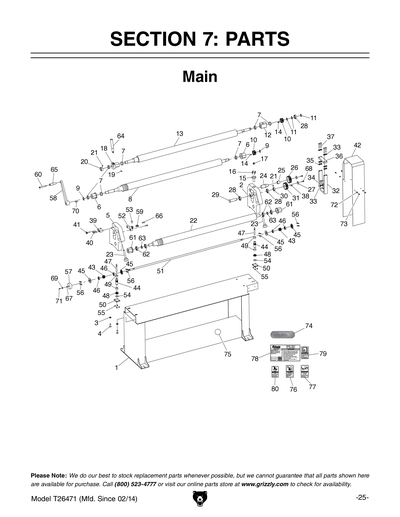

Part Diagram for T26471
Part Diagram for T26471
Part Diagram for T26471
Part Diagram for T26471

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$1,078.15
2
Price
$698.65
3
FLAT WASHER 12MM
Price
N/A
4
CAP SCREW M12-1.75 X 30
Price
N/A
5
CAP SCREW M12-1.75 X 30
Price
N/A
6
Price
$43.15
7
ROLLER BUSHING (COPPER)
Price
$15.15
8
Price
$914.25
9
EXT RETAINING RING 30MM
Price
N/A
10
EXT RETAINING RING 30MM
Price
N/A
11
EXT RETAINING RING 25MM
Price
N/A
12
EXT RETAINING RING 25MM
Price
N/A
13
Price
$970.35
14
KEY 6 X 6 X 22
Price
N/A
15
KEY 6 X 6 X 22
Price
N/A
16
CAP SCREW M6-1 X 20
Price
N/A
17
GREASE FITTING M10 X 1 STRAIGHT
Price
N/A
18
GREASE FITTING M10 X 1 STRAIGHT
Price
N/A
19
ROLL PIN 6 X 30
Price
N/A
20
ROLL PIN 6 X 30
Price
N/A
21
SET SCREW M8-1.25 X 10
Price
N/A
22
SET SCREW M8-1.25 X 10
Price
N/A
23
KNOB BOLT M16-2 X 90, 130L
Price
$27.00
24
Price
$17.25
25
Price
$15.15
26
Price
$60.40
27
FENDER WASHER 8MM
Price
N/A
28
BALL BEARING 6205ZZ
Price
N/A
29
BALL BEARING 6205ZZ
Price
N/A
30
Price
$6.50
31
Price
$60.40
32
Price
$64.70
33
FLAT WASHER 10MM
Price
N/A
34
CAP SCREW M10-1.5 X 35
Price
N/A
35
HEX NUT M10-1.5
Price
N/A
36
HEX NUT M10-1.5
Price
N/A
37
CAP SCREW M10-1.5 X 50
Price
N/A
38
CAP SCREW M10-1.5 X 50
Price
N/A
39
Price
$29.15
40
CAP SCREW M8-1.25 X 35
Price
N/A
41
KNOB BOLT M8-1.25 X 30, 45L
Price
$9.00
42
Price
$86.25
43
Price
$43.15
44
Price
$49.65
45
Price
$8.65
46
Bearing - 35mm x 17mm
Price
N/A
47
Bearing - 35mm x 17mm
Price
N/A
48
THRUST BEARING 8104
Price
N/A
49
THRUST BEARING 8104
Price
N/A
50
Price
$8.65
51
CONNECTING ROTATING SHAFT
Price
$53.95
52
Price
$53.95
53
Price
$8.65
54
Price
$6.50
55
FLAT HD CAP SCR M6-1 X 12
Price
N/A
56
CAP SCREW M5-.8 X 10
Price
N/A
57
CAP SCREW M5-.8 X 10
Price
N/A
58
Price
$51.75
59
Price
$10.85
60
SHOULDER BOLT M10-1.5 X 15, 96L
Price
$9.50
61
Price
$38.85
62
BALL BEARING 6005ZZ
Price
N/A
63
FLAT WASHER 25MM
Price
N/A
64
FLAT WASHER 25MM
Price
N/A
65
Price
$8.65
66
CAP SCREW M8-1.25 X 20
Price
N/A
67
KEY 4 X 4 X 18
Price
N/A
68
HEX BOLT M8-1.25 X 16
Price
N/A
69
FLAT WASHER 6MM
Price
N/A
70
KEY 4 X 4 X 20
Price
N/A
71
CAP SCREW M6-1 X 30
Price
N/A
72
FLAT WASHER 6MM
Price
N/A
73
CAP SCREW M6-1 X 12
Price
N/A
74
Oblong Nameplate-Small
Price
N/A
75
N/S GRIZZLY GREEN G1023S
Price
N/A
76
SLIP ROLL WARNING 2W X 3.3H
Price
N/A
77
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
78
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
79
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
80
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
MAN
MANUAL T26471 MFD-12/13+ V1.12.13
Price
$14.65
P
GREASE FITTING M10 X 1 STRAIGHT
Price
$4.35
