Parts for T26472Z - 12" 3-in-1 Sheet Metal Machine

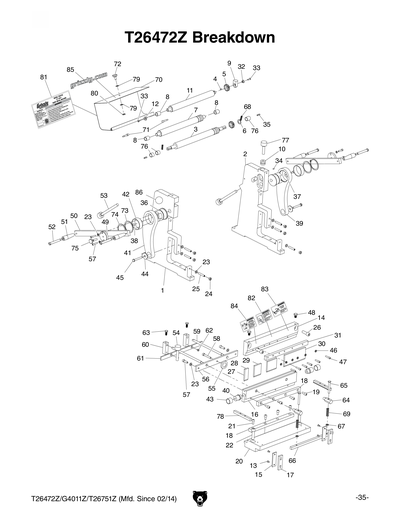

Part Diagram for T26472Z
Part Diagram for T26472Z
Part Diagram for T26472Z
Part Diagram for T26472Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

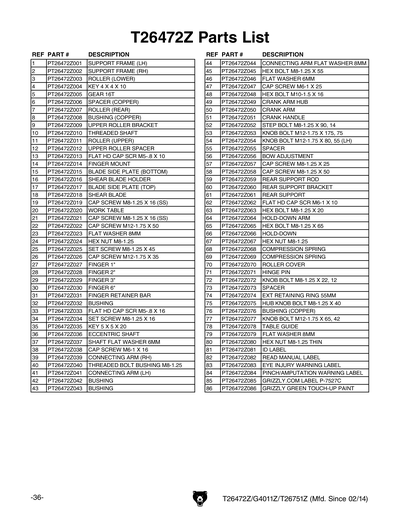

Ref #
Part #
Description
1
SUPPORT FRAME (LH)
Price
$224.25
2
SUPPORT FRAME (RH)
Price
$224.25
3
ROLLER (LOWER)
Price
$77.65
4
KEY 4 X 4 X 10
Price
N/A
5
GEAR 16T
Price
$27.00
6
SPACER (COPPER)
Price
$4.35
7
ROLLER (REAR)
Price
$53.95
8
BUSHING (COPPER)
Price
$8.95
9
UPPER ROLLER BRACKET
Price
$15.15
10
THREADED SHAFT
Price
$6.50
11
ROLLER (UPPER)
Price
$53.95
12
UPPER ROLLER SPACER
Price
$4.35
13
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
14
FINGER MOUNT
Price
$110.00
15
BLADE SIDE PLATE (BOTTOM)
Price
$10.85
16
SHEAR BLADE HOLDER
Price
$135.90
17
BLADE SIDE PLATE (TOP)
Price
$8.65
18
SHEAR BLADE
Price
$66.90
19
CAP SCREW M8-1.25 X 16 (SS)
Price
$2.20
20
WORK TABLE
Price
$150.95
21
CAP SCREW M8-1.25 X 16 (SS)
Price
N/A
22
CAP SCREW M12-1.75 X 50
Price
N/A
23
FLAT WASHER 8MM
Price
N/A
24
HEX NUT M8-1.25
Price
N/A
25
SET SCREW M8-1.25 X 45
Price
N/A
26
CAP SCREW M12-1.75 X 35
Price
N/A
27
FINGER 1"
Price
$13.50
28
FINGER 2"
Price
$21.60
29
FINGER 3"
Price
$29.00
30
FINGER 6"
Price
$43.15
31
FINGER RETAINER BAR
Price
$34.50
32
BUSHING
Price
$4.35
33
FLAT HD CAP SCR M5-.8 X 16
Price
N/A
34
SET SCREW M8-1.25 X 16
Price
N/A
35
KEY 5 X 5 X 20
Price
N/A
36
ECCENTRIC SHAFT
Price
$60.40
37
FLAT WASHER 7MM
Price
N/A
38
CAP SCREW M6-1 X 16
Price
N/A
39
CONNECTING ARM (RH)
Price
$49.65
40
THREADED BOLT BUSHING M8-1.25
Price
$8.65
41
CONNECTING ARM (LH)
Price
$49.65
42
BUSHING
Price
$8.65
43
BUSHING
Price
$4.35
44
FLAT WASHER 10MM
Price
N/A
45
HEX BOLT M8-1.25 X 55
Price
N/A
46
FLAT WASHER 6MM
Price
N/A
47
CAP SCREW M6-1 X 25
Price
N/A
48
HEX BOLT M10-1.5 X 16
Price
N/A
49
CRANK ARM HUB
Price
$6.50
50
CRANK ARM
Price
$28.10
51
CRANK HANDLE
Price
$9.00
52
STEP BOLT M8-1.25 X 90, 14
Price
$11.90
53
KNOB BOLT M12-1.75 X 175, 75
Price
$32.40
54
KNOB BOLT M12-1.75 X 80, 55 (LH)
Price
$11.90
55
SPACER
Price
$4.35
56
BOW ADJUSTMENT
Price
$17.25
57
CAP SCREW M8-1.25 X 25
Price
N/A
58
CAP SCREW M8-1.25 X 50
Price
N/A
59
REAR SUPPORT ROD
Price
$11.90
60
REAR SUPPORT BRACKET
Price
$15.85
61
REAR SUPPORT
Price
$13.70
62
FLAT HD CAP SCR M6-1 X 10
Price
N/A
63
HEX BOLT M8-1.25 X 20
Price
N/A
64
HOLD-DOWN ARM
Price
$4.35
65
HEX BOLT M8-1.25 X 65
Price
N/A
66
HOLD-DOWN
Price
$12.95
67
HEX NUT M8-1.25
Price
N/A
68
COMPRESSION SPRING
Price
$6.15
69
COMPRESSION SPRING
Price
$4.35
70
ROLLER COVER
Price
$43.15
71
HINGE PIN
Price
$4.35
72
KNOB BOLT M8-1.25 X 22, 12
Price
$4.35
73
SPACER
Price
$4.35
74
EXT RETAINING RING 55MM
Price
N/A
75
HUB KNOB BOLT M8-1.25 X 40
Price
$9.00
76
BUSHING (COPPER)
Price
$6.15
77
KNOB BOLT M12-1.75 X 65, 42
Price
$7.95
78
TABLE GUIDE
Price
$12.95
79
FLAT WASHER 8MM
Price
N/A
80
HEX NUT M8-1.25 THIN
Price
N/A
81
ID LABEL
Price
$9.40
82
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
83
SAFETY GLASSES 3.8W X 2H
Price
N/A
84
PINCH/SHEAR INJURY 3.8W X 2H
Price
N/A
85
GRIZZLY.COM LABEL 6.75",BEIGE
Price
N/A
86
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL P4011Z-T26751 MFD-12/13+ V1.01.14
Price
N/A
P
FLAT HD CAP SCR M6-1 X 10
Price
$2.25
