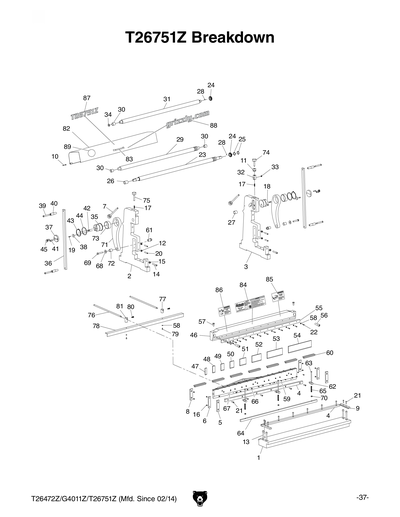

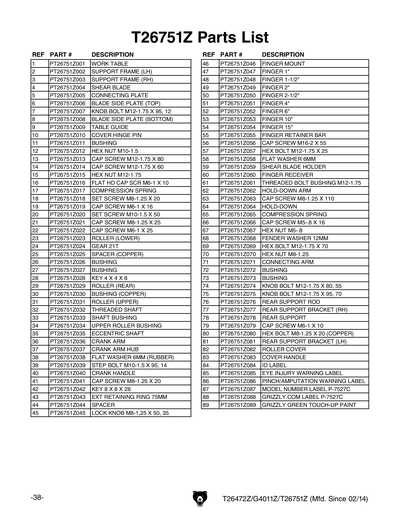

Parts for T26751Z 42" 3-in-1 Sheet Metal Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
WORK TABLE
Item is no longer available
Price
N/A
2
SUPPORT FRAME (LH)
Item is no longer available
Price
N/A
3
SUPPORT FRAME (RH)
Item is no longer available
Price
N/A
4
SHEAR BLADE
Item is no longer available
Price
N/A
5
CONNECTING PLATE
Item is no longer available
Price
N/A
6
BLADE SIDE PLATE (TOP)
Item is no longer available
Price
N/A
7
KNOB BOLT M12-1.75 X 95, 12
Item is no longer available
Price
N/A
8
BLADE SIDE PLATE (BOTTOM)
Item is no longer available
Price
N/A
9
TABLE GUIDE
Item is no longer available
Price
N/A
10
COVER HINGE PIN
Item is no longer available
Price
N/A
11
BUSHING
Item is no longer available
Price
N/A
12
Now: PN02M
HEX NUT M10-1.5
Price
N/A
13
CAP SCREW M12-1.75 X 80
Price
N/A
14
CAP SCREW M12-1.75 X 60
Price
N/A
15
Now: PN09M
HEX NUT M12-1.75
Price
N/A
16
FLAT HD CAP SCR M6-1 X 10
Price
N/A
17
COMPRESSION SPRING
Item is no longer available
Price
N/A
18
SET SCREW M8-1.25 X 20
Price
N/A
19
CAP SCREW M6-1 X 16
Price
N/A
20
SET SCREW M10-1.5 X 50
Price
N/A
21
CAP SCREW M8-1.25 X 25
Price
N/A
22
CAP SCREW M6-1 X 25
Price
N/A
23
ROLLER (LOWER)
Item is no longer available
Price
N/A
24
GEAR 21T
25
SPACER (COPPER)
Item is no longer available
Price
N/A
26
BUSHING
27
BUSHING
Item is no longer available
Price
N/A
28
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
29
ROLLER (REAR)
Item is no longer available
Price
N/A
30
BUSHING (COPPER)
31
ROLLER (UPPER)
Item is no longer available
Price
N/A
32
THREADED SHAFT
Item is no longer available
Price
N/A
33
SHAFT BUSHING
Item is no longer available
Price
N/A
34
UPPER ROLLER BUSHING
Item is no longer available
Price
N/A
35
ECCENTRIC SHAFT
Item is no longer available
Price
N/A
36
CRANK ARM
37
CRANK ARM HUB
Item is no longer available
Price
N/A
38
Now: PW03M
FLAT WASHER 6MM
Price
N/A
39
STEP BOLT M10-1.5 X 95, 14
40
CRANK HANDLE
41
CAP SCREW M8-1.25 X 20
Price
N/A
42
*DISCD*KEY 8 X 8 X 28
Price
N/A
43
Now: PR97M
EXT RETAINING RING 75MM
Price
N/A
44
SPACER
Item is no longer available
Price
N/A
45
LOCK KNOB M8-1,25 X 50, 35
46
FINGER MOUNT
Item is no longer available
Price
N/A
47
FINGER 1"
Item is no longer available
Price
N/A
48
FINGER 1-1/2"
Item is no longer available
Price
N/A
49
FINGER 2"
50
FINGER 2-1/2"
Item is no longer available
Price
N/A
51
FINGER 4"
Item is no longer available
Price
N/A
52
FINGER 6"
Item is no longer available
Price
N/A
53
FINGER 10"
Item is no longer available
Price
N/A
54
FINGER 15"
Item is no longer available
Price
N/A
55
FINGER RETAINER BAR
Item is no longer available
Price
N/A
56
CAP SCREW M16-2 X 55
Price
N/A
57
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
58
Now: PW03M
FLAT WASHER 6MM
Price
N/A
59
SHEAR BLADE HOLDER
Item is no longer available
Price
N/A
60
FINGER RECEIVER
Item is no longer available
Price
N/A
61
THREADED BOLT BUSHING M12-1.75
Item is no longer available
Price
N/A
62
HOLD-DOWN ARM
Item is no longer available
Price
N/A
63
CAP SCREW M8-1.25 X 110
Price
N/A
64
HOLD-DOWN
Item is no longer available
Price
N/A
65
COMPRESSION SPRING
Item is no longer available
Price
N/A
66
CAP SCREW M5-.8 X 16
Price
N/A
67
Now: PN06M
HEX NUT M5-.8
Price
N/A
68
FENDER WASHER 12MM
Price
N/A
69
HEX BOLT M12-1.75 X 70
Price
N/A
70
Now: PN03M
HEX NUT M8-1.25
Price
N/A
71
CONNECTING ARM
Item is no longer available
Price
N/A
72
BUSHING
Item is no longer available
Price
N/A
73
BUSHING
Item is no longer available
Price
N/A
74
KNOB BOLT M12-1.75 X 80, 55
Item is no longer available
Price
N/A
75
KNOB BOLT M12-1.75 X 95, 70
Item is no longer available
Price
N/A
76
REAR SUPPORT ROD
77
REAR SUPPORT BRACKET (RH)
78
REAR SUPPORT
79
CAP SCREW M6-1 X 10
Price
N/A
80
HEX BOLT M8-1.25 X 20 (COPPER)
Price
N/A
81
REAR SUPPORT BRACKET (LH)
82
ROLLER COVER
83
COVER HANDLE
84
ID LABEL
Item is no longer available
Price
N/A
85
SAFETY GLASSES 3.8W X 2H
Price
N/A
86
PINCH/SHEAR INJURY 3.8W X 2H
Price
N/A
87
MODEL NUMBER LABEL P-7527C
88
GRIZZLY.COM LABEL 8.5",BEIGE
Price
N/A
89
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL P4011Z-T26751 MFD-12/13+ V1.01.14
Price
N/A
