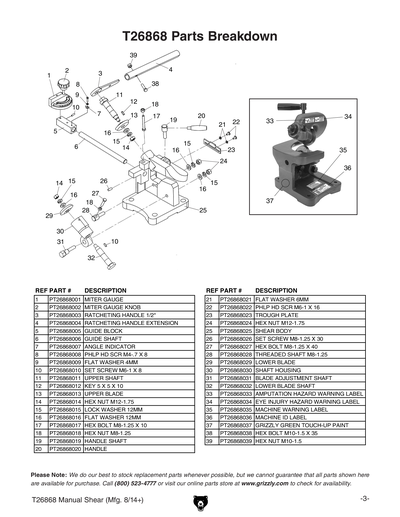

Parts for T26868 Manual Shear with Miter Gauge

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MITER GAUGE
2
MITER GAUGE KNOB
3
RATCHETING HANDLE 1/2"
4
RATCHETING HANDLE EXTENSION
5
GUIDE BLOCK
6
GUIDE SHAFT
7
ANGLE INDICATOR
8
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
9
Now: PW05M
FLAT WASHER 4MM
Price
N/A
10
SET SCREW M6-1 X 8
Price
N/A
11
UPPER SHAFT
12
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
13
UPPER BLADE
14
Now: PN09M
HEX NUT M12-1.75
Price
N/A
15
LOCK WASHER 12MM
Price
N/A
16
Now: PW06M
FLAT WASHER 12MM
Price
N/A
17
Now: PB17M
HEX BOLT M8-1.25 X 10
Price
N/A
18
Now: PN03M
HEX NUT M8-1.25
Price
N/A
19
HANDLE SHAFT
20
HANDLE
21
Now: PW03M
FLAT WASHER 6MM
Price
N/A
22
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
23
TROUGH PLATE
24
Now: PN09M
HEX NUT M12-1.75
Price
N/A
25
SHEAR BODY
26
SET SCREW M8-1.25 X 30
Price
N/A
27
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
28
THREADED SHAFT M8-1.25
29
LOWER BLADE
30
SHAFT HOUSING
31
BLADE ADJUSTMENT SHAFT
32
LOWER BLADE SHAFT
33
AMPUTATION HAZARD WARNING LABEL
Price
N/A
34
EYE INJURY HAZARD WARNING LABEL
Price
N/A
35
MACHINE WARNING LABEL
36
MACHINE ID LABEL
37
N/S GRIZZLY GREEN G1023S
Price
N/A
38
Now: PB14M
HEX BOLT M10-1.5 X 35
Price
N/A
39
Now: PN02M
HEX NUT M10-1.5
Price
N/A
MAN
MANUAL T26868 MFD-08.14 V1.10.14
