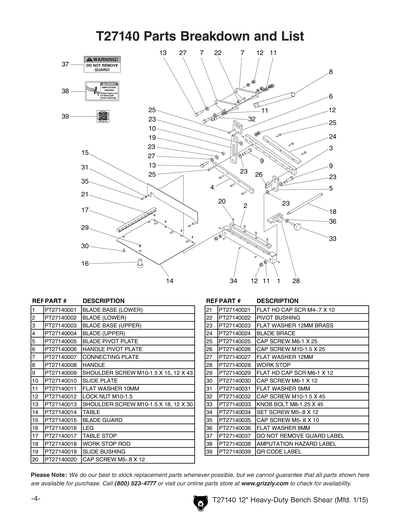

Parts for T27140 12" Heavy-Duty Bench Shear

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BLADE BASE (LOWER)
2
BLADE (LOWER)
3
BLADE BASE (UPPER)
4
BLADE (UPPER)
5
BLADE PIVOT PLATE
6
HANDLE PIVOT PLATE
7
CONNECTING PLATE
8
HANDLE
9
SHOULDER SCREW M10-1.5 X 15, 12 X 43
10
SLIDE PLATE
11
Now: PW04M
FLAT WASHER 10MM
Price
N/A
12
LOCK NUT M10-1.5
Price
N/A
13
SHOULDER SCREW M10-1.5 X 18, 12 X 30
14
TABLE
15
BLADE GUARD
16
LEG
17
TABLE STOP
18
WORK STOP ROD
19
SLIDE BUSHING
20
CAP SCREW M5-.8 X 12
Price
N/A
21
FLAT HD CAP SCR M4-.7 X 10
Price
N/A
22
PIVOT BUSHING
23
FENDER WASHER 12MM
Price
N/A
24
BLADE BRACE
25
CAP SCREW M6-1 X 25
Price
N/A
26
CAP SCREW M10-1.5 X 25
Price
N/A
27
Now: PW06M
FLAT WASHER 12MM
Price
N/A
28
WORK STOP
29
FLAT HD CAP SCR M6-1 X 12
Price
N/A
30
CAP SCREW M6-1 X 12
Price
N/A
31
Now: PW02M
FLAT WASHER 5MM
Price
N/A
32
CAP SCREW M10-1.5 X 45
Price
N/A
33
KNOB BOLT M8-1.25 X 45
34
SET SCREW M5-.8 X 12
Price
N/A
35
CAP SCREW M5-.8 X 10
Price
N/A
36
Now: PW01M
FLAT WASHER 8MM
Price
N/A
37
DO NOT REMOVE GUARD 2.1W X 1H
Price
N/A
38
AMPUTATION HAZARD LABEL
39
QR CODE LABEL
MAN
MANUAL T27140 MFD-11.14 V1.03.15
