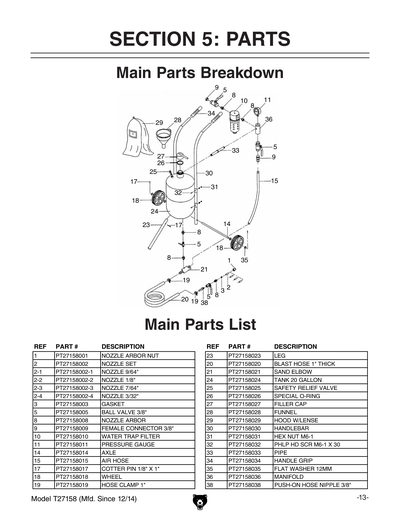

Parts for T27158 Portable Sandblaster, 20-Gallon

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
NOZZLE ARBOR NUT
2
Sandblast Tip Set for T27158
Price
N/A
2-1
NOZZLE 9/64"
2-2
NOZZLE 1/8"
2-3
NOZZLE 7/64"
2-4
NOZZLE 3/32"
3
GASKET
5
BALL VALVE 3/8"
8
NOZZLE ARBOR
9
FEMALE CONNECTOR 3/8"
10
WATER TRAP FILTER
11
PRESSURE GAUGE
14
AXLE
15
AIR HOSE
17
COTTER PIN 1/8" X 1"
18
WHEEL
19
HOSE CLAMP 1"
20
BLAST HOSE 1" THICK
21
SAND ELBOW
23
LEG
24
TANK 20 GALLON
25
SAFETY RELIEF VALVE
26
O-RING
27
FILLER CAP
28
FUNNEL
29
HOOD W/LENSE
30
HANDLEBAR
31
HEX NUT M6-1
32
PHLP HD SCR M6-1 X 30
33
PIPE
34
HANDLE GRIP
35
FLAT WASHER 12MM
36
MANIFOLD
38
PUSH-ON HOSE NIPPLE 3/8"
