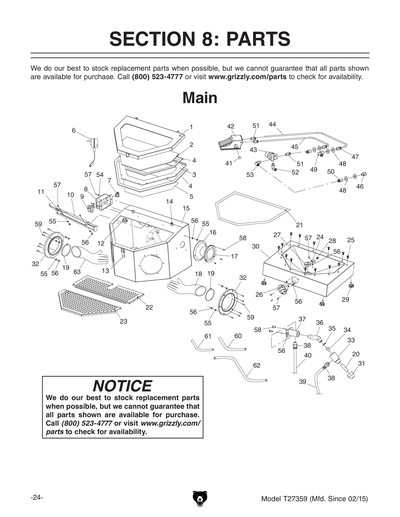

Parts for T27359 Mini Sandblasting Cabinet

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

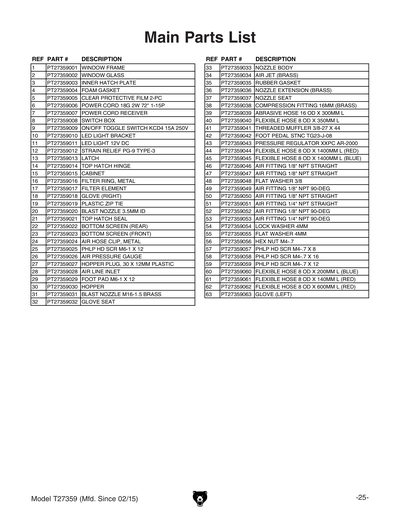

1
WINDOW FRAME
2
WINDOW GLASS
3
INNER HATCH PLATE
4
FOAM GASKET
5
CLEAR PROTECTIVE FILM
6
POWER CORD 18G 2W 72" 1-15P
7
POWER CORD RECEIVER
8
SWITCH BOX
9
ON/OFF TOGGLE SWITCH KCD4 15A 250V
10
LED LIGHT BRACKET
11
LED LIGHT 12V DC
12
STRAIN RELIEF PG-9 TYPE-3
13
LATCH
14
TOP HATCH HINGE
15
CABINET
16
FILTER RING, METAL
17
FILTER ELEMENT
18
Sandblasting Gloves
Price
N/A
18A
Sandblasting Gloves
Price
N/A
19
PLASTIC ZIP TIE
20
BLAST NOZZLE 3.5MM ID
21
TOP HATCH SEAL
22
BOTTOM SCREEN (REAR)
23
BOTTOM SCREEN (FRONT)
24
AIR HOSE CLIP, METAL
25
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
26
AIR PRESSURE GAUGE
27
HOPPER PLUG, 30 X 12MM PLASTIC
28
AIR LINE INLET
29
FOOT PAD M6-1 X 12
30
HOPPER
31
NOZZLE NUT M16-1.5 BRASS
32
GLOVE SEAT
33
NOZZLE BODY
34
AIR JET (BRASS)
35
RUBBER GASKET
36
NOZZLE EXTENSION, COPPER
37
NOZZLE SEAT
38
COMPRESSION FITTING 16MM COPPER
39
ABRASIVE HOSE 16 OD X 300MM L
40
FLEXIBLE HOSE 8 OD X 350MM L
41
THREADED MUFFLER 3/8-27 X 44
42
FOOT PEDAL STNC TG23-J-08
43
PRESSURE REGULATOR XXPC AR-2000
44
FLEXIBLE HOSE 8 OD X 1400MM L (RED)
45
FLEXIBLE HOSE 8 OD X 1400MM L (BLUE)
46
AIR FITTING 1/8" NPT STRAIGHT
47
AIR FITTING 1/8" NPT STRAIGHT
48
Now: PW02
FLAT WASHER 3/8
Price
N/A
49
AIR FITTING 1/8" NPT 90-DEG
50
AIR FITTING 1/8" NPT STRAIGHT
Price
N/A
51
AIR FITTING 1/4" NPT STRAIGHT
52
AIR FITTING 1/8" NPT 90-DEG
Price
N/A
53
AIR FITTING 1/4" NPT 90-DEG
54
LOCK WASHER 4MM
Price
N/A
55
Now: PW05M
FLAT WASHER 4MM
Price
N/A
56
Now: PN04M
HEX NUT M4-.7
Price
N/A
57
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
58
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
59
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
60
FLEXIBLE HOSE 8 OD X 200MM L (BLUE)
61
FLEXIBLE HOSE 8 OD X 140MM L (RED)
62
FLEXIBLE HOSE 8 OD X 600MM L (RED)
63
Sandblasting Gloves
Price
N/A

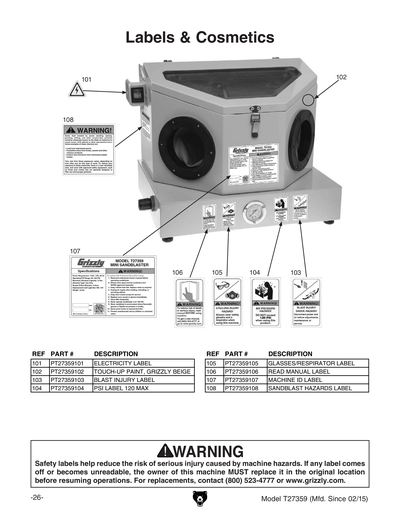

101
ELECTRICITY 0.7W X 0.6H
Price
N/A
102
BEIGE REF G0555
Price
N/A
103
BLAST INJURY LABEL
104
PSI LABEL 120 MAX
105
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
106
READ MANUAL 1.5W X 2.5H
Price
N/A
107
MACHINE ID LABEL
108
SANDBLAST HAZARDS LABEL
MAN
MANUAL T27359 MFD-05.16 V1.10.16
