Parts for T27417 - Oscillating Edge Belt and Spindle Sander

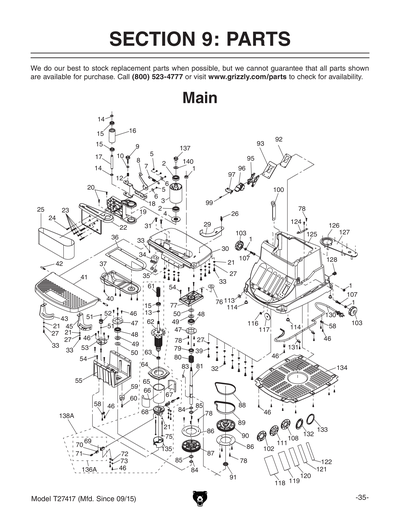

Part Diagram for T27417
Part Diagram for T27417
Part Diagram for T27417
Part Diagram for T27417
Part Diagram for T27417
Part Diagram for T27417
Part Diagram for T27417
Part Diagram for T27417

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

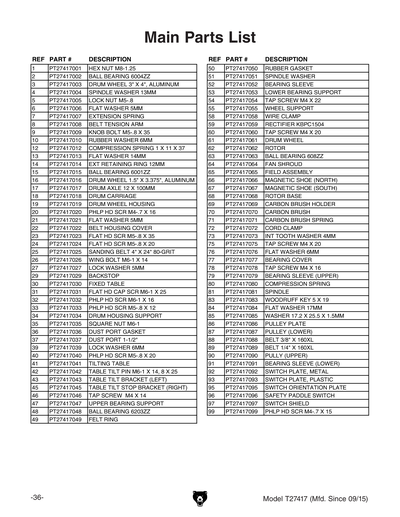

Ref #
Part #
Description
1
HEX NUT M8-1.25
Price
N/A
2
BALL BEARING 6004ZZ
Price
N/A
3
DRUM WHEEL 3" X 4", ALUMINUM
Price
$16.20
4
SPINDLE WASHER 13MM
Price
$2.90
5
LOCK NUT M5-.8
Price
N/A
6
FLAT WASHER 5MM
Price
N/A
7
EXTENSION SPRING
Price
$1.90
8
BELT TENSION ARM
Price
$6.15
9
KNOB BOLT M5-.8 X 35
Price
$1.90
10
RUBBER WASHER 6MM
Price
$1.90
12
COMPRESSION SPRING 1 X 11 X 37
Price
$1.90
13
FLAT WASHER 14MM
Price
N/A
14
EXT RETAINING RING 12MM
Price
N/A
15
BALL BEARING 6001ZZ
Price
N/A
16
DRUM WHEEL 1.5" X 3.375", ALUMINUM
Price
$6.15
17
DRUM AXLE 12 X 100MM
Price
$2.20
18
DRUM CARRIAGE
Price
$5.75
19
DRUM WHEEL HOUSING
Price
$14.40
20
PHLP HD SCR M4-.7 X 16
Price
N/A
21
FLAT WASHER 5MM
Price
N/A
22
BELT HOUSING COVER
Price
$9.40
23
FLAT HD SCR M5-.8 X 35
Price
$1.90
24
FLAT HD SCR M5-.8 X 20
Price
N/A
25
SANDING BELT 4" X 24" 80-GRIT
Price
$2.20
26
WING BOLT M6-1 X 14
Price
$1.90
27
LOCK WASHER 5MM
Price
N/A
29
BACKSTOP
Price
$2.20
30
FIXED TABLE
Price
$35.95
31
FLAT HD CAP SCR M6-1 X 25
Price
$1.90
32
PHLP HD SCR M6-1 X 16
Price
N/A
33
PHLP HD SCR M5-.8 X 12
Price
N/A
34
DRUM HOUSING SUPPORT
Price
$1.90
35
SQUARE NUT M6-1
Price
N/A
36
DUST PORT GASKET
Price
$1.90
37
DUST PORT 1-1/2"
Price
$1.90
39
LOCK WASHER 6MM
Price
N/A
40
PHLP HD SCR M5-.8 X 20
Price
N/A
41
TILTING TABLE
Price
$18.40
42
TABLE TILT PIN M6-1 X 14, 8 X 25
Price
$1.90
43
TABLE TILT BRACKET (LEFT)
Price
$3.25
45
TABLE TILT STOP BRACKET (RIGHT)
Price
$3.25
46
TAP SCREW M4 X 14
Price
N/A
47
UPPER BEARING SUPPORT
Price
$1.90
48
BALL BEARING 6203ZZ
Price
N/A
49
FELT RING
Price
$1.90
50
RUBBER GASKET
Price
$1.90
51
SPINDLE WASHER
Price
$1.90
52
BEARING SLEEVE
Price
$1.90
53
LOWER BEARING SUPPORT
Price
$2.90
54
TAP SCREW M4 X 22
Price
N/A
55
WHEEL SUPPORT
Price
$18.40
58
WIRE CLAMP
Price
$1.90
59
RECTIFIER KBPC1504
Price
$4.00
60
TAP SCREW M4 X 20
Price
N/A
61
DRUM WHEEL
Price
$3.65
62
ROTOR
Price
$30.95
63
Bearing - 22mm x 8mm
Price
N/A
64
FAN SHROUD
Price
$2.20
65
FIELD ASSEMBLY
Price
$5.45
66
MAGNETIC SHOE (NORTH)
Price
$5.45
67
MAGNETIC SHOE (SOUTH)
Price
$5.45
68
ROTOR BASE
Price
$2.20
69
BRUSH ASSEMBLY
Price
N/A
70
BRUSH ASSEMBLY
Price
N/A
71
BRUSH ASSEMBLY
Price
N/A
72
CORD CLAMP
Price
$1.90
73
INT TOOTH WASHER 4MM
Price
N/A
75
TAP SCREW M4 X 20
Price
N/A
76
FLAT WASHER 6MM
Price
$1.90
77
BEARING COVER
Price
$3.65
78
TAP SCREW M4 X 16
Price
N/A
79
BEARING SLEEVE (UPPER)
Price
$1.90
80
COMPRESSION SPRING
Price
$1.90
81
SPINDLE
Price
$8.65
83
WOODRUFF KEY
Price
N/A
84
EXT RETAINING RING 17MM
Price
N/A
85
WASHER 17.2 X 25.5 X 1.5MM
Price
$1.90
86
PULLEY PLATE
Price
$1.90
87
PULLEY (LOWER)
Price
$3.65
88
BELT 3/8" X 160XL
Price
$1.90
89
BELT 1/4" X 160XL
Price
$2.20
90
PULLY (UPPER)
Price
$3.25
91
BEARING SLEEVE (LOWER)
Price
$1.90
92
SWITCH PLATE, METAL
Price
$1.90
93
SWITCH PLATE, PLASTIC
Price
$1.90
95
SWITCH ORIENTATION PLATE
Price
$1.90
96
Safety Paddle Switch
Price
N/A
97
SWITCH SHIELD
Price
$1.90
99
PHLP HD SCR M4-.7 X 15
Price
N/A

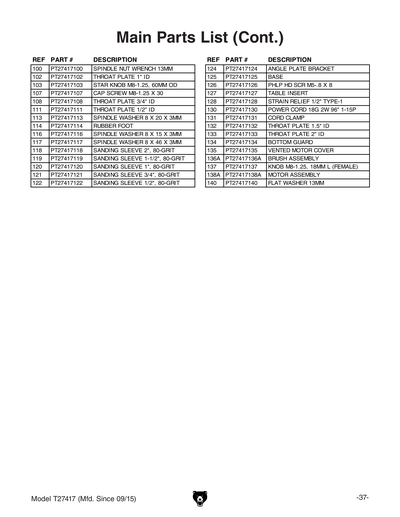

100
SPINDLE NUT WRENCH 13MM
Price
$1.90
102
THROAT PLATE SET (5PC)
Price
N/A
102A
THROAT PLATE SET (5PC)
Price
$9.00
103
STAR KNOB M8-1.25, 60MM OD
Price
$2.20
107
CAP SCREW M8-1.25 X 30
Price
N/A
108
THROAT PLATE SET (5PC)
Price
N/A
111
THROAT PLATE SET (5PC)
Price
N/A
113
SPINDLE WASHER 8 X 20 X 3MM
Price
$1.90
114
RUBBER FOOT
Price
$1.90
116
SPINDLE WASHER 8 X 15 X 3MM
Price
$1.90
117
SPINDLE WASHER 8 X 46 X 3MM
Price
$1.90
118
SANDING SLEEVE 2", 80-GRIT
Price
$7.20
118-1
SANDING DRUM 2"
Price
$6.90
118-1A
SANDING DRUM ASSEMBLY
Price
$12.65
118A
SANDING SLEEVE ASSEMBLY
Price
$7.60
119
SANDING SLEEVE 1-1/2", 80-GRIT
Price
$11.20
119-1
SANDING DRUM 1-1/2"
Price
$3.25
120
SANDING SLEEVE 1", 80-GRIT
Price
$7.20
120-1
SANDING DRUM 1"
Price
$3.25
121
SANDING SLEEVE 3/4", 80-GRIT
Price
$7.20
121-1
SANDING DRUM 3/4"
Price
$3.25
122
SANDING SLEEVE 1/2", 80-GRIT
Price
$6.50
124
ANGLE PLATE BRACKET
Price
$1.90
125
BASE
Price
$5.75
126
PHLP HD SCR M5-.8 X 8
Price
N/A
127
TABLE INSERT
Price
$2.60
128
STRAIN RELIEF 1/2" TYPE-1
Price
$1.90
130
POWER CORD 18G 2W 96" 1-15P
Price
$5.45
131
CORD CLAMP
Price
$1.90
132
THROAT PLATE SET (5PC)
Price
N/A
133
THROAT PLATE SET (5PC)
Price
N/A
134
BOTTOM GUARD
Price
$4.35
135
VENTED MOTOR COVER
Price
$1.90
136A
BRUSH ASSEMBLY
Price
$2.20
137
KNOB M8-1.25, 18MM L (FEMALE)
Price
$3.25
137A
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
138A
MOTOR ASSEMBLY
Price
$64.00
139A
EDGE SANDING ATTACHMENT ASSY
Price
$87.00
140
FLAT WASHER 13 X 20 X 2MM
Price
$1.90

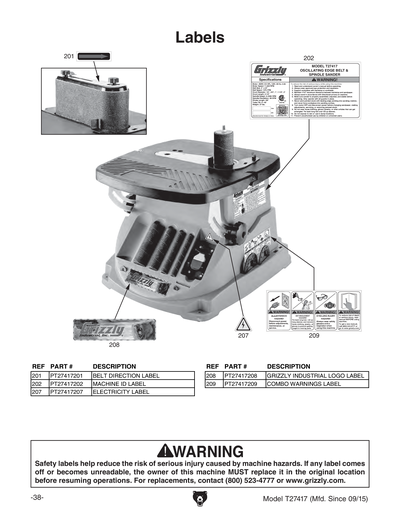

201
BELT DIRECTION LABEL
Price
$1.25
202
MACHINE ID LABEL
Price
$16.40
203
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
204
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
205
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
206
READ MANUAL 1.5W X 2.5H
Price
N/A
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
GRIZZLY INDUSTRIAL LOGO LABEL
Price
$5.35
209
COMBO WARNINGS LABEL
Price
$16.40
MAN
MANUAL T27417 MFD-12.15 V1.01.16
Price
$14.65
