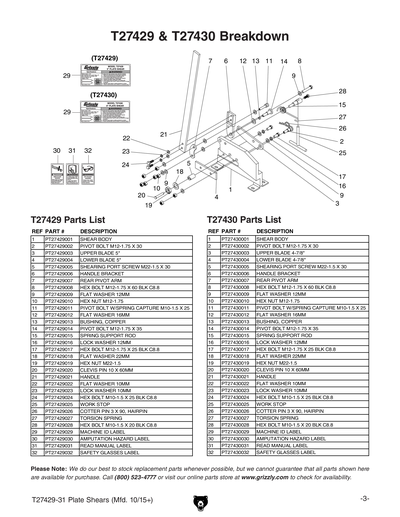

Parts for T27429 5" Plate Shear

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SHEAR BODY
2
PIVOT BOLT M12-1.75 X 30
3
UPPER BLADE 5"
4
LOWER BLADE 5"
5
SHEARING PORT SCREW M22-1.5 X 30
6
HANDLE BRACKET
7
REAR PIVOT ARM
8
Now: PB38M
HEX BOLT M12-1.75 X 60
Price
N/A
9
Now: PW06M
FLAT WASHER 12MM
Price
N/A
10
Now: PN09M
HEX NUT M12-1.75
Price
N/A
11
PIVOT BOLT W/SPRING CAPTURE M10-1.5 X 25
12
Now: PW08M
FLAT WASHER 16MM
Price
N/A
13
BUSHING, COPPER
14
PIVOT BOLT M12-1.75 X 35
15
SPRING SUPPORT ROD
16
LOCK WASHER 12MM
Price
N/A
17
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
18
FLAT WASHER 22MM
Price
N/A
19
HEX NUT M22-1.5
20
CLEVIS PIN 10 X 60MM
21
HANDLE
22
Now: PW04M
FLAT WASHER 10MM
Price
N/A
23
LOCK WASHER 10MM
Price
N/A
24
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
25
WORK STOP
26
COTTER PIN 3 X 90, HAIRPIN
27
TORSION SPRING
28
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
29
MACHINE ID LABEL
30
AMPUTATION HAZARD LABEL
31
READ MANUAL 1.5W X 2.5H
Price
N/A
32
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
MAN
MANUAL T27429 MFD-11.15 V1.12.15
