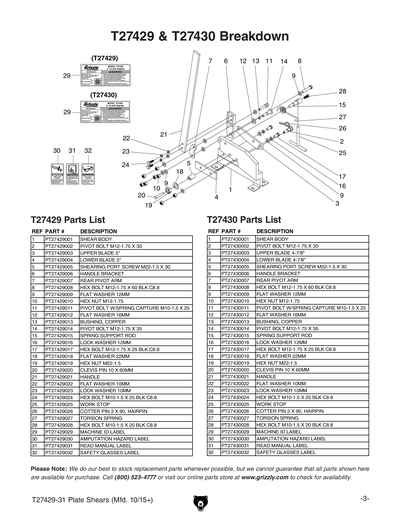

Parts for T27430 6" Plate Shear

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SHEAR BODY
2
PIVOT BOLT M12-1.75 X 30
Price
N/A
3
UPPER BLADE 4-7/8"
4
LOWER BLADE 4-7/8"
5
SHEARING PORT SCREW M22-1.5 X 30
Price
N/A
6
HANDLE BRACKET
Price
N/A
7
REAR PIVOT ARM
Price
N/A
8
Now: PB38M
HEX BOLT M12-1.75 X 60
Price
N/A
9
Now: PW06M
FLAT WASHER 12MM
Price
N/A
10
Now: PN09M
HEX NUT M12-1.75
Price
N/A
11
PIVOT BOLT W/SPRING CAPTURE M10-1.5 X 25
Price
N/A
12
Now: PW08M
FLAT WASHER 16MM
Price
N/A
13
BUSHING, COPPER
Price
N/A
14
PIVOT BOLT M12-1.75 X 35
Price
N/A
15
SPRING SUPPORT ROD
Price
N/A
16
LOCK WASHER 12MM
Price
N/A
17
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
18
FLAT WASHER 22MM
Price
N/A
19
HEX NUT M22-1.5
Price
N/A
20
CLEVIS PIN 10 X 60MM
Price
N/A
21
HANDLE
Price
N/A
22
Now: PW04M
FLAT WASHER 10MM
Price
N/A
23
LOCK WASHER 10MM
Price
N/A
24
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
25
WORK STOP
Price
N/A
26
COTTER PIN 3 X 90, HAIRPIN
Price
N/A
27
TORSION SPRING
Price
N/A
28
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
29
MACHINE ID LABEL
30
AMPUTATION HAZARD LABEL
Price
N/A
31
READ MANUAL 1.5W X 2.5H
Price
N/A
32
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
MAN
MANUAL T27429 MFD-11.15 V1.12.15
Price
N/A
PT274290009
Now: PW06M
FLAT WASHER 12MM
Price
N/A
