Parts for T27431 - 8" Plate Shear

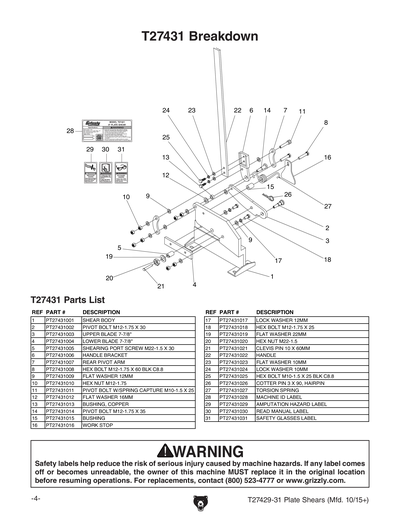

Part Diagram for T27431
Part Diagram for T27431

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$129.40
2
PIVOT BOLT M12-1.75 X 30
Price
N/A
3
Price
$146.65
4
Price
$116.45
5
SHEARING PORT SCREW M22-1.5 X 30
Price
N/A
6
HANDLE BRACKET
Price
N/A
7
REAR PIVOT ARM
Price
N/A
8
HEX BOLT M12-1.75 X 60
Price
N/A
9
FLAT WASHER 12MM
Price
N/A
10
HEX NUT M12-1.75
Price
N/A
11
PIVOT BOLT W/SPRING CAPTURE M10-1.5 X 25
Price
N/A
12
FLAT WASHER 16MM
Price
N/A
13
BUSHING, COPPER
Price
N/A
14
PIVOT BOLT M12-1.75 X 35
Price
N/A
15
Price
$5.45
16
Price
$4.35
17
LOCK WASHER 12MM
Price
N/A
18
HEX BOLT M12-1.75 X 25
Price
N/A
19
FLAT WASHER 22MM
Price
N/A
20
HEX NUT M22-1.5
Price
N/A
21
CLEVIS PIN 10 X 60MM
Price
N/A
22
HANDLE
Price
N/A
23
FLAT WASHER 10MM
Price
N/A
24
LOCK WASHER 10MM
Price
N/A
25
HEX BOLT M10-1.5 X 25
Price
N/A
26
COTTER PIN 3 X 90, HAIRPIN
Price
N/A
27
Price
$9.00
28
Price
$16.40
29
AMPUTATION HAZARD LABEL
Price
N/A
30
READ MANUAL 1.5W X 2.5H
Price
N/A
31
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
BOX2
HANDLE
Price
N/A
MAN
MANUAL T27429 MFD-11.15 V1.12.15
Price
N/A
