Parts for T27556 - Blade Welder 4.2 KVA

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

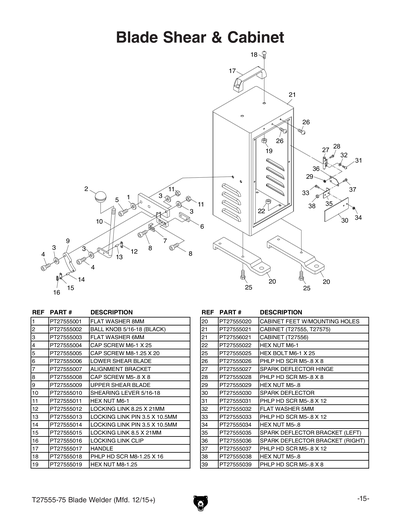

1 PT27556001
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
2 PT27556002
Replaced By PT27555002
BALL KNOB 5/16-18 (BLACK)
N/A View Replacement
3 PT27556003
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
4 PT27556004
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
5 PT27556005
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
6 PT27556006
Replaced By PT27555006
LOWER SHEAR BLADE
N/A View Replacement
7 PT27556007
Replaced By PT27555007
ALIGNMENT BRACKET
N/A View Replacement
8 PT27556008
Replaced By PCAP03M
CAP SCREW M5-.8 X 8
N/A View Replacement
9 PT27556009
Replaced By PT27555009
UPPER SHEAR BLADE
N/A View Replacement
10 PT27556010
Replaced By PT27555010
SHEARING LEVER 5/16-18
N/A View Replacement
11 PT27556011
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
12 PT27556012
Replaced By PT27555012A
LOCKING LINK PIN & CLIP SET
N/A View Replacement
13 PT27556013
Replaced By PT27555012A
LOCKING LINK PIN & CLIP SET
N/A View Replacement
14 PT27556014
Replaced By PT27555012A
LOCKING LINK PIN & CLIP SET
N/A View Replacement
15 PT27556015
Replaced By PT27555012A
LOCKING LINK PIN & CLIP SET
N/A View Replacement
16 PT27556016
Replaced By PT27555012A
LOCKING LINK PIN & CLIP SET
N/A View Replacement
17 PT27556017
Replaced By PT27555017
HANDLE
N/A View Replacement
18 PT27556018
Replaced By PS16M
PHLP HD SCR M8-1.25 X 16
N/A View Replacement
19 PT27556019
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
20 PT27556020
Replaced By PT27555020
CABINET FOOT (LH) W/MOUNTING HOLES
N/A View Replacement
21 PT27556021 CABINET $122.25
22 PT27556022
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
25 PT27556025
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
26 PT27556026
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement

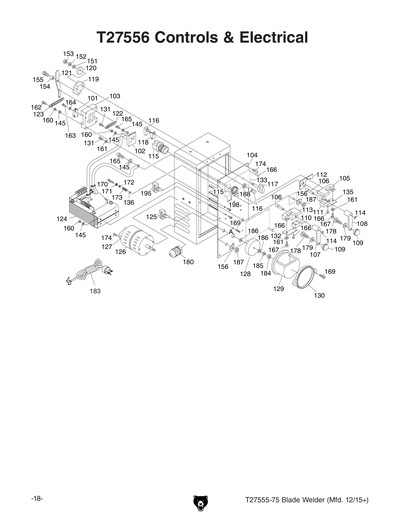

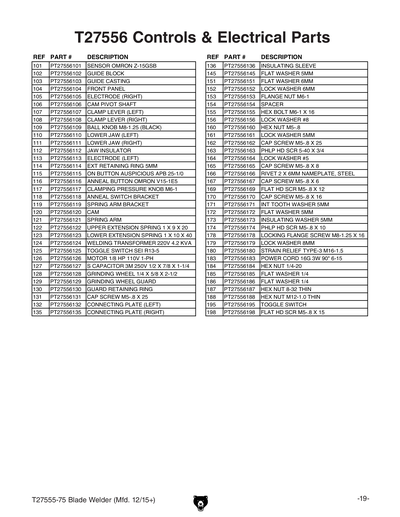

101 PT27556101 SENSOR OMRON Z-15GSB $37.00
102 PT27556102
Replaced By PT27555102
GUIDE BLOCK
N/A View Replacement
103 PT27556103 GUIDE CASTING $25.25
104 PT27556104 FRONT PANEL $52.00
105 PT27556105
Replaced By PT27555105
ELECTRODE (RIGHT)
N/A View Replacement
106 PT27556106
Replaced By PT27555106
CAM PIVOT SHAFT
N/A View Replacement
107 PT27556107
Replaced By PT27555107
CLAMP LEVER (LEFT)
N/A View Replacement
108 PT27556108
Replaced By PT27555108
CLAMP LEVER (RIGHT)
N/A View Replacement
109 PT27556109
Replaced By PT27555109
BALL KNOB M8-1.25 (BLACK)
N/A View Replacement
110 PT27556110
Replaced By PT27555110
LOWER JAW (LEFT)
N/A View Replacement
111 PT27556111
Replaced By PT27555111
LOWER JAW (RIGHT)
N/A View Replacement
112 PT27556112
Replaced By PT27555112
JAW INSULATOR
N/A View Replacement
113 PT27556113
Replaced By PT27555113
ELECTRODE (LEFT)
N/A View Replacement
114 PT27556114
Replaced By PR73M
EXT RETAINING RING 5MM
N/A View Replacement
115 PT27556115
Replaced By PT27555115
ON BUTTON AUSPICIOUS APB 25-1/0
N/A View Replacement
116 PT27556116
Replaced By PT27555116
ANNEAL BUTTON OMRON V15-1E5
N/A View Replacement
117 PT27556117
Replaced By PT27555117
CLAMPING PRESSURE KNOB M6-1
N/A View Replacement
118 PT27556118
Replaced By PT27555118
ANNEAL SWITCH BRACKET
N/A View Replacement
119 PT27556119
Replaced By PT27555119
SPRING ARM BRACKET
N/A View Replacement
120 PT27556120
Replaced By PT27555120
CAM
N/A View Replacement
121 PT27556121
Replaced By PT27555121
SPRING ARM
N/A View Replacement
122 PT27556122
Replaced By PT27555122
UPPER EXTENSION SPRING 1 X 9 X 20
N/A View Replacement
123 PT27556123
Replaced By PT27555123
LOWER EXTENSION SPRING 1 X 10 X 40
N/A View Replacement
124 PT27556124 WELDING TRANSFORMER 220V 4.2 KVA $281.25
125 PT27556125
Replaced By PT27555125
TOGGLE SWITCH SEI R13-5
N/A View Replacement
126 PT27556126
Replaced By PT27555126
MOTOR 1/8HP 110V 1-PH
N/A View Replacement
127 PT27556127
Replaced By PT27555127
S CAPACITOR 3M 250V 1/2 X 7/8 X 1-1/4
N/A View Replacement
128 PT27556128
Replaced By PT27555128
GRINDING WHEEL 1/4 X 5/8 X 2-1/2
N/A View Replacement
129 PT27556129
Replaced By PT27555129
GRINDING WHEEL GUARD
N/A View Replacement
130 PT27556130
Replaced By PT27555130
GUARD RETAINING RING
N/A View Replacement
131 PT27556131
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
132 PT27556132
Replaced By PT27555132
CONNECTING PLATE (LEFT)
N/A View Replacement
135 PT27556135
Replaced By PT27555135
CONNECTING PLATE (RIGHT)
N/A View Replacement
136 PT27556136
Replaced By PT27555136
INSULATING SLEEVE
N/A View Replacement
145 PT27556145
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
151 PT27556151
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
152 PT27556152
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
153 PT27556153
Replaced By PFN02M
FLANGE NUT M6-1
N/A View Replacement
154 PT27556154
Replaced By PT27555154
SPACER
N/A View Replacement
155 PT27556155
Replaced By PB83M
HEX BOLT M6-1 X 16
N/A View Replacement
156 PT27556156
Replaced By PLW13
LOCK WASHER #8
N/A View Replacement
160 PT27556160
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
161 PT27556161
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
162 PT27556162
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
163 PT27556163
Replaced By PS48
PHLP HD SCR 5-40 X 3/4
N/A View Replacement
164 PT27556164
Replaced By PLW11
LOCK WASHER #5
N/A View Replacement
165 PT27556165
Replaced By PCAP03M
CAP SCREW M5-.8 X 8
N/A View Replacement
166 PT27556166
Replaced By PRIV009M
RIVET 2 X 6MM NAMEPLATE, STEEL
N/A View Replacement
167 PT27556167
Replaced By PCAP97M
CAP SCREW M5-.8 X 6
N/A View Replacement
169 PT27556169
Replaced By PFH05M
FLAT HD SCR M5-.8 X 12
N/A View Replacement
170 PT27556170
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
171 PT27556171
Replaced By PTLW17M
INT TOOTH WASHER 5MM
N/A View Replacement
172 PT27556172
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
173 PT27556173
Replaced By PT27555173
INSULATING WASHER 5MM
N/A View Replacement
174 PT27556174
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
178 PT27556178
Replaced By PT27555178
LOCKING FLANGE SCREW M8-1.25 X 16
N/A View Replacement
179 PT27556179
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
180 PT27556180
Replaced By PT27555180
STRAIN RELIEF TYPE-3 M16-1.5
N/A View Replacement
183 PT27556183 POWER CORD 16G 3W 90" 6-15 $48.00
184 PT27556184
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
185 PT27556185
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
186 PT27556186
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
187 PT27556187
Replaced By PT27555187
HEX NUT 8-32 THIN
N/A View Replacement
188 PT27556188
Replaced By PT27555188
HEX NUT M12-1.0 THIN
N/A View Replacement
195 PT27556195 TOGGLE SWITCH $7.25
198 PT27556198
Replaced By PFH01M
FLAT HD SCR M5-.8 X 15
N/A View Replacement

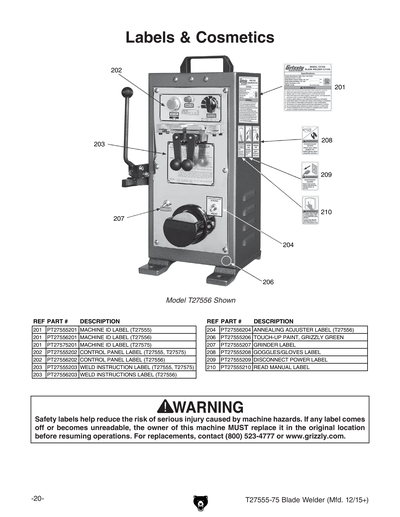

201 PT27556201 MACHINE ID LABEL $9.50
202 PT27556202 CONTROL PANEL LABEL $6.00
203 PT27556203 WELDING INSTRUCTIONS LABEL $6.25
204 PT27556204 ANNEALING ADJUSTER LABEL $2.25
205 PT27556205
Replaced By PT27555207
GRINDER LABEL
N/A View Replacement
206 PT27556206
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
207 PT27556207
Replaced By PT27555207
GRINDER LABEL
N/A View Replacement
208 PT27556208
Replaced By PT27555208
GOGGLES/GLOVES LABEL
N/A View Replacement
209 PT27556209
Replaced By PLABEL-62A
DISCONNECT 110V 1.5W X 2.5H
N/A View Replacement
210 PT27556210
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
5027 PT275565027
Replaced By PT27555027
SPARK DEFLECTOR HINGE
N/A View Replacement
5028 PT275565028
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
5029 PT275565029
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
5030 PT275565030
Replaced By PT27555030
SPARK DEFLECTOR
N/A View Replacement
5031 PT275565031
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
5032 PT275565032
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
5033 PT275565033
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
5034 PT275565034
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
5035 PT275565035
Replaced By PT27555035
SPARK DEFLECTOR BRACKET (LEFT)
N/A View Replacement
5036 PT275565036
Replaced By PT27555036
SPARK DEFLECTOR BRACKET (RIGHT)
N/A View Replacement
5037 PT275565037
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
5038 PT275565038
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
MAN PT27556MAN
Replaced By PT27555MAN
MANUAL T27555-75 MFD-11.15 V1.02.16
N/A View Replacement
