Parts for T27575 - Blade Welder 2.4 KVA

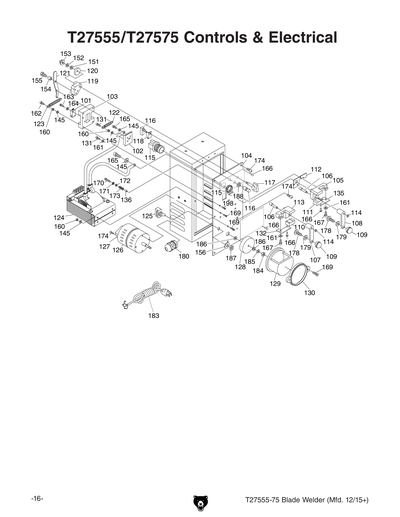

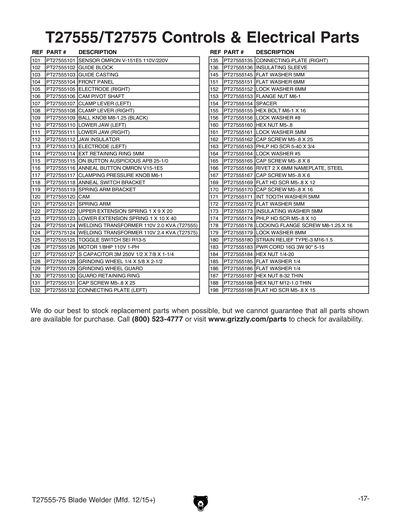

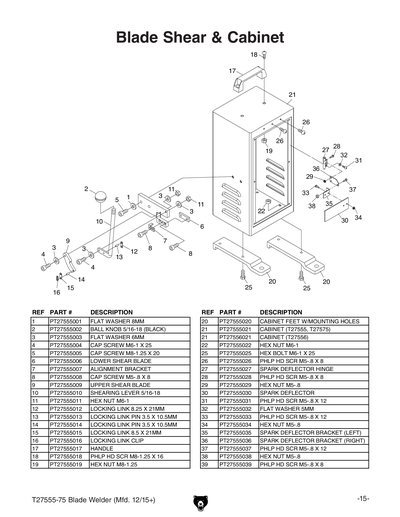

Part Diagram for T27575
Part Diagram for T27575
Part Diagram for T27575
Part Diagram for T27575
Part Diagram for T27575
Part Diagram for T27575
Part Diagram for T27575
Part Diagram for T27575

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
FLAT WASHER 8MM
Price
N/A
2
***USE P0806204***
Price
N/A
3
FLAT WASHER 6MM
Price
N/A
4
CAP SCREW M6-1 X 25
Price
N/A
5
CAP SCREW M8-1.25 X 20
Price
N/A
6
LOWER SHEAR BLADE
Price
N/A
7
***USE P0806215***
Price
N/A
8
CAP SCREW M5-.8 X 8
Price
N/A
9
UPPER SHEAR BLADE
Price
N/A
10
SHEARING LEVER 5/16-18
Price
N/A
11
HEX NUT M6-1
Price
N/A
12
LOCKING LINK PIN & CLIP SET
Price
N/A
13
LOCKING LINK PIN & CLIP SET
Price
N/A
14
LOCKING LINK PIN & CLIP SET
Price
N/A
15
LOCKING LINK PIN & CLIP SET
Price
N/A
16
LOCKING LINK PIN & CLIP SET
Price
N/A
17
HANDLE
Price
N/A
18
PHLP HD SCR M8-1.25 X 16
Price
N/A
19
HEX NUT M8-1.25
Price
N/A
20
CABINET FOOT (LH) W/MOUNTING HOLES
Price
N/A
21
CABINET
Price
N/A
22
HEX NUT M6-1
Price
N/A
25
HEX BOLT M6-1 X 25
Price
N/A
26
SPARK DEFLECTOR HINGE
Price
N/A
28
PHLP HD SCR M5-.8 X 8
Price
N/A
29
HEX NUT M5-.8
Price
N/A
30
SPARK DEFLECTOR
Price
N/A
31
PHLP HD SCR M5-.8 X 12
Price
N/A
32
FLAT WASHER 5MM
Price
N/A
33
PHLP HD SCR M5-.8 X 12
Price
N/A
34
HEX NUT M5-.8
Price
N/A
35
SPARK DEFLECTOR BRACKET (LEFT)
Price
N/A
36
SPARK DEFLECTOR BRACKET (RIGHT)
Price
N/A
37
PHLP HD SCR M5-.8 X 12
Price
N/A
38
HEX NUT M5-.8
Price
N/A
101
SENSOR OMRON V-151E5 110V/220V
Price
N/A
102
***USE P0806518***
Price
N/A
103
***USE P0806512***
Price
N/A
104
***USE P0806545***
Price
N/A
105
ELECTRODE (RIGHT)
Price
N/A
106
***USE P0806556***
Price
N/A
107
CLAMP LEVER (LEFT)
Price
N/A
108
CLAMP LEVER (RIGHT)
Price
N/A
109
***USE PSB1021566***
Price
N/A
110
LOWER JAW (LEFT)
Price
N/A
111
LOWER JAW (RIGHT)
Price
N/A
112
***USE P0806555***
Price
N/A
113
***USE P0806571***
Price
N/A
114
EXT RETAINING RING 5MM
Price
N/A
115
ON BUTTON AUSPICIOUS APB 25-1/0
Price
N/A
116
ANNEAL BUTTON OMRON V15-1E5
Price
N/A
117
***USE P0806549***
Price
N/A
118
ANNEAL SWITCH BRACKET
Price
N/A
119
SPRING ARM BRACKET
Price
N/A
120
***USE P0806500***
Price
N/A
121
SPRING ARM
Price
N/A
122
UPPER EXTENSION SPRING 1 X 9 X 20
Price
N/A
123
***USE P0806507***
Price
N/A
124
WELDING TRANSFORMER 110V 2.4 KVA
Price
$408.20
125
TOGGLE SWITCH SEI R13-5
Price
N/A
126
MOTOR 1/8HP 110V 1-PH
Price
N/A
127
S CAPACITOR 3M 250V 1/2 X 7/8 X 1-1/4
Price
N/A
128
***USE PSB1021577***
Price
N/A
129
GRINDING WHEEL GUARD
Price
N/A
130
***USE P0806573***
Price
N/A
131
CAP SCREW M5-.8 X 25
Price
N/A
132
CONNECTING PLATE (LEFT)
Price
N/A
135
CONNECTING PLATE (RIGHT)
Price
N/A
136
***USE P0806525***
Price
N/A
145
FLAT WASHER 5MM
Price
N/A
151
FLAT WASHER 6MM
Price
N/A
152
LOCK WASHER 6MM
Price
N/A
153
FLANGE NUT M6-1
Price
N/A
154
SPACER
Price
N/A
155
HEX BOLT M6-1 X 16
Price
N/A
156
LOCK WASHER #8
Price
N/A
160
HEX NUT M5-.8
Price
N/A
161
LOCK WASHER 5MM
Price
N/A
162
CAP SCREW M5-.8 X 25
Price
N/A
163
PHLP HD SCR 5-40 X 3/4
Price
N/A
164
LOCK WASHER #5
Price
N/A
165
CAP SCREW M5-.8 X 8
Price
N/A
166
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
167
CAP SCREW M5-.8 X 6
Price
N/A
169
FLAT HD SCR M5-.8 X 12
Price
N/A
170
CAP SCREW M5-.8 X 16
Price
N/A
171
INT TOOTH WASHER 5MM
Price
N/A
172
FLAT WASHER 5MM
Price
N/A
173
***USE P0806524***
Price
N/A
174
PHLP HD SCR M5-.8 X 10
Price
N/A
178
LOCKING FLANGE SCREW M8-1.25 X 16
Price
N/A
179
LOCK WASHER 8MM
Price
N/A
180
STRAIN RELIEF TYPE-3 M16-1.5
Price
N/A
183
POWER CORD 16G 3W 90" 5-15
Price
N/A
184
HEX NUT 1/4-20
Price
N/A
185
FLAT WASHER 1/4
Price
N/A
186
FLAT WASHER 1/4
Price
N/A
187
***USE P0806531***
Price
N/A
188
HEX NUT M12-1.0 THIN
Price
N/A
198
FLAT HD SCR M5-.8 X 15
Price
N/A
201
Price
$16.40
202

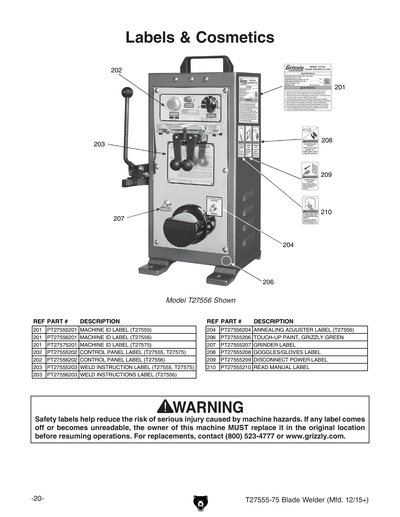

CONTROL PANEL LABEL
Price
N/A
203
WELDING INSTRUCTIONS LABEL
Price
N/A
205
*DISCD*GRINDER RPM LABEL
Price
N/A
206
N/S GRIZZLY GREEN G1023S
Price
N/A
207
GRINDER LABEL
Price
N/A
208
GOGGLES/GLOVES LABEL
Price
N/A
209
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
210
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL T27555-75 MFD-11.15 V1.02.16
Price
N/A
