Parts for T27577 - Picture Framing Machine / Underpinner

Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577
Part Diagram for T27577

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

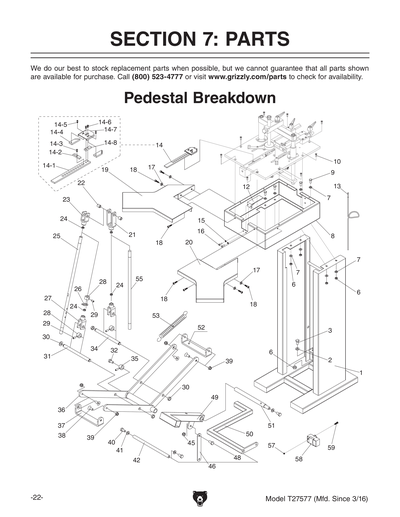

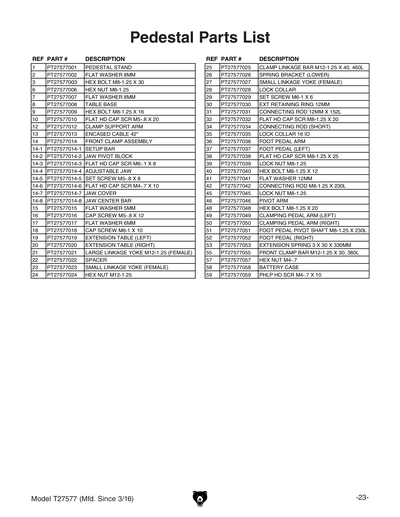

Ref #
Part #
Description
1
PEDESTAL STAND
Item is no longer available
Price
N/A
2
FLAT WASHER 8MM
Price
N/A
3
HEX BOLT M8-1.25 X 30
Price
N/A
6
HEX NUT M8-1.25
Price
N/A
7
FLAT WASHER 8MM
Price
N/A
8
TABLE BASE
Item is no longer available
Price
N/A
9
HEX BOLT M8-1.25 X 16
Price
N/A
10
FLAT HD CAP SCR M5-.8 X 20
Price
N/A
12
CLAMP SUPPORT ARM
Item is no longer available
Price
N/A
13
*DISCD*ENCASED CABLE 42"
Price
$15.55
14
*DISCD*FRONT CLAMP ASSEMBLY
Price
$124.20
14-1
SETUP BAR
Item is no longer available
Price
N/A
14-2
JAW PIVOT BLOCK
Item is no longer available
Price
N/A
14-3
FLAT HD CAP SCR M6-1 X 8
Price
N/A
14-4
ADJUSTABLE JAW
Item is no longer available
Price
N/A
14-5
SET SCREW M5-.8 X 8
Price
N/A
14-6
FLAT HD CAP SCR M4-.7 X 10
Price
N/A
14-7
JAW COVER
Item is no longer available
Price
N/A
14-8
JAW CENTER BAR
Item is no longer available
Price
N/A
15
FLAT WASHER 5MM
Price
N/A
16
CAP SCREW M5-.8 X 12
Price
N/A
17
FLAT WASHER 6MM
Price
N/A
18
CAP SCREW M6-1 X 10
Price
N/A
19
EXTENSION TABLE (LEFT)
Item is no longer available
Price
N/A
20
EXTENSION TABLE (RIGHT)
Item is no longer available
Price
N/A
21
LARGE LINKAGE YOKE M12-1.25 (FEMALE)
Item is no longer available
Price
N/A
22
SPACER
Item is no longer available
Price
N/A
23
SMALL LINKAGE YOKE (FEMALE)
Item is no longer available
Price
N/A
24
HEX NUT M12-1.25
Price
N/A
25
CLAMP LINKAGE BAR M12-1.25 X 40, 460L
Item is no longer available
Price
N/A
26
SPRING BRACKET (LOWER)
Item is no longer available
Price
N/A
27
SMALL LINKAGE YOKE (FEMALE)
Item is no longer available
Price
N/A
28
LOCK COLLAR
Item is no longer available
Price
N/A
29
SET SCREW M6-1 X 6
Price
N/A
30
HEX NUT M12-1.75 THIN
Price
N/A
31
CONNECTING ROD 12MM X 152L
Item is no longer available
Price
N/A
32
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
33
LOCK NUT M8-1.25
Price
N/A
34
CONNECTING ROD (SHORT)
Item is no longer available
Price
N/A
35
LOCK COLLAR 16 ID
Item is no longer available
Price
N/A
36
FOOT PEDAL ARM
Item is no longer available
Price
N/A
37
FOOT PEDAL (LEFT)
Item is no longer available
Price
N/A
38
FLAT HD CAP SCR M8-1.25 X 25
Price
N/A
39
LOCK NUT M8-1.25
Price
N/A
40
HEX BOLT M8-1.25 X 12
Price
N/A
41
FLAT WASHER 8MM
Price
N/A
42
CONNECTING ROD M8-1.25 X 230L
Item is no longer available
Price
N/A
45
LOCK NUT M8-1.25
Price
N/A
46
PIVOT ARM
Item is no longer available
Price
N/A
48
HEX BOLT M8-1.25 X 20
Price
N/A
49
CLAMPING PEDAL ARM (LEFT)
Item is no longer available
Price
N/A
50
CLAMPING PEDAL ARM (RIGHT)
Price
$30.20
51
FOOT PEDAL PIVOT SHAFT M8-1.25 X 230L
Item is no longer available
Price
N/A
52
FOOT PEDAL (RIGHT)
Item is no longer available
Price
N/A
53
EXTENSION SPRING 3 X 30 X 330MM
Item is no longer available
Price
N/A
55
FRONT CLAMP BAR M12-1.25 X 30, 380L
Item is no longer available
Price
N/A
57
HEX NUT M4-.7
Price
N/A
58
BATTERY CASE
Item is no longer available
Price
N/A
59
PHLP HD SCR M4-.7 X 10
Price
N/A
60
TOOL TRAY
Price
$24.15

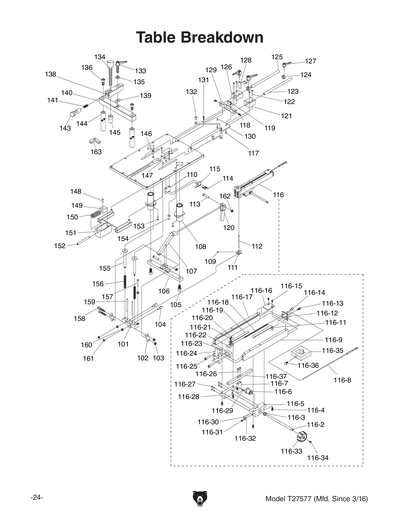

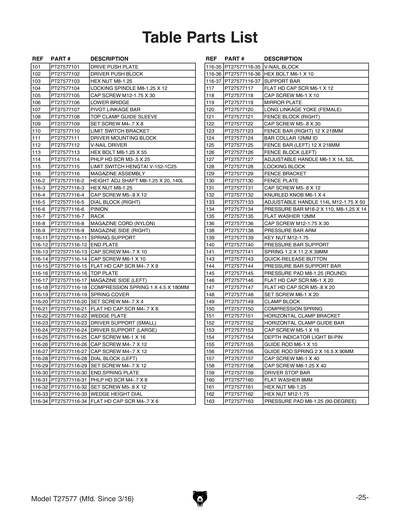

100
TABLE ASSEMBLY
Item is no longer available
Price
N/A
101
DRIVE PUSH PLATE
Item is no longer available
Price
N/A
102
DRIVER PUSH BLOCK
Item is no longer available
Price
N/A
103
HEX NUT M8-1.25
Price
N/A
104
LOCKING SPINDLE M8-1.25 X 12
Item is no longer available
Price
N/A
105
CAP SCREW M12-1.75 X 30
Price
N/A
106
LOWER BRIDGE
Item is no longer available
Price
N/A
107
PIVOT LINKAGE BAR
Item is no longer available
Price
N/A
108
TOP CLAMP GUIDE SLEEVE
Price
$22.45
109
SET SCREW M4-.7 X 8
Price
N/A
110
LIMIT SWITCH BRACKET
Item is no longer available
Price
N/A
111
*DISCD*DRIVER MOUNTING BLOCK
Price
$14.70
112
*DISCD*V-NAIL DRIVER
Price
$28.50
113
HEX BOLT M12-1.75 X 50
Price
N/A
114
PHLP HD SCR M3-.5 X 25
Price
N/A
115
*DISCD*LIMIT SWITCH HENGTAI V-152-1C25
Price
$3.45
116
MAGAZINE ASSEMBLY
Item is no longer available
Price
N/A
116-10
HEX NUT M4-.7
Price
N/A
116-11
SPRING SUPPORT
Item is no longer available
Price
N/A
116-12
END PLATE
Item is no longer available
Price
N/A
116-13
CAP SCREW M4-.7 X 10
Price
N/A
116-14
CAP SCREW M6-1 X 10
Price
N/A
116-15
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
116-16
TOP PLATE
Item is no longer available
Price
N/A
116-17
MAGAZINE SIDE (LEFT)
Item is no longer available
Price
N/A
116-18
COMPRESSION SPRING 1 X 4.5 X 180MM
Price
$3.45
116-19
SPRING COVER
Item is no longer available
Price
N/A
116-2
HEIGHT ADJ SHAFT M8-1.25 X 20, 140L
Item is no longer available
Price
N/A
116-20
SET SCREW M4-.7 X 4
Price
N/A
116-21
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
116-22
WEDGE PLATE
Item is no longer available
Price
N/A
116-23
DRIVER SUPPORT (SMALL)
Price
$13.55
116-24
*DISCD*DRIVER SUPPORT (LARGE)
Price
$28.50
116-25
CAP SCREW M6-1 X 16
Price
N/A
116-26
CAP SCREW M4-.7 X 12
Price
N/A
116-27
CAP SCREW M4-.7 X 12
Price
N/A
116-28
DIAL BLOCK (LEFT)
Item is no longer available
Price
N/A
116-29
DRIVER PIN
Item is no longer available
Price
N/A
116-3
HEX NUT M8-1.25
Price
N/A
116-30
END SPRING PLATE
Item is no longer available
Price
N/A
116-31
PHLP HD SCR M4-.7 X 8
Price
N/A
116-32
SET SCREW M5-.8 X 12
Price
N/A
116-33
WEDGE HEIGHT DIAL
Item is no longer available
Price
N/A
116-34
FLAT HD CAP SCR M4-.7 X 6
Price
N/A
116-35
*DISCD*V-NAIL BLOCK
Price
$31.05
116-36
HEX BOLT M6-1 X 10
Price
N/A
116-37
SUPPORT BAR
Item is no longer available
Price
N/A
116-4
CAP SCREW M5-.8 X 12
Price
N/A
116-5
DIAL BLOCK (RIGHT)
Item is no longer available
Price
N/A
116-6
PINION
Item is no longer available
Price
N/A
116-7
RACK
Item is no longer available
Price
N/A
116-8
MAGAZINE CORD (NYLON)
Price
$3.45
116-9
MAGAZINE SIDE (RIGHT)
Item is no longer available
Price
N/A
117
FLAT HD CAP SCR M6-1 X 12
Price
N/A
118
CAP SCREW M6-1 X 10
Price
N/A
119
MIRROR PLATE
Price
$3.45
120
LONG LINKAGE YOKE (FEMALE)
Item is no longer available
Price
N/A
121
FENCE BLOCK (RIGHT)
Item is no longer available
Price
N/A
122
CAP SCREW M5-.8 X 30
Price
N/A
123
FENCE BAR (RIGHT) 12 X 218MM
Item is no longer available
Price
N/A
124
*DISCD*BAR COLLAR 12MM ID
Price
$13.25
125
FENCE BAR (LEFT) 12 X 218MM
Item is no longer available
Price
N/A
126
FENCE BLOCK (LEFT)
Item is no longer available
Price
N/A
127
*DISCD*ADJUSTABLE HANDLE M6-1 X 14, 52L
Price
$4.35
128
LOCKING BLOCK
Item is no longer available
Price
N/A
129
FENCE BRACKET
Item is no longer available
Price
N/A
130
*DISCD*FENCE PLATE
Price
$34.50
131
CAP SCREW M5-.8 X 12
Price
N/A
132
*DISCD*KNURLED KNOB M6-1 X 4
Price
$2.90
133
*DISCD*ADJ HANDLE 114L M12-1.75 X 50
Price
$12.95
134
*DISCD*BAR M16-2 X 110, M8-1.25 X 14
Item is no longer available
Price
N/A
135
FLAT WASHER 12MM
Price
N/A
136
CAP SCREW M12-1.75 X 30
Price
N/A
137
ROLL PIN 6 X 30
Price
N/A
138
*DISCD*PRESSURE BAR ARM
Price
$39.40
139
*DISCD*KEY NUT M12-1.75
Price
$15.10
140
PRESSURE BAR SUPPORT
Item is no longer available
Price
N/A
141
*DISCD*SPRING 1.2 X 11.2 X 39MM
Price
$2.60
142
QUICK-RELEASE BUTTON
Item is no longer available
Price
N/A
143
*DISCD*CLAMPING NUT
Price
$22.45
144
PRESSURE BAR SUPPORT BAR
Price
$17.25
145
*DISCD*PRESSURE PAD M8-1.25 (ROUND)
Price
$29.90
146
FLAT HD CAP SCR M6-1 X 16
Price
N/A
147
FLAT HD CAP SCR M5-.8 X 16
Price
N/A
148
SET SCREW M6-1 X 20
Price
N/A
149
CLAMP BLOCK
Item is no longer available
Price
N/A
150
COMPRESSION SPRING
Item is no longer available
Price
N/A
151
HORIZONTAL CLAMP BRACKET
Item is no longer available
Price
N/A
152
HORIZONTAL CLAMP GUIDE BAR
Item is no longer available
Price
N/A
153
CAP SCREW M6-1 X 16
Price
N/A
154
DEPTH INDICATOR LIGHT BI-PIN
Price
$7.20
155
GUIDE ROD M8-1.25 X 30
Item is no longer available
Price
N/A
156
GUIDE ROD SPRING 2 X 16.5 X 90MM
Item is no longer available
Price
N/A
157
CAP SCREW M6-1 X 40
Price
N/A
158
CAP SCREW M8-1.25 X 40
Price
N/A
159
DRIVER STOP BAR
Item is no longer available
Price
N/A
160
FLAT WASHER 8MM
Price
N/A
161
HEX NUT M8-1.25
Price
N/A
162
HEX NUT M12-1.75
Price
N/A
163
*DISCD*PRESSURE PAD M8-1.25 (90-DEGREE)
Price
$44.30

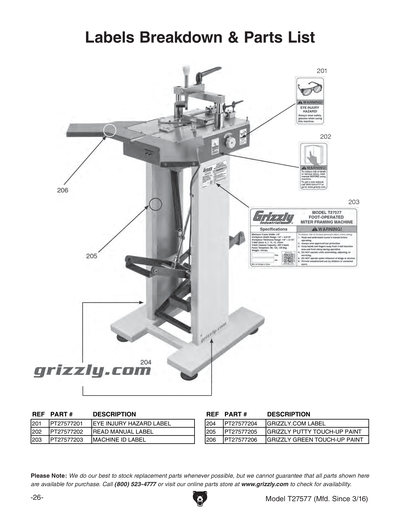

201
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
202
READ MANUAL 1.5W X 2.5H
Price
N/A
203
MACHINE ID LABEL
Item is no longer available
Price
N/A
204
GRIZZLY.COM LABEL 6.5",GREEN
Price
N/A
205
GREY PUTTY REF G0504
Price
N/A
206
N/S GRIZZLY GREEN G1023S
Price
N/A
207
V-NAIL HEIGHT GAUGE LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T27577 MFD-12.15 V1.03.16
Price
$22.65
