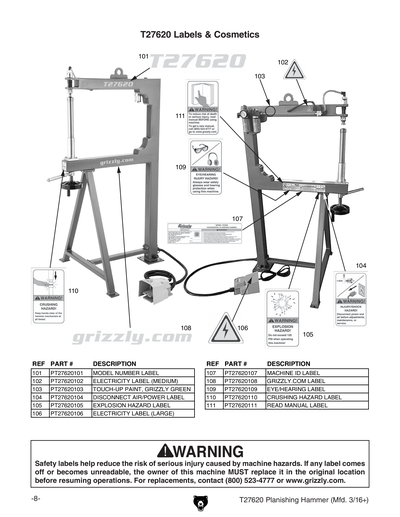

Parts for T27620 - 27" Pneumatic Planishing Hammer

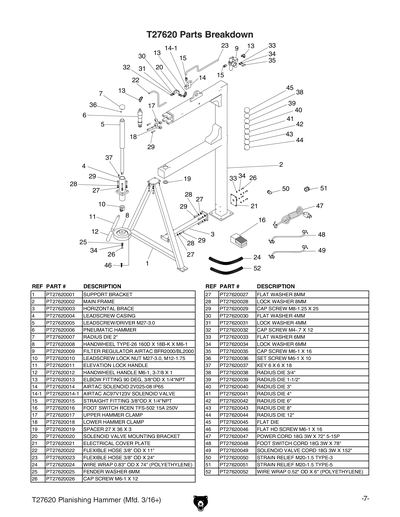

Part Diagram for T27620
Part Diagram for T27620
Part Diagram for T27620
Part Diagram for T27620

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SUPPORT BRACKET
Price
$163.90
2
MAIN FRAME
Price
$690.00
3
HORIZONTAL BRACE
Price
$43.15
4
LEADSCREW CASING
Price
$207.00
5
LEADSCREW/DRIVER M27-3.0
Price
$133.70
6
PNEUMATIC HAMMER
Price
$409.70
7
RADIUS DIE 2"
Price
$81.95
8
HANDWHEEL TYPE-26 160D X 18B-K X M6-1
Price
$43.15
9
FILTER REGULATOR AIRTAC BFR2000/BL2000
Price
$129.40
10
LEADSCREW LOCK NUT M27-3.0, M12-1.75
Price
$23.75
11
ELEVATION LOCK HANDLE
Price
$15.15
12
HANDWHEEL HANDLE M6-1, 3-7/8 X 1
Price
$4.35
13
ELBOW FITTING 90 DEG, 3/8"OD X 1/4"NPT
Price
$4.35
14
AIRTAC SOLENOID 2V025-08 IP65
Price
$43.15
14-1
AIRTAC AC97V123V SOLENOID VALVE
Price
$4.35
15
STRAIGHT FITTING 3/8"OD X 1/4"NPT
Price
$4.35
16
FOOT SWITCH RCEN TFS-502 15A 250V
Price
$81.95
17
UPPER HAMMER CLAMP
Price
$34.50
18
LOWER HAMMER CLAMP
Price
$34.50
19
SPACER 27 X 36 X 3
Price
$3.65
20
SOLENOID VALVE MOUNTING BRACKET
Price
$3.65
21
ELECTRICAL COVER PLATE
Price
$8.65
22
FLEXIBLE HOSE 3/8" OD X 11"
Price
$4.35
23
FLEXIBLE HOSE 3/8" OD X 24"
Price
$4.35
24
WIRE WRAP 0.83" OD X 74" (POLYETHYLENE)
Price
$17.25
25
FENDER WASHER 6MM
Price
N/A
26
CAP SCREW M6-1 X 12
Price
N/A
27
FLAT WASHER 8MM
Price
N/A
28
LOCK WASHER 8MM
Price
N/A
29
CAP SCREW M8-1.25 X 25
Price
N/A
30
FLAT WASHER 4MM
Price
N/A
31
LOCK WASHER 4MM
Price
N/A
32
CAP SCREW M4-.7 X 12
Price
N/A
33
FLAT WASHER 6MM
Price
N/A
34
LOCK WASHER 6MM
Price
N/A
35
CAP SCREW M6-1 X 16
Price
N/A
36
SET SCREW M6-1 X 10
Price
N/A
37
KEY 6 X 6 X 18
Price
N/A
38
RADIUS DIE 3/4"
Price
$88.10
39
RADIUS DIE 1-1/2"
Price
$88.10
40
RADIUS DIE 3"
Price
$88.10
41
RADIUS DIE 4"
Price
$88.10
42
RADIUS DIE 6"
Price
$81.95
43
RADIUS DIE 8"
Price
$88.10
44
RADIUS DIE 12"
Price
$81.95
45
FLAT DIE
Price
$88.10
46
FLAT HD SCREW M6-1 X 16
Price
$2.25
47
POWER CORD 18G 3W X 72" 5-15P
Price
$17.25
48
FOOT SWITCH CORD 18G 3W X 78"
Price
$12.95
49
SOLENOID VALVE CORD 18G 3W X 152"
Price
$12.95
50
STRAIN RELIEF M20-1.5 TYPE-3
Price
$4.35
51
STRAIN RELIEF M20-1.5 TYPE-5
Price
$4.35
52
WIRE WRAP 0.52" OD X 6" (POLYETHYLENE)
Price
$12.95
101
MODEL NUMBER LABEL
Price
$7.50
102
ELECTRICITY 0.7W X 0.6H
Price
N/A
103
N/S GRIZZLY GREEN G1023S
Price
N/A
104
DISCONNECT AIR/POWER LABEL
Price
$5.65
105
EXPLOSION HAZARD LABEL
Price
$5.65
106
ELECTRICITY 1.4W X 1.2H
Price
N/A
107
MACHINE ID LABEL
Price
$16.40
108
GRIZZLY.COM LABEL 10",BEIGE
Price
N/A
109
EYE/HEARING LABEL
Price
$5.65
110
CRUSHING HAZARD LABEL
Price
$5.65
111
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
T27620 MANUAL MFD-03.16 V1.04.16
Price
$14.65
