Parts for T27621 - 32" Professional English Wheel

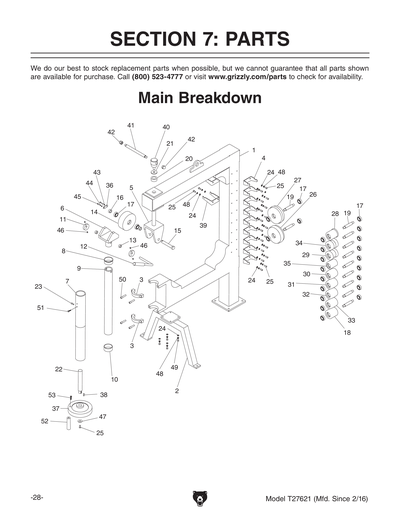

Part Diagram for T27621
Part Diagram for T27621
Part Diagram for T27621
Part Diagram for T27621
Part Diagram for T27621
Part Diagram for T27621

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

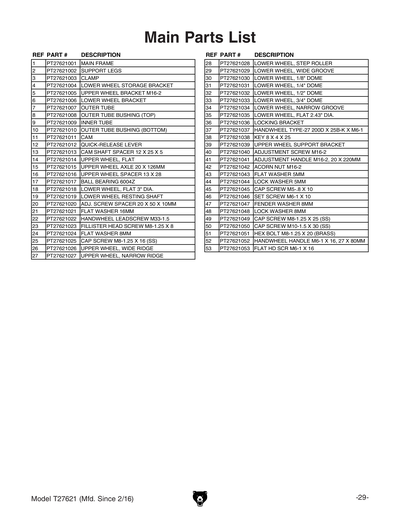

Ref #
Part #
Description
1
MAIN FRAME
Price
$1,142.85
2
SUPPORT LEGS
Price
$116.45
3
CLAMP
Price
$47.45
4
LOWER WHEEL STORAGE BRACKET
Price
$6.50
5
UPPER WHEEL BRACKET M16-2
Price
$241.50
6
LOWER WHEEL BRACKET
Price
$172.50
7
OUTER TUBE
Price
$297.60
8
OUTER TUBE BUSHING (TOP)
Price
$21.60
9
INNER TUBE
Price
$172.50
10
OUTER TUBE BUSHING (BOTTOM)
Price
$15.15
11
CAM
Price
$15.15
12
QUICK-RELEASE LEVER
Price
$53.95
13
CAM SHAFT SPACER 12 X 25 X 5
Price
$6.50
14
UPPER WHEEL, FLAT
Price
$467.95
15
UPPER WHEEL AXLE 20 X 126MM
Price
$46.40
16
UPPER WHEEL SPACER 13 X 28
Price
$6.50
17
BALL BEARING 6004Z
Price
N/A
18
LOWER WHEEL, FLAT 3" DIA.
Price
$172.50
19
LOWER WHEEL RESTING SHAFT
Price
$19.45
20
ADJ. SCREW SPACER 20 X 50 X 10MM
Price
$9.75
21
FLAT WASHER 16MM
Price
N/A
22
HANDWHEEL LEADSCREW M33-1.5
Price
$58.25
23
FILLISTER HEAD SCREW M8-1.25 X 8
Price
$3.65
24
FLAT WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 16 (SS)
Price
$1.90
26
UPPER WHEEL, WIDE RIDGE
Price
$405.40
27
UPPER WHEEL, NARROW RIDGE
Price
$405.40
28
LOWER WHEEL, STEP ROLLER
Price
$172.50
29
LOWER WHEEL, WIDE GROOVE
Price
$172.50
30
LOWER WHEEL, 1/8" DOME
Price
$172.50
31
LOWER WHEEL, 1/4" DOME
Price
$172.50
32
LOWER WHEEL, 1/2" DOME
Price
$172.50
33
LOWER WHEEL, 3/4" DOME
Price
$172.50
34
LOWER WHEEL, NARROW GROOVE
Price
$172.50
35
LOWER WHEEL, FLAT 2.43" DIA.
Price
$172.50
36
LOCKING BRACKET
Price
$4.35
37
HANDWHEEL TYPE-27 200D X 25B-K X M6-1
Price
$45.35
38
KEY 8 X 4 X 25
Price
$1.90
39
UPPER WHEEL SUPPORT BRACKET
Price
$8.65
40
ADJUSTMENT SCREW M16-2
Price
$38.85
41
ADJUSTMENT HANDLE M16-2, 20 X 220MM
Price
$19.45
42
ACORN NUT M16-2
Price
N/A
43
FLAT WASHER 5MM
Price
N/A
44
LOCK WASHER 5MM
Price
N/A
45
CAP SCREW M5-.8 X 10
Price
N/A
46
SET SCREW M6-1 X 10
Price
N/A
47
FENDER WASHER 8MM
Price
N/A
48
LOCK WASHER 8MM
Price
N/A
49
CAP SCREW M8-1.25 X 25 (SS)
Price
$1.90
50
CAP SCREW M10-1.5 X 30 (SS)
Price
$1.90
51
HEX BOLT M8-1.25 X 20 (BRASS)
Price
$4.35
52
HANDWHEEL HANDLE M6-1 X 16, 27 X 80MM
Price
$8.65
53
FLAT HD SCR M6-1 X 16
Price
N/A

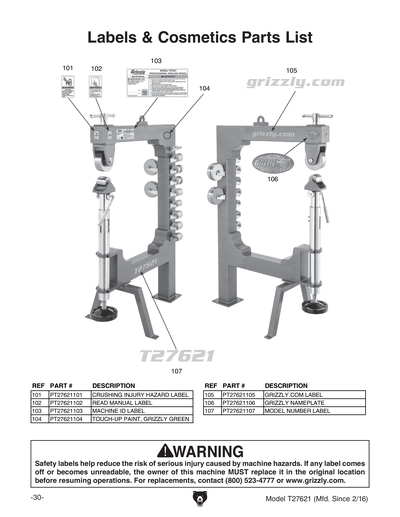

101
SLIP ROLL WARNING 1.5W X 2.5H
Price
N/A
102
READ MANUAL 1.5W X 2.5H
Price
N/A
103
MACHINE ID LABEL
Price
$16.40
104
N/S GRIZZLY GREEN G1023S
Price
N/A
105
GRIZZLY.COM LABEL 13.5",BEIGE
Price
N/A
106
Nameplate - Mini
Price
N/A
107
MODEL NUMBER LABEL
Price
$7.50
MAN
MANUAL T27621 MFD-02.16 V1.05.16
Price
$14.65
