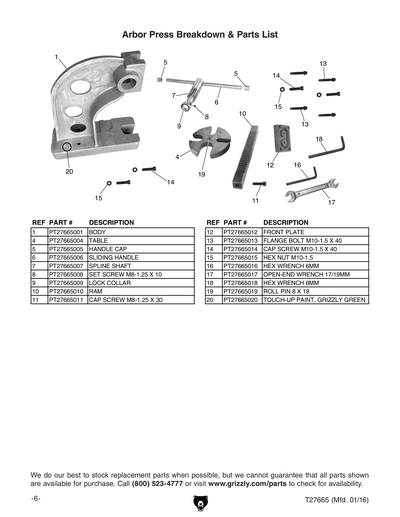

Parts for T27665 5 Ton Arbor Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BODY
4
TABLE
5
HANDLE CAP
6
SLIDING HANDLE
7
SPLINE SHAFT
8
SET SCREW M8-1.25 X 10
Price
N/A
9
LOCK COLLAR
10
RAM
11
CAP SCREW M8-1.25 X 30
Price
N/A
12
FRONT PLATE
13
FLANGE BOLT M10-1.5 X 40
Price
N/A
14
CAP SCREW M10-1.5 X 40
Price
N/A
15
Now: PN02M
HEX NUT M10-1.5
Price
N/A
16
HEX WRENCH 6MM
Price
N/A
17
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
18
HEX WRENCH 8MM
Price
N/A
19
ROLL PIN 8 X 18
Price
N/A
20
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T27665 MFD-04.16 V1.05.16
