Parts for T27978 - 50 Ton Air/Hydraulic Shop Press

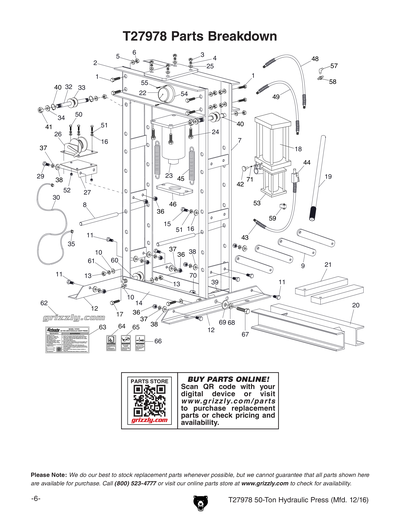

Part Diagram for T27978
Part Diagram for T27978
Part Diagram for T27978
Part Diagram for T27978

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEX BOLT M22-2.5 X 50
Price
$6.90
2
CROSS BEAM
Price
$349.35
3
HEX NUT M14-2
Price
N/A
4
LOCK WASHER 14MM
Price
N/A
5
FLAT WASHER 22MM
Price
N/A
6
HEX NUT M22-2.5
Price
$4.70
7
COLUMN
Price
$127.10
8
PRESS BED SUPPORT ROD
Price
$26.75
9
ANGLE SUPPORT BAR
Price
$12.95
10
FLAT WASHER 12MM
Price
N/A
11
HEX BOLT M10-1.5 X 25
Price
N/A
12
BASE SUPPORT
Price
$43.15
13
HEX NUT M12-1.75
Price
N/A
14
CROSS SUPPORT
Price
$53.95
15
HEX BOLT M10-1.5 X 25
Price
N/A
16
FLAT WASHER 10MM
Price
N/A
17
HEX BOLT M12-1.75 X 30
Price
N/A
18
HYDRAULIC RESERVOIR W/AIR CYLINDER ASSY
Price
$579.35
18-1
PUMP SEAL KIT
Price
$67.95
18-2
VALVE
Price
$6.70
18-3
ADAPTOR
Price
$5.40
18-4
SEAL (RUBBER)
Price
$2.70
19
HANDLE 13/16"D X 26-3/8"L
Price
$24.60
20
PRESS BED
Price
$332.10
21
PRESS BLOCK (1PC)
Price
$53.95
22
PRESSURE GAUGE W/ RING
Price
$102.85
23
HYDRAULIC RAM
Price
$267.40
23-1
RAM INSERT COLLAR
Price
$22.35
24
HEX BOLT M14-2 X 65
Price
N/A
25
FLAT WASHER 14MM
Price
N/A
26
WINCH 1000LB.
Price
$55.75
27
WINCH BRACKET
Price
$7.95
29
HEX BOLT M10-1.5 X 30
Price
N/A
30
STEEL WINCH CABLE 5MM
Price
$57.10
32
PULLEY SHAFT M14-1.75, 20 X 210 DE
Price
$16.60
33
CABLE PULLEY (UPPER)
Price
$16.20
34
FLAT WASHER 14MM
Price
N/A
35
CABLE BLOCK
Price
$62.60
36
HEX NUT M10-1.5
Price
N/A
37
LOCK WASHER 10MM
Price
N/A
38
FLAT WASHER 10MM
Price
N/A
39
CABLE PULLEY (LOWER)
Price
$16.20
40
EXT RETAINING RING 20MM
Price
N/A
41
HEX NUT M14-2
Price
N/A
42
KNURLED KNOB M10-1.5 X 38L X 40D
Price
$7.15
42-1
HANDLE LINKAGE
Price
$14.10
43
AIR HOSE 1/4" ID 300-PSI 48"L
Price
$29.00
44
PNEUMATIC HAND VALVE 1/4" NPT
Price
$20.10
45
EXTENSION SPRING 1-3/4" X 11" X 1/4"
Price
$37.95
46
EXTENSION SPRING PLATE
Price
$111.45
47
OVERFLOW HOSE 5/16" OD X 27"L
Price
$6.50
48
HYDRAULIC LINE 1/4" ID 1,000-PSI 30"L
Price
$93.65
49
HYDRAULIC LINE 1/4" ID 1,000-PSI 40"L
Price
$53.50
50
HEX BOLT M8-1.25 X 15
Price
N/A
51
LOCK WASHER 10MM
Price
N/A
52
HEX NUT M8-1.25
Price
N/A
53
HYDRAULIC RESERVOIR W/AIR CYLINDER ASSY
Price
N/A
54
PRESSURE GAUGE W/ RING
Price
N/A
55
PHLP HD SCR M6-1 X 8
Price
N/A
56
AIR LINE LOCK FITTING M10-1.5
Price
$8.65
57
90-DEG ELBOW FITTING 3/8" BRASS
Price
$10.85
58
STRAIGHT FITTING 3/8" BRASS
Price
$44.60
59
90-DEGREE BLOCK FITTING 1/2"
Price
$10.85
60
LOWER PULLEY SHAFT M12-1.75 X 25 SE
Price
$16.60
61
LOCK WASHER 12MM
Price
N/A
62
GRIZZLY.COM LABEL 13.25",BEIGE
Price
N/A
63
MACHINE ID LABEL
Price
$16.40
64
READ MANUAL 1.5W X 2.5H
Price
N/A
65
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
66
AIR DISCONNECT WARNING LABEL
Price
$1.25
67
HEX BOLT M12-1.75 X 35
Price
N/A
68
LOCK WASHER 16MM
Price
N/A
69
FLAT WASHER 16MM
Price
N/A
70
HEX NUT M16-2
Price
N/A
71
STEEL BALL 6MM
Price
N/A
MAN
T27978 MANUAL MFD.-06.17 V1.06.17
Price
$14.65
