Parts for T28048 - Portable Series Router Table

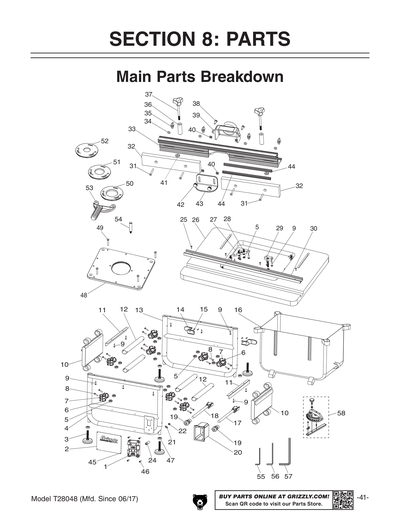

Part Diagram for T28048
Part Diagram for T28048
Part Diagram for T28048
Part Diagram for T28048

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

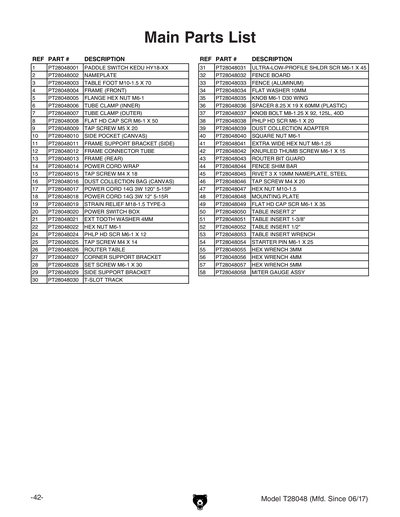

Ref #
Part #
Description
1
PADDLE SWITCH KEDU HY18-XX
Price
$14.60
2
Price
$7.60
3
TABLE FOOT M10-1.5 X 70
Price
$4.70
4
Price
$39.95
5
Price
$1.90
6
Price
$1.90
7
Price
$1.90
8
FLAT HD CAP SCR M6-1 X 50
Price
$1.90
9
TAP SCREW M5 X 20
Price
N/A
10
Price
$5.75
11
FRAME SUPPORT BRACKET (SIDE)
Price
$3.65
12
Price
$3.65
13
Price
$40.65
14
Price
$2.60
15
TAP SCREW M4 X 18
Price
N/A
16
DUST COLLECTION BAG (CANVAS)
Price
$12.15
17
POWER CORD 14G 3W 120" 5-15P
Price
$22.35
18
POWER CORD 14G 3W 12" 5-15R
Price
$5.10
19
STRAIN RELIEF M18-1.5 TYPE-3
Price
$1.90
20
Price
$5.10
21
EXT TOOTH WASHER 4MM
Price
N/A
22
HEX NUT M6-1
Price
N/A
24
PHLP HD SCR M6-1 X 12
Price
N/A
25
TAP SCREW M4 X 14
Price
N/A
26
Price
$149.60
27
Price
$1.90
28
SET SCREW M6-1 X 30
Price
N/A
29
Price
$1.90
30
Price
$11.50
31
ULTRA-LOW-PROFILE SHLDR SCR M6-1 X 45
Price
$1.90
32
Price
$16.20
33
Price
$126.20
34
FLAT WASHER 10MM
Price
N/A
35
Price
$3.25
36
SPACER 8.25 X 19 X 60MM (PLASTIC)
Price
$4.70
37
KNOB BOLT M8-1.25 X 92, 125L, 40D
Price
$3.65
38
PHLP HD SCR M6-1 X 20
Price
N/A
39
DUST COLLECTION ADAPTER
Price
$4.00
40
SQUARE NUT M6-1
Price
N/A
41
EXTRA WIDE HEX NUT M8-1.25
Price
$1.90
42
KNURLED THUMB SCREW M6-1 X 15
Price
$1.90
43
Price
$4.00
44
Price
$4.70
45
RIVET 3 X 10MM NAMEPLATE, STEEL
Price
N/A
46
TAP SCREW M4 X 20
Price
N/A
47
HEX NUT M10-1.5
Price
N/A
48
Price
$141.10
49
FLAT HD CAP SCR M6-1 X 35
Price
N/A
50
TABLE INSERT 3-PC SET
Price
N/A
50A
Price
$10.85
51
TABLE INSERT 3-PC SET
Price
N/A
52
TABLE INSERT 3-PC SET
Price
N/A
55
HEX WRENCH 3MM
Price
N/A
56
HEX WRENCH 4MM
Price
N/A
57
HEX WRENCH 5MM
Price
N/A
58
Price
$29.15
MAN
MANUAL T28048 MFD-08.17 V1.08.17
Price
$14.65
