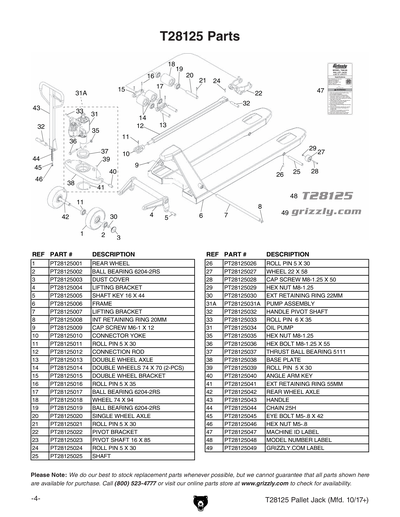

Parts for T28125 Pallet Jack, 6600 Lb. Capacity

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
REAR WHEEL
2
BALL BEARING 6204-2RS
Price
N/A
3
DUST COVER
4
LIFTING BRACKET
5
SHAFT KEY 16 X 44
6
FRAME
7
PIVOT PIN
8
Now: PR83M
INT RETAINING RING 20MM
Price
N/A
9
CAP SCREW M6-1 X 12
Price
N/A
10
CONNECTOR YOKE
11
ROLL PIN 5 X 30
Price
N/A
12
CONNECTION ROD
13
DOUBLE WHEEL AXLE
14
DOUBLE WHEELS 74 X 70 (2-PCS)
15
DOUBLE WHEEL BRACKET
16
ROLL PIN 5 X 35
Price
N/A
17
BALL BEARING 6204-2RS
Price
N/A
18
WHEEL 74 X 94
19
BALL BEARING 6204-2RS
Price
N/A
20
SINGLE WHEEL AXLE
21
ROLL PIN 5 X 30
Price
N/A
22
PIVOT BRACKET
23
PIVOT SHAFT 16 X 85
24
ROLL PIN 5 X 30
Price
N/A
25
SHAFT
26
ROLL PIN 5 X 30
Price
N/A
27
WHEEL 22 X 58
28
CAP SCREW M8-1.25 X 50
Price
N/A
29
Now: PN03M
HEX NUT M8-1.25
Price
N/A
30
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
31A
PUMP ASSEMBLY
32
HANDLE PIVOT SHAFT
33
ROLL PIN 6 X 35
Price
N/A
35
Now: PN03M
HEX NUT M8-1.25
Price
N/A
36
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
39
ROLL PIN 5 X 30
Price
N/A
41
Now: PR78M
EXT RETAINING RING 55MM
Price
N/A
42
REAR WHEEL AXLE
43
HANDLE
44
CHAIN 25H
45
EYE BOLT M5-.8 X 42
46
Now: PN06M
HEX NUT M5-.8
Price
N/A
47
MACHINE ID LABEL
48
MODEL NUMBER LABEL
49
GRIZZLY.COM LABEL 10.5",BEIGE
Price
N/A
MAN
MANUAL T28125 MFD-10.17 V1.11.17
