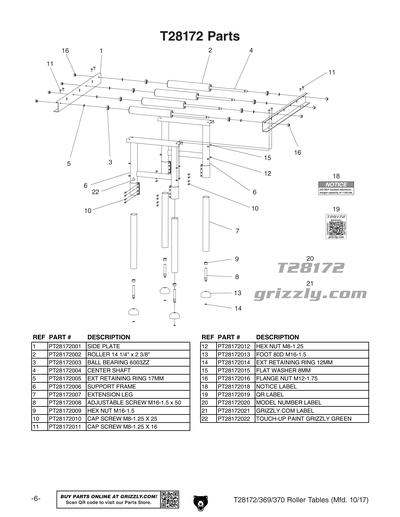

Parts for T28172 14" x 39" Heavy-Duty Roller Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SIDE PLATE
2
ROLLER 14 1/4" x 2 3/8"
3
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
4
CENTER SHAFT
5
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
6
SUPPORT FRAME
7
EXTENSION LEG
8
ADJUSTABLE SCREW M16-1.5 x 50
9
Now: PN05M
HEX NUT M16-1.5
Price
N/A
10
CAP SCREW M8-1.25 X 25
Price
N/A
11
CAP SCREW M8-1.25 X 16
Price
N/A
12
Now: PN03M
HEX NUT M8-1.25
Price
N/A
13
FOOT 80D M16-1.5
14
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
15
Now: PW01M
FLAT WASHER 8MM
Price
N/A
16
FLANGE NUT M12-1.75
18
NOTICE LABEL
19
QR LABEL
20
MODEL NUMBER LABEL
21
GRIZZLY.COM LABEL 11.5",BEIGE
Price
N/A
22
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T28172 MFD-10.17 V1.11.17
