Parts for T28325 - 59" 18-Gauge Pan and Box Brake

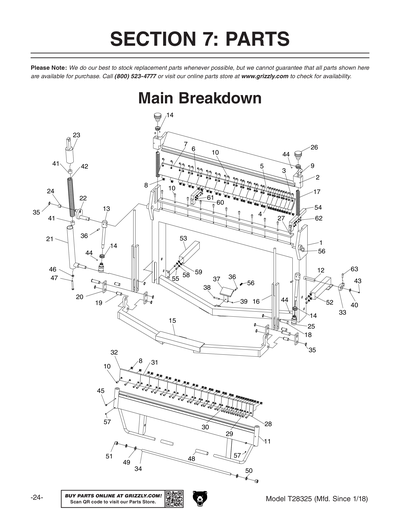

Part Diagram for T28325
Part Diagram for T28325
Part Diagram for T28325
Part Diagram for T28325
Part Diagram for T28325
Part Diagram for T28325

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

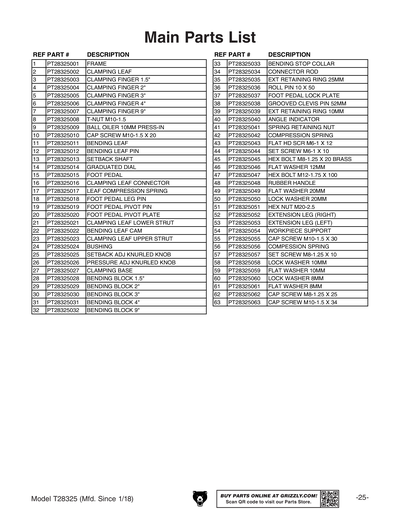

Ref #
Part #
Description
1
Price
$2,522.85
2
Price
$905.65
3
Price
$28.10
4
Price
$32.40
5
Price
$38.85
6
Price
$43.15
7
Price
$107.85
8
Price
$4.35
9
BALL OILER 10MM PRESS-IN
Price
N/A
10
CAP SCREW M10-1.5 X 20
Price
N/A
11
Price
$668.45
12
Price
$10.85
13
Price
$86.95
14
Price
$19.45
15
Price
$248.00
16
CLAMPING LEAF CONNECTOR
Price
$133.70
17
LEAF COMPRESSION SPRING
Price
$49.65
18
Price
$12.95
19
Price
$8.65
20
Price
$17.25
21
CLAMPING LEAF LOWER STRUT
Price
$102.50
22
Price
$49.65
23
CLAMPING LEAF UPPER STRUT
Price
$71.35
24
Price
$6.50
25
SETBACK ADJ KNURLED KNOB
Price
$51.75
26
PRESSURE ADJ KNURLED KNOB
Price
$62.60
27
Price
$409.70
28
Price
$23.75
29
Price
$30.20
30
Price
$35.65
31
Price
$43.15
32
Price
$103.50
33
Price
$19.45
34
Price
$53.95
35
EXT RETAINING RING 25MM
Price
N/A
36
ROLL PIN 10 X 50
Price
N/A
37
Price
$60.40
38
GROOVED CLEVIS PIN 52MM
Price
$4.35
39
EXT RETAINING RING 10MM
Price
N/A
40
Price
$2.20
41
Price
$11.65
42
Price
$86.95
43
FLAT HD SCR M6-1 X 12
Price
N/A
44
SET SCREW M6-1 X 10
Price
N/A
45
HEX BOLT M8-1.25 X 20
Price
N/A
46
FLAT WASHER 12MM
Price
N/A
47
HEX BOLT M12-1.75 X 100
Price
N/A
48
Price
$4.35
49
FLAT WASHER 20MM
Price
N/A
50
LOCK WASHER 20MM
Price
N/A
51
HEX NUT M20-2.5
Price
N/A
52
Price
$49.65
53
Price
$49.65
54
Price
$43.15
55
CAP SCREW M10-1.5 X 30
Price
N/A
56
Price
$1.90
57
SET SCREW M8-1.25 X 10
Price
N/A
58
LOCK WASHER 10MM
Price
N/A
59
FLAT WASHER 10MM
Price
N/A
60
LOCK WASHER 8MM
Price
N/A
61
FLAT WASHER 8MM
Price
N/A
62
CAP SCREW M8-1.25 X 25
Price
N/A
63
Price
$1.90

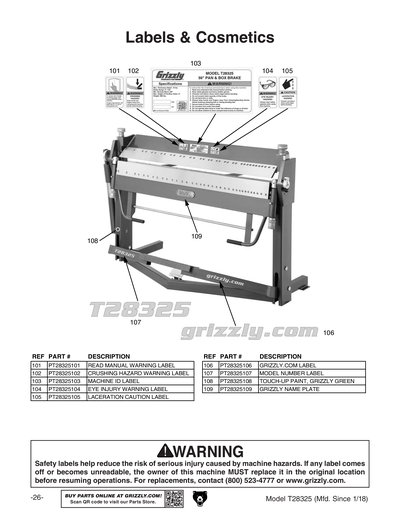

101
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
102
CRUSHING HAZARD WARNING LABEL
Price
$3.75
103
Price
$16.40
104
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
105
LACERATION CAUTION LABEL
Price
$3.75
106
GRIZZLY.COM LABEL 10.5",BEIGE
Price
N/A
107
Price
$7.50
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
Oblong Nameplate-Small
Price
N/A
MAN
MANUAL T28325 MFD-12/17 V1.04.18
Price
$14.65
