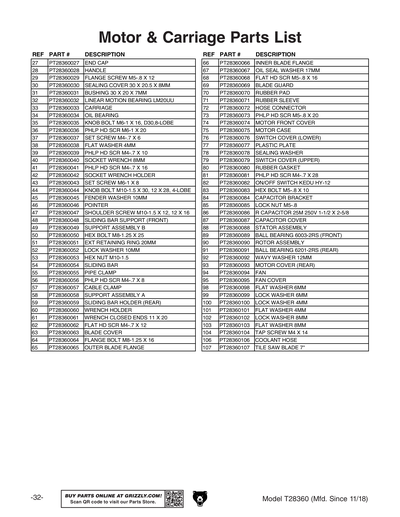

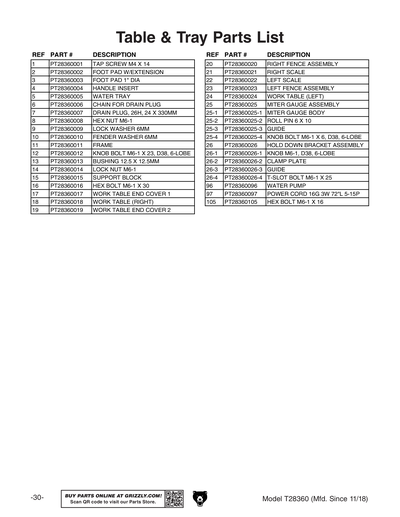

Parts for T28360 - 7" Overhead Wet-Cutting Tile Saw

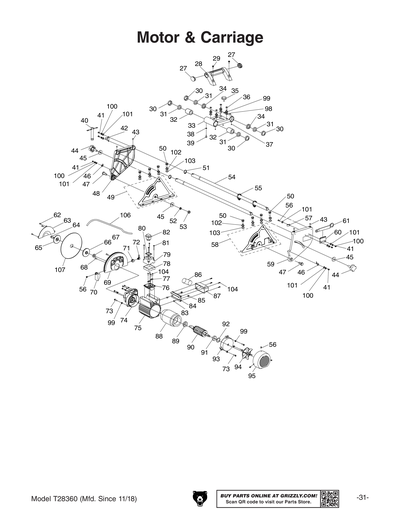

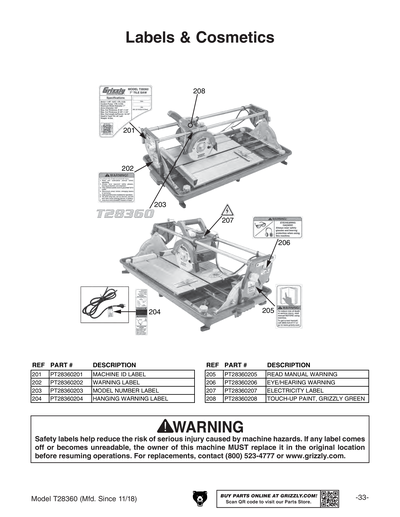

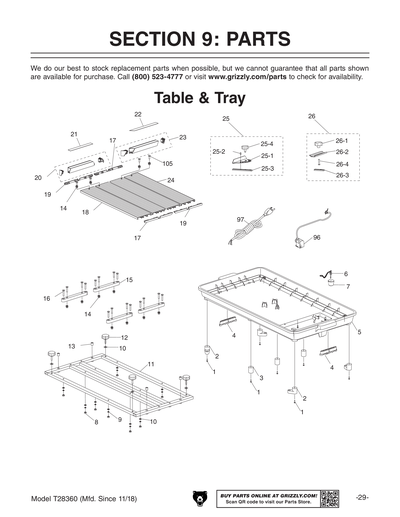

Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360
Part Diagram for T28360

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
TAP SCREW M4 X 14
Price
N/A
2
Price
$3.05
3
Price
$2.20
4
Price
$2.45
5
Price
$96.35
6
Price
$1.60
7
DRAIN PLUG, 26H, 24 X 330MM
Price
$2.45
8
HEX NUT M6-1
Price
N/A
9
LOCK WASHER 6MM
Price
N/A
10
FENDER WASHER 6MM
Price
N/A
11
Price
$71.25
12
KNOB BOLT M6-1 X 23, D38, 6-LOBE
Price
$2.75
13
Price
$3.05
14
LOCK NUT M6-1
Price
N/A
15
Price
$12.75
16
HEX BOLT M6-1 X 30
Price
N/A
17
Price
$1.60
18
Price
$34.15
19
Price
$1.60
20
Price
$6.05
21
Price
$1.60
22
Price
$1.60
23
Price
$5.15
24
Price
$34.15
25
Price
$8.50
25-1
Price
$3.65
25-2
Price
$1.60
25-3
Price
$3.95
25-4
KNOB BOLT M6-1 X 6, D38, 6-LOBE
Price
$1.60
26
HOLD DOWN BRACKET ASSEMBLY
Price
$8.20
26-1
Price
$1.60
26-2
Price
$5.60
26-3
Price
$3.85
26-4
Price
$1.60
27
Price
$1.60
28
Price
$2.20
29
FLANGE SCREW M5-.8 X 12
Price
N/A
30
SEALING COVER 30 X 20.5 X 8MM
Price
$5.50
31
Price
$3.05
32
LINEAR MOTION BEARING LM20UU
Price
$12.10
33
Price
$32.65
34
Price
$3.05
35
KNOB BOLT M6-1 X 16, D30, 8-LOBE
Price
$1.60
36
PHLP HD SCR M6-1 X 20
Price
N/A
37
SET SCREW M4-.7 X 6
Price
N/A
38
FLAT WASHER 4MM
Price
N/A
39
PHLP HD SCR M4-.7 X 10
Price
N/A
40
Price
$2.45
41
PHLP HD SCR M4-.7 X 16
Price
N/A
42
Price
$4.10
43
SET SCREW M6-1 X 8
Price
N/A
44
KNOB BOLT M10-1.5 X 30, 12 X 28, 4-LOBE
Price
$2.20
45
FENDER WASHER 10MM
Price
N/A
46
Price
$3.05
47
SHOULDER SCREW M10-1.5 X 12, 12 X 16
Price
$3.40
48
SLIDING BAR SUPPORT (FRONT)
Price
$26.00
49
Price
$18.75
50
HEX BOLT M8-1.25 X 25
Price
N/A
51
EXT RETAINING RING 20MM
Price
N/A
52
LOCK WASHER 10MM
Price
N/A
53
HEX NUT M10-1.5
Price
N/A
54
Price
$74.90
55
Price
$1.60
56
PHLP HD SCR M4-.7 X 8
Price
N/A
57
Price
$1.60
58
Price
$18.75
59
SLIDING BAR HOLDER (REAR)
Price
$27.55
60
Price
$2.45
61
WRENCH CLOSED ENDS 11 X 20
Price
$2.20
62
FLAT HD SCR M4-.7 X 12
Price
N/A
63
Price
$2.45
64
FLANGE BOLT M8-1.25 X 16
Price
N/A
65
Price
$2.75
66
Price
$7.90
67
Price
$1.60
68
FLAT HD SCR M5-.8 X 16
Price
N/A
69
Price
$16.65
70
Price
$1.60
71
Price
$1.60
72
Price
$1.60
73
PHLP HD SCR M5-.8 X 20
Price
N/A
74
Price
$13.05
75
Price
$30.55
76
Price
$1.85
77
Price
$1.60
78
Price
$1.60
79
Price
$3.05
80
Price
$1.60
81
Price
$1.60
82
ON/OFF SWITCH KEDU HY-12
Price
$8.20
83
HEX BOLT M5-.8 X 10
Price
N/A
85
LOCK NUT M5-.8
Price
N/A
86
R CAPACITOR 25M 250V 1-1/2 X 2-5/8
Price
$7.25
87
Price
$1.85
88
Price
$69.50
89
BALL BEARING 6003-2RS
Price
N/A
90
Price
$46.85
91
BALL BEARING 6201-2RS
Price
N/A
92
Price
$1.60
93
Price
$9.40
94
Price
$1.60
95
Price
$1.85
96
Price
$41.10
97
POWER CORD 18G 3W 72" 5-15P
Price
$13.05
98
FLAT WASHER 6MM
Price
N/A
99
LOCK WASHER 6MM
Price
N/A
100
LOCK WASHER 4MM
Price
N/A
101
FLAT WASHER 4MM
Price
N/A
102
LOCK WASHER 8MM
Price
N/A
103
FLAT WASHER 8MM
Price
N/A
104
TAP SCREW M4 X 14
Price
N/A
105
HEX BOLT M6-1 X 18
Price
N/A
106
Price
$3.05
107
7" Tile Saw Blade
Price
N/A
201
Price
$16.40
201V2
MACHINE ID LABEL V2.05.24
Price
$16.40
201V3
MACHINE ID LABEL V3.07.24
Price
$16.40
202
Price
$1.05
203
Price
$1.05
204
Price
$1.05
205
READ MANUAL 1.5W X 2.5H
Price
N/A
206
EYE/EAR/LUNG WARNING LABEL
Price
$1.60
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T28360 MFD-11.18-04.24 V1.12.18
Price
$5.00
MANV2
MANUAL T28360 MFD-05.24+ V2.04.24
Price
$22.80
