Parts for T28366 - 10" Slow-Speed Cold-Cut Saw

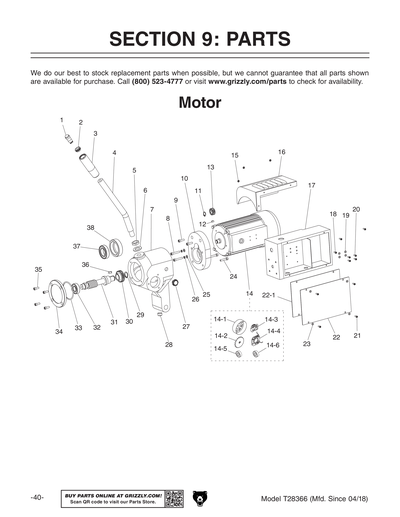

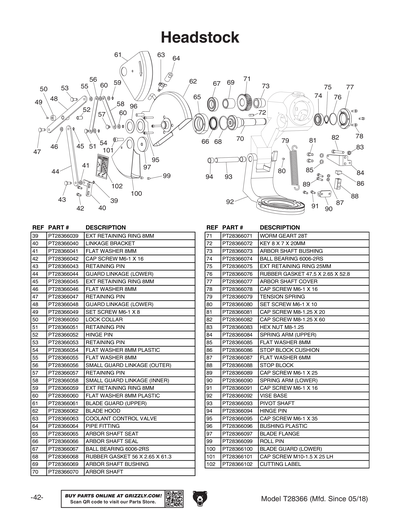

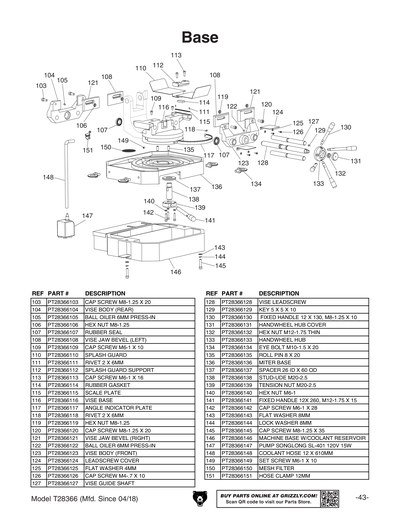

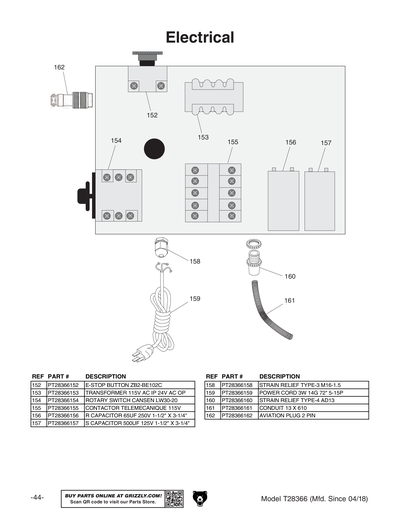

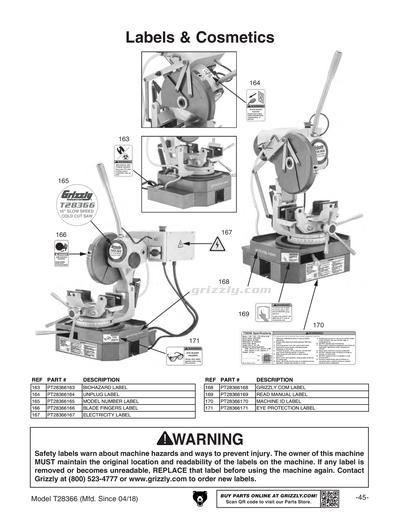

Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366
Part Diagram for T28366

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

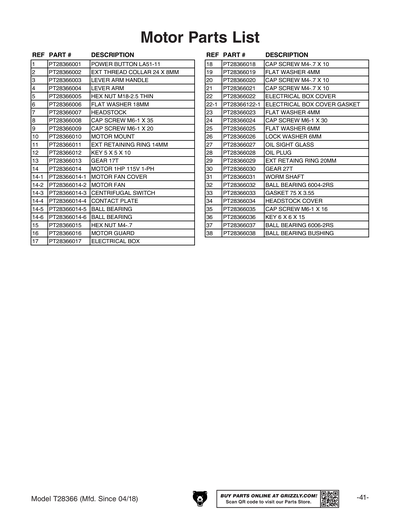

Ref #
Part #
Description
1
POWER BUTTON LA51-11
Price
$33.45
2
EXT THREAD COLLAR 24 X 8MM
Price
$18.00
3
LEVER ARM HANDLE
Price
$35.95
4
LEVER ARM
Price
$82.70
5
HEX NUT M18-2.5 THIN
Price
$2.60
6
FLAT WASHER 18MM
Price
N/A
7
HEADSTOCK
Price
$281.10
8
CAP SCREW M6-1 X 35
Price
N/A
9
CAP SCREW M6-1 X 20
Price
N/A
10
MOTOR MOUNT
Price
$93.85
11
EXT RETAINING RING 14MM
Price
$2.25
12
KEY 5 X 5 X 10
Price
N/A
13
GEAR 17T
Price
$40.25
14
MOTOR 1HP 115V 1-PH
Price
$490.20
14-1
MOTOR FAN COVER
Price
$27.00
14-2
MOTOR FAN
Price
$29.00
14-3
CENTRIFUGAL SWITCH
Price
$35.95
14-4
CONTACT PLATE
Price
$31.35
14-5
BALL BEARING 6203ZZ
Price
N/A
14-6
BALL BEARING 6203ZZ
Price
N/A
15
HEX NUT M16-1.5
Price
N/A
16
MOTOR GUARD
Price
$24.85
17
ELECTRICAL BOX
Price
$44.60
18
CAP SCREW M4-.7 X 10
Price
N/A
19
FLAT WASHER 4MM
Price
N/A
20
CAP SCREW M4-.7 X 10
Price
N/A
21
CAP SCREW M4-.7 X 10
Price
N/A
22
ELECTRICAL BOX COVER
Price
$13.70
22-1
ELECTRICAL BOX COVER GASKET
Price
$6.90
23
FLAT WASHER 4MM
Price
N/A
24
CAP SCREW M6-1 X 30
Price
N/A
25
FLAT WASHER 6MM
Price
N/A
26
LOCK WASHER 6MM
Price
N/A
27
OIL SIGHT GLASS
Price
$7.20
28
OIL PLUG
Price
$5.45
29
EXT RETAINING RING 20MM
Price
N/A
30
GEAR 27T
Price
$80.50
31
WORM SHAFT
Price
$120.40
32
BALL BEARING 6004-2RS
Price
N/A
33
RUBBER GASKET 75 X 3.55 X 82.1
Price
$6.15
34
HEADSTOCK COVER
Price
$35.95
35
CAP SCREW M6-1 X 16
Price
N/A
36
KEY 6 X 6 X 15
Price
N/A
37
BALL BEARING 6006-2RS
Price
N/A
38
BALL BEARING BUSHING
Price
$21.05
39
EXT RETAINING RING 8MM
Price
$1.90
40
LINKAGE BRACKET
Price
$8.35
41
FLAT WASHER 8MM
Price
N/A
42
CAP SCREW M6-1 X 16
Price
N/A
43
RETAINING PIN
Price
$7.20
44
GUARD LINKAGE (LOWER)
Price
$11.20
45
EXT RETAINING RING 8MM
Price
N/A
46
FLAT WASHER 8MM
Price
N/A
47
RETAINING PIN
Price
$7.20
48
GUARD LINKAGE (LOWER)
Price
$11.20
49
SET SCREW M6-1 X 8
Price
N/A
50
LOCK COLLAR
Price
$5.45
51
RETAINING PIN
Price
$7.20
52
HINGE PIN
Price
$5.45
53
RETAINING PIN
Price
$7.20
54
FLAT WASHER 8MM PLASTIC
Price
$4.70
55
FLAT WASHER 8MM
Price
N/A
56
SMALL GUARD LINKAGE (OUTER)
Price
$9.00
57
RETAINING PIN
Price
$7.20
58
SMALL GUARD LINKAGE (INNER)
Price
$9.00
59
EXT RETAINING RING 8MM
Price
N/A
60
FLAT WASHER 8MM PLASTIC
Price
N/A
61
BLADE GUARD (UPPER)
Price
$40.25
62
BLADE HOOD
Price
$44.60
63
COOLANT CONTROL VALVE
Price
$13.70
64
PIPE FITTING
Price
$9.00
65
ARBOR SHAFT SEAT
Price
$35.95
66
ARBOR SHAFT SEAL
Price
$11.65
67
BALL BEARING 6006-2RS
Price
N/A
68
RUBBER GASKET 56 X 2.65 X 61.3
Price
$5.85
69
ARBOR SHAFT BUSHING
Price
$22.35
70
ARBOR SHAFT
Price
$107.15
71
WORM GEART 28T
Price
$200.60
72
KEY 8 X 7 X 20MM
Price
$1.90
73
ARBOR SHAFT BUSHING
Price
$20.15
74
BALL BEARING 6006-2RS
Price
N/A
75
EXT RETAINING RING 25MM
Price
N/A
76
RUBBER GASKET 47.5 X 2.65 X 52.8
Price
$6.15
77
ARBOR SHAFT COVER
Price
$18.00
78
CAP SCREW M6-1 X 16
Price
N/A
79
TENSION SPRING
Price
$20.15
80
SET SCREW M6-1 X 10
Price
N/A
81
CAP SCREW M8-1.25 X 20
Price
N/A
82
CAP SCREW M8-1.25 X 60
Price
N/A
83
HEX NUT M8-1.25
Price
N/A
84
SPRING ARM (UPPER)
Price
$15.85
85
FLAT WASHER 8MM
Price
N/A
86
STOP BLOCK CUSHION
Price
$4.70
87
FLAT WASHER 6MM
Price
N/A
88
STOP BLOCK
Price
$16.20
89
CAP SCREW M6-1 X 25
Price
N/A
90
SPRING ARM (LOWER)
Price
$9.00
91
CAP SCREW M6-1 X 16
Price
N/A
92
VISE BASE
Price
$401.10
93
PIVOT SHAFT
Price
$41.40
94
HINGE PIN
Price
$4.70
95
CAP SCREW M6-1 X 35
Price
N/A
96
BUSHING PLASTIC
Price
$4.70
97
BLADE FLANGE
Price
$16.20
99
ROLL PIN
Price
$5.45
100
BLADE GUARD (LOWER)
Price
$44.60
101
CAP SCREW M10-1.5 X 30
Price
N/A
102
CUTTING LABEL
Price
$6.25
103
CAP SCREW M8-1.25 X 20
Price
N/A
104
VISE BODY (FRONT/REAR)
Price
N/A
105
BALL OILER 6MM PRESS-IN
Price
N/A
106
HEX NUT M8-1.25
Price
N/A
107
RUBBER SEAL
Price
$9.00
108
VISE JAW BEVEL (LEFT)
Price
$44.60
109
CAP SCREW M6-1 X 10
Price
N/A
110
SPLASH GUARD
Price
$22.35
111
RIVET 2 X 6MM BLIND, BRASS
Price
N/A
112
SPLASH GUARD SUPPORT
Price
$44.60
113
CAP SCREW M6-1 X 16
Price
N/A
114
RUBBER GASKET
Price
$6.15
115
SCALE PLATE
Price
$13.70
116
VISE BASE
Price
$191.65
117
ANGLE INDICATOR PLATE
Price
$11.65
118
RIVET 2 X 6MM BLIND, BRASS
Price
N/A
119
HEX NUT M8-1.25
Price
N/A
120
CAP SCREW M8-1.25 X 25
Price
N/A
121
VISE JAW BEVEL (RIGHT)
Price
$44.60
122
BALL OILER 6MM PRESS-IN
Price
N/A
123
VISE BODY (FRONT/REAR)
Price
$211.70
124
LEADSCREW COVER
Price
$14.40
125
FLAT WASHER 4MM
Price
N/A
126
CAP SCREW M4-.7 X 10
Price
N/A
127
VISE GUIDE SHAFT
Price
$51.45
128
VISE LEADSCREW
Price
$66.90
129
KEY 5 X 5 X 10
Price
N/A
130
FIXED HANDLE 12 X 130, M8-1.25 X 10
Price
$24.85
131
HANDWHEEL HUB COVER
Price
$11.80
132
HEX NUT M12-1.75 THIN
Price
$4.70
133
HANDWHEEL HUB
Price
$24.85
134
EYE BOLT M10-1.5 X 20
Price
$11.65
135
ROLL PIN 8 X 20
Price
$1.90
136
MITER BASE
Price
$245.15
137
SPACER 26 ID X 60 OD
Price
$40.25
138
STUD-UDE M20-1.5 X 80, 18LH
Price
$13.70
139
TENSION NUT M20-2.5
Price
$24.85
140
HEX NUT M6-1
Price
N/A
141
FIXED HANDLE 12 X 162, M12-1.275 X 15
Price
$58.25
142
CAP SCREW M6-1 X 28
Price
$1.90
143
FLAT WASHER 8MM
Price
N/A
144
LOCK WASHER 8MM
Price
N/A
145
CAP SCREW M8-1.25 X 35
Price
N/A
146
MACHINE BASE W/COOLANT RESERVOIR
Price
$423.40
147
PUMP SONGLONG SL-401 120V 15W
Price
$58.25
148
COOLANT HOSE 12 X 610MM
Price
$9.00
149
SET SCREW M6-1 X 10
Price
N/A
150
MESH FILTER
Price
$4.70
151
HOSE CLAMP 12MM
Price
$5.45
152
E-STOP BUTTON ZB2-BE102C
Price
$35.95
153
TRANSFORMER 115V AC IP 24V AC OP
Price
$49.25
154
ROTARY SWITCH CANSEN LW30-20
Price
$49.25
155
CONTACTOR TELEMECANIQUE 115V
Price
$55.75
156
R CAPACITOR 65UF 250V 1-1/2" X 3-1/4"
Price
$31.35
157
S CAPACITOR 500UF 125V 1-1/2" X 3-1/4"
Price
$31.35
158
STRAIN RELIEF TYPE-3 M16-1.5
Price
N/A
159
POWER CORD 3W 14G 72" 5-15P
Price
$24.85
160
STRAIN RELIEF TYPE-4 AD13
Price
$11.20
161
CONDUIT 13 X 610MM PLASTIC
Price
$18.00
162
AVAIATION PLUG 2 PIN
Price
$44.60
162-1
START BUTTON CORD W/PLUG
Price
$44.60
163
BIOLOGICAL/POISON HAZARD 1.5W X 2.5H
Price
N/A
164
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
165
MODEL NUMBER LABEL
Price
$16.90
166
BLADE FINGERS LABEL
Price
$7.85
167
ELECTRICITY 0.7W X 0.6H
Price
N/A
168
GRIZZLY.COM LABEL 6",BEIGE
Price
N/A
169
READ MANUAL 2.8W X 1.5H
Price
N/A
170
MACHINE ID LABEL
Price
$16.40
171
SAFETY GLASSES 2.8W X 1.5H
Price
N/A
172
N/S GRIZZLY GREEN G1023S
Price
N/A
173
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL T28366 MFD-05.18+ V1.05.18
Price
$18.75
P
CAP SCREW M10-1.5 X 25 LH
Price
$1.90
