Parts for T28781 - Router Table with Lift and Cast-Iron Wings

Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781
Part Diagram for T28781

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

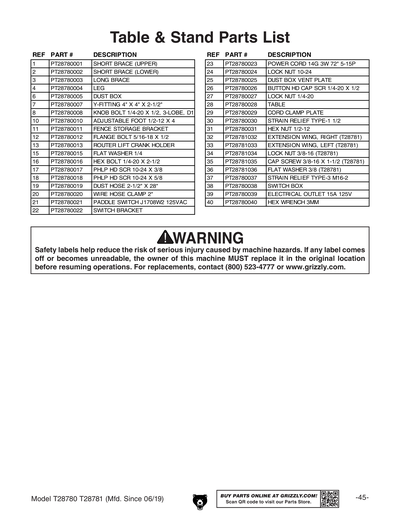

Ref #
Part #
Description

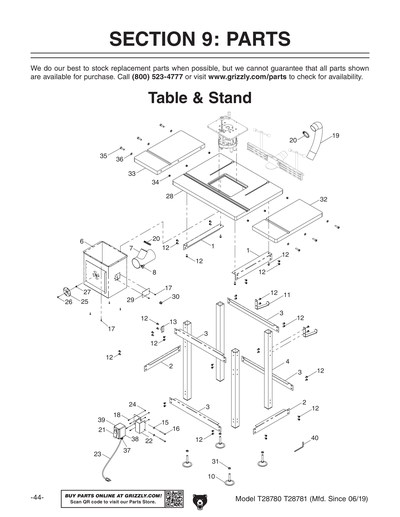

1
SHORT BRACE (UPPER)
Price
N/A
2
SHORT BRACE (LOWER)
Price
N/A
3
LONG BRACE
Price
N/A
6
***SEE EXTENDED DESC***
Price
N/A
7
Y-FITTING 4" X 4" X 2-1/2"
Price
N/A
8
KNOB BOLT 1/4-20 X 1/2, 3-LOBE, D1
Price
N/A
10
ADJUSTABLE FOOT 1/2-12 X 4
Price
N/A
11
FENCE STORAGE BRACKET
Price
N/A
12
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
13
ROUTER LIFT CRANK HOLDER
Price
N/A
15
FLAT WASHER 1/4
Price
N/A
16
HEX BOLT 1/4-20 X 1-1/2
Price
N/A
17
PHLP HD SCR 10-24 X 3/8
Price
N/A
18
PHLP HD SCR 10-24 X 5/8
Price
N/A
19
DUST HOSE 2-1/2" X 28"
Price
N/A
20
2-1/2" Wire Hose Clamp
Price
N/A
21
PADDLE SWITCH J1708W2 125VAC
Price
N/A
22
SWITCH BRACKET
Price
N/A
23
POWER CORD 14G 3W 72" 5-15P
Price
N/A
24
LOCK NUT 10-24
Price
N/A
25
DUST BOX VENT PLATE
Price
N/A
26
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
27
LOCK NUT 10-24
Price
N/A
28
Price
$749.60
29

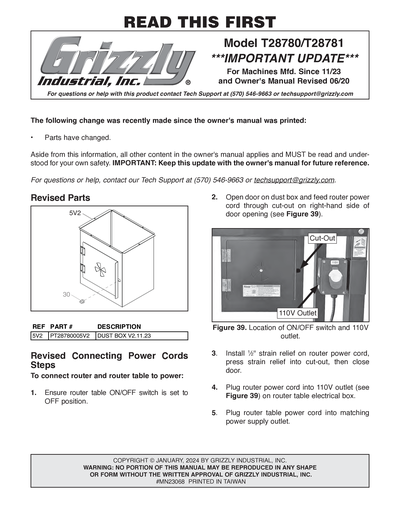

DUST BOX V2.11.23
Price
N/A
30
STRAIN RELIEF TYPE-1 1/2
Price
N/A
31
HEX NUT 1/2-13
Price
N/A
32
Price
$347.80
33
Price
$347.80
34
LOCK NUT 3/8-16
Price
N/A
35
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
36
FLAT WASHER 3/8
Price
N/A
37
STRAIN RELIEF TYPE-3 M16-2
Price
N/A
38
SWITCH BOX
Price
N/A
39
ELECTRICAL OUTLET 15A 125V
Price
N/A
40
HEX WRENCH 3MM
Price
N/A
100

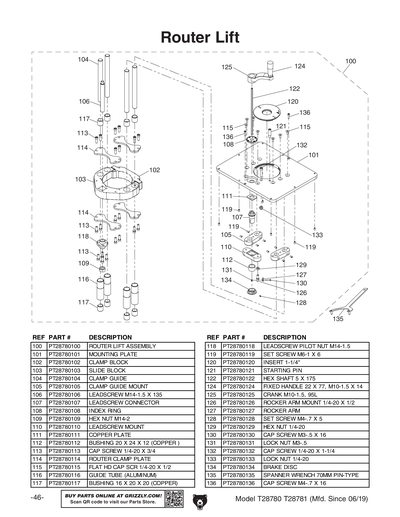

Router Lift with 11-3/4" x 9-1/4" x 3/8" Mounting Plate
Price
N/A
101

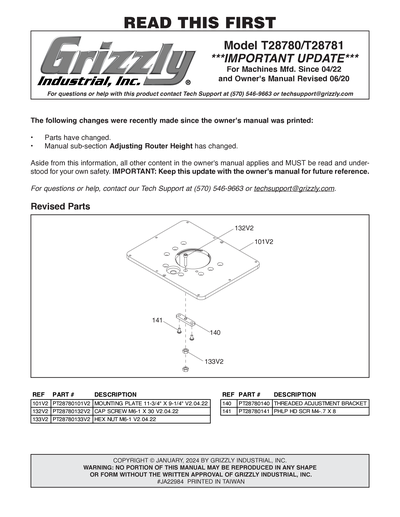

MOUNTING PLATE 11-3/4" X 9-1/4" V1
Price
N/A
102
CLAMP BLOCK
Price
N/A
103
SLIDE BLOCK
Price
N/A
104
CLAMP GUIDE
Price
N/A
105
CLAMP GUIDE MOUNT
Price
N/A
106
LEADSCREW M14-1.5 X 135
Price
N/A
107
LEADSCREW CONNECTOR
Price
N/A
108
INDEX RING
Price
N/A
109
HEX NUT M14-2
Price
N/A
110
LEADSCREW MOUNT
Price
N/A
111
COPPER PLATE
Price
N/A
112
BUSHING 20 X 24 X 12 (COPPER)
Price
N/A
113
CAP SCREW 1/4-20 X 3/4
Price
N/A
114
ROUTER CLAMP PLATE
Price
N/A
115
FLAT HD CAP SCR 1/4-20 X 1/2
Price
N/A
116
GUIDE TUBE (ALUMINUM)
Price
N/A
117
BUSHING 16 X 20 X 20 (COPPER)
Price
N/A
118
LEADSCREW PILOT NUT M14-1.5
Price
N/A
119
SET SCREW M6-1 X 6
Price
N/A
120
INSERT 1-1/4"
Price
N/A
121
STARTING PIN
Price
N/A
122
HEX SHAFT 5 X 175
Price
N/A
124
FIXED HANDLE 22 X 77, M10-1.5 X 14
Price
N/A
125
CRANK M10-1.5, 95L
Price
N/A
126
ROCKER ARM MOUNT 1/4-20 X 1/2
Price
N/A
127
ROCKER ARM
Price
N/A
128
SET SCREW M4-.7 X 5
Price
N/A
129
HEX NUT 1/4-20
Price
N/A
130
CAP SCREW M3-.5 X 16
Price
N/A
131
LOCK NUT M3-.5
Price
N/A
132
CAP SCREW 1/4-20 X 3/4
Price
N/A
133
LOCK NUT 1/4-20
Price
N/A
134
BRAKE DISC
Price
N/A
135
SPANNER WRENCH 70MM PIN-TYPE
Price
N/A
136
CAP SCREW M4-.7 X 16
Price
N/A

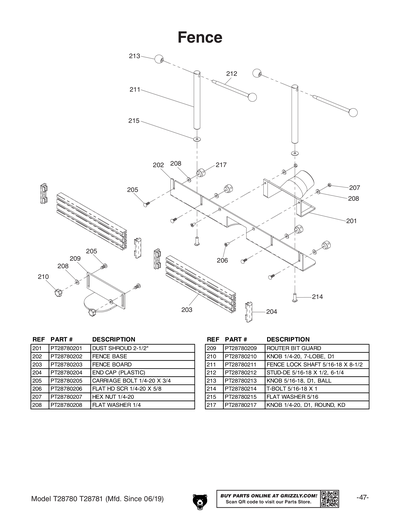

201
DUST SHROUD 2-1/2"
Price
N/A
202
FENCE BASE
Price
N/A
203
FENCE BOARD
Price
N/A
204
END CAP (PLASTIC)
Price
N/A
205
CARRIAGE BOLT 1/4-20 X 3/4
Price
N/A
206
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
207
HEX NUT 1/4-20
Price
N/A
208
FLAT WASHER 1/4
Price
N/A
209
ROUTER BIT GUARD
Price
N/A
210
KNOB 1/4-20, 7-LOBE, D1
Price
N/A
211
FENCE LOCK SHAFT 5/16-18 X 8-1/2
Price
N/A
212
STUD-DE 5/16-18 X 1/2, 6-1/4
Price
N/A
213
KNOB 5/16-18, D1, BALL
Price
N/A
214
T-BOLT 5/16-18 X 1
Price
N/A
215
FLAT WASHER 5/16
Price
N/A
216
FLAT WASHER 1/4
Price
N/A
217
KNOB 1/4-20, D1, ROUND, KD
Price
N/A

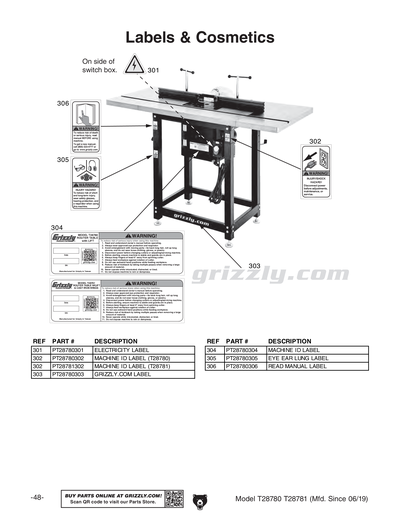

301
ELECTRICITY 0.7W X 0.6H
Price
N/A
302
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
303
***USE PGZCOM-40B***
Price
N/A
304
Price
$16.40
305
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
306
READ MANUAL 1.5W X 2.5H
Price
N/A
BOX3
COMPLETE BOX 3 OF 4 FOR T28781
Price
$509.35
BOX4
COMPLETE BOX 4 OF 4 FOR T28781
Price
$611.95
MAN
MANUAL T28780/81 MFD-6.19-3.20 V1.07.19
Price
N/A
MANV2
MANUAL T28780/81 MFD-4.20+ V2.06.20
Price
N/A
