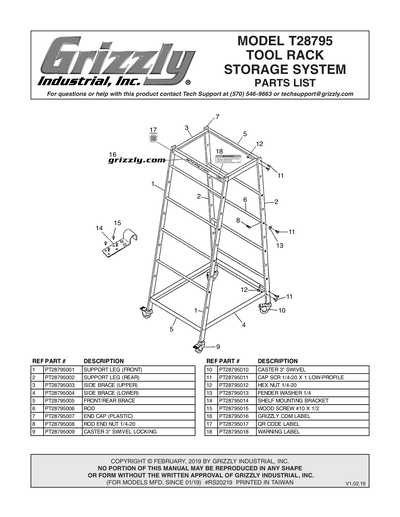

Parts for T28795 Tool Rack Storage System

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SUPPORT LEG (FRONT)
2
SUPPORT LEG (REAR)
3
SIDE BRACE (UPPER)
4
SIDE BRACE (LOWER)
5
FRONT/REAR BRACE
6
ROD
7
END CAP (PLASTIC)
8
ROD END NUT 1/4-20
9
CASTER 3" SWIVEL LOCKING
10
CASTER 3" SWIVEL
11
CAP SCR 1/4-20 X 1 LOW-PROFILE
12
Now: PN05
HEX NUT 1/4-20
Price
N/A
13
Now: PWF05
FENDER WASHER 1/4
Price
N/A
14
SHELF MOUNTING BRACKET
15
WOOD SCREW #10 X 1/2
16
GRIZZLY.COM LABEL 9.25",WHITE
Price
N/A
17
QR CODE LABEL
18
WARNING LABEL
MAN
MANUAL T28795 MFD-01.19+ V1.02.19
