Parts for T28798 - 1-1/2 HP Metal Dust Collector

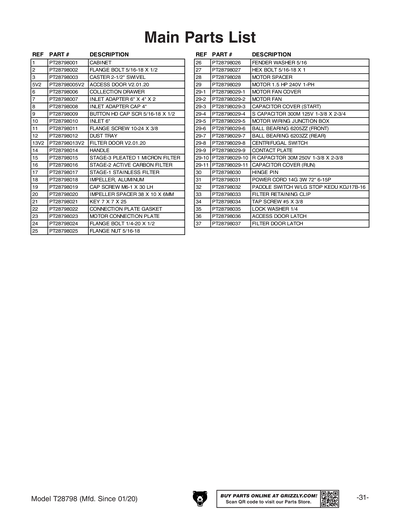

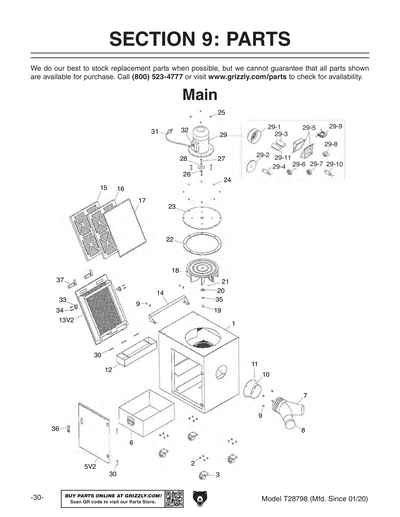

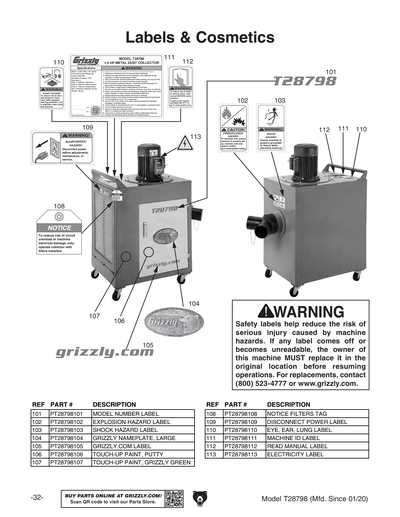

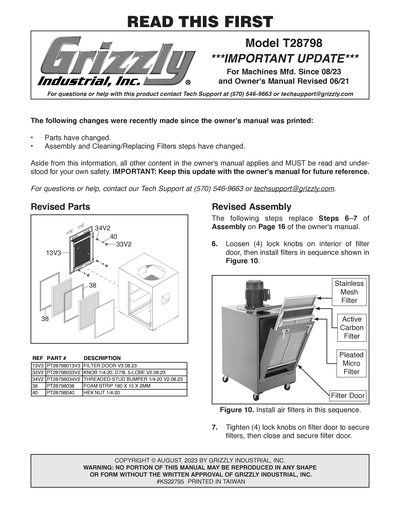

Part Diagram for T28798
Part Diagram for T28798
Part Diagram for T28798
Part Diagram for T28798
Part Diagram for T28798
Part Diagram for T28798
Part Diagram for T28798
Part Diagram for T28798

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$708.85
2
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
3
Price
$11.50
4
***SEE EXT DESCRIPTION***
Price
N/A
4V2
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
5
ACCESS DOOR V2.01.20
Price
N/A
5V2
Price
$68.25
6
Price
$99.35
7
INLET ADAPTER 6" X 4" X 2
Price
$56.10
8
Price
$2.30
9
BUTTON HD CAP SCR 5/16-18 X 1/2
Price
N/A
10
Price
$24.80
11
FLANGE SCREW 10-24 X 3/8
Price
N/A
12
Price
$57.70
13
FILTER DOOR V2.01.20
Price
N/A
13V2
Price
$100.25
13V3
Price
$100.20
14
Price
$59.80
15
Third Stage 1 Micron Filter for T28798
Price
N/A
16
Second Stage Active Carbon Filter for T28798
Price
N/A
17
First Stage Stainless Filter for T28798
Price
N/A
18
Price
$168.20
19
CAP SCREW M6-1 X 30 LH
Price
N/A
20
IMPELLER SPACER 38 X 10 X 6MM
Price
$2.45
21
KEY 7 X 7 X 25
Price
N/A
22
CONNECTION PLATE GASKET
Price
$5.15
23
Price
$91.20
24
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
25
FLANGE NUT 5/16-18
Price
N/A
26
FENDER WASHER 5/16
Price
N/A
27
HEX BOLT 5/16-18 X 1
Price
N/A
28
Price
$1.85
29
Price
$517.50
29-1
Price
$26.35
29-10
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
N/A
29-11
CAPACITOR COVER (START)
Price
N/A
29-2
MOTOR FAN
Price
N/A
29-3
CAPACITOR COVER (START)
Price
$13.85
29-4
S CAPACITOR 300M 125V 1-3/8 X 2-3/4
Price
N/A
29-5
MOTOR WIRING JUNCTION BOX
Price
$14.25
29-6
BALL BEARING 6205ZZ
Price
N/A
29-7
BALL BEARING 6203ZZ
Price
N/A
29-8
Price
$10.30
29-9
Price
$13.60
30
Price
$1.85
31
POWER CORD 14G 3W 72" 6-15P
Price
$26.90
32
220V/240V Paddle Switch
Price
N/A
33
*DISCD*FILTER RETAINING CLIP V1
Item is no longer available
Price
N/A
33V2
KNOB 1/4-20, D1-1/2, 5-LOBE V2.08.23
Price
$3.35
34
*DISCD*TAP SCREW #6 X 3/8
Price
N/A
34V2
THREADED-STUD BUMPER 1/4-20 V2.08.23
Price
$2.95
36
Price
$30.55
37
Price
$30.55
38
FOAM STRIP 180 X 15 X 2MM
Price
$7.65
40
HEX NUT 1/4-20
Price
N/A
101
Price
$3.70
102
Price
$1.60
103
Price
$1.60
104
Nameplate - Large
Price
N/A
105
GRIZZLY.COM LABEL 12.75",GREEN
Price
N/A
106
GREY PUTTY REF G0504
Price
N/A
107
N/S GRIZZLY GREEN G1023S
Price
N/A
108
DUST COLLECTORS NOTICE 2.5W X 2.5H
Price
N/A
109
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
110
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
111
Price
$16.40
112
READ MANUAL 1.5W X 2.5H
Price
N/A
113
ELECTRICITY 0.7W X 0.6H
Price
N/A
MAN
MANUAL T28798 MFD-12.18 V1.01.19
Price
$11.75
