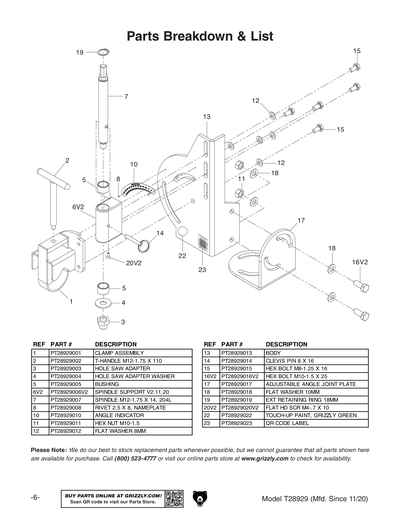

Parts for T28929 2" Pipe/Tube Notcher

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CLAMP ASSEMBLY
2
T-HANDLE M12-1.75 X 110
3
HOLE SAW ADAPTER
4
HOLE SAW ADAPTER WASHER
5
BUSHING
6
SPINDLE SUPPORT V1
6V2
SPINDLE SUPPORT V2.11.20
7
SPINDLE M12-1.75 X 14, 204L
8
RIVET 2.5 X 8, NAMEPLATE
10
ANGLE INDICATOR
11
Now: PN02M
HEX NUT M10-1.5
Price
N/A
12
Now: PW01M
FLAT WASHER 8MM
Price
N/A
13
BODY
14
CLEVIS PIN 8 X 16
15
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
16
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
16V2
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
17
ADJUSTABLE ANGLE JOINT PLATE
18
Now: PW04M
FLAT WASHER 10MM
Price
N/A
19
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
20
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
20V2
FLAT HD SCR M4-.7 X 10
Price
N/A
21
Now: PW05M
FLAT WASHER 4MM
Price
N/A
22
N/S GRIZZLY GREEN G1023S
Price
N/A
23
QR CODE LABEL
MAN
MANUAL T28929 MFD-11.18-10.20 V1.05.20
MANV2
MANUAL T28929 MFD-11.20+ V2.12.20
