Parts for T28930 - 24" Hydraulic Bending Brake

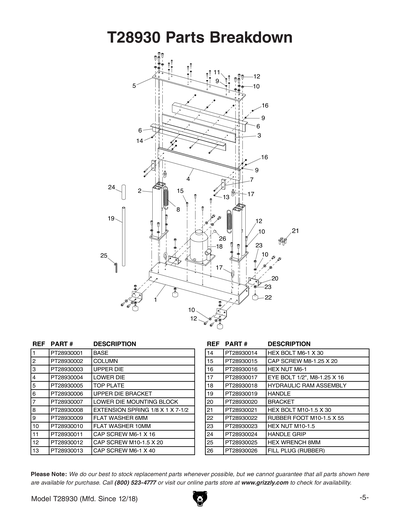

Part Diagram for T28930

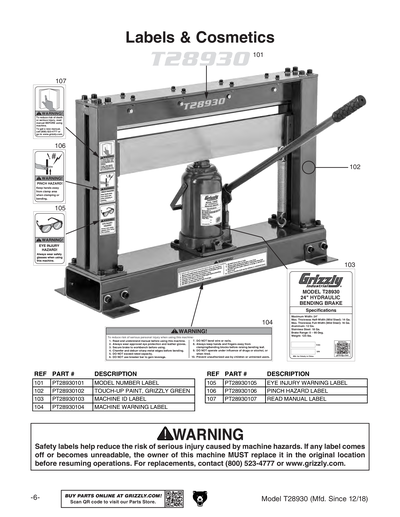

Part Diagram for T28930
Part Diagram for T28930
Part Diagram for T28930

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$215.65
1V2
Price
$178.25
2
Price
$155.25
3
Price
$99.20
3V2
Price
$82.00
4
Price
$102.50
5
Price
$78.00
6
Price
$77.65
6V2
UPPER DIE BRACKET V2.03.25
Price
$64.20
7
LOWER DIE MOUNTING BLOCK
Price
$21.60
8
EXTENSION SPRING 1/8 X 1 X 7-1/2
Price
$12.95
9
FLAT WASHER 6MM
Price
N/A
10
FLAT WASHER 10MM
Price
N/A
11
CAP SCREW M6-1 X 16
Price
N/A
12
CAP SCREW M10-1.5 X 20
Price
N/A
12V2
CAP SCREW M10-1.5 X 30
Price
N/A
13
CAP SCREW M6-1 X 40
Price
N/A
14
HEX BOLT M6-1 X 30
Price
N/A
14V2
CAP SCREW M6-1 X 30
Price
N/A
15
CAP SCREW M8-1.25 X 20
Price
N/A
16
HEX NUT M6-1
Price
N/A
17
EYE BOLT 1/2", M8-1.25 X 16
Price
$10.85
18
Price
$280.35
19
Price
$21.60
20
Price
$10.85
21
HEX BOLT M10-1.5 X 30
Price
N/A
22
RUBBER FOOT M10-1.5 X 55
Price
$6.50
23
HEX NUT M10-1.5
Price
N/A
24
Price
$6.50
25
HEX WRENCH 8MM
Price
N/A
26
Price
$10.85
27
SHOULDER SCREW M16-2 X 22, 20 X 100
Price
$17.85
28
FLAT WASHER 20MM
Price
N/A
29
HEX NUT M16-2
Price
N/A
101
Price
$1.25
102
N/S GRIZZLY GREEN G1023S
Price
N/A
103
Price
$16.40
103V2
MACHINE ID LABEL V2.03.25
Price
$16.95
104
Price
$4.25
105
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
106
Price
$4.25
107
READ MANUAL 1.5W X 2.5H
Price
N/A
MAN
MANUAL T28930 MFD-12.18-02.25 V1.05.20
Price
$15.25
MANV2
MANUAL T28930 MFD-03.25+ V2.03.25
Price
$22.65
