Parts for T28941 - Work Stop Measuring System - Metric

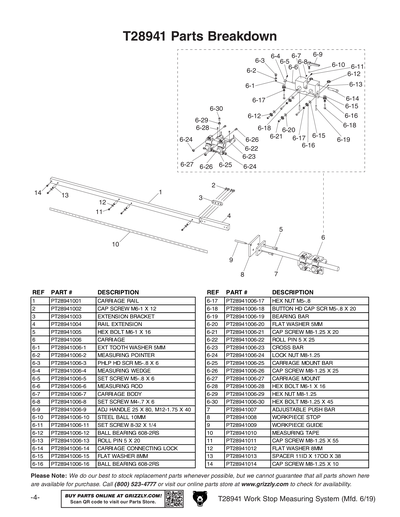

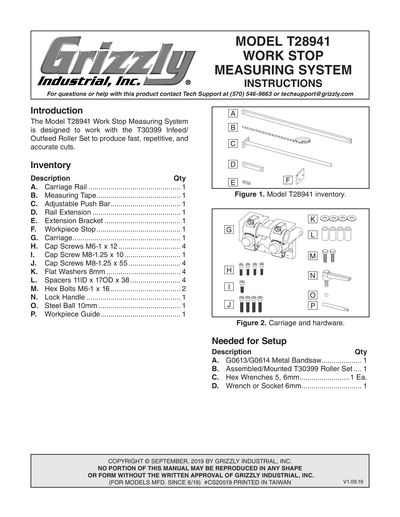

Part Diagram for T28941

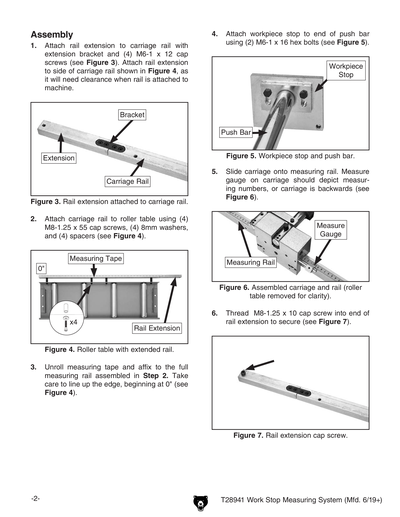

Part Diagram for T28941

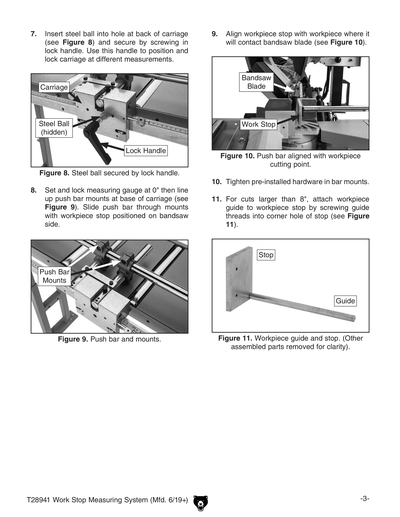

Part Diagram for T28941
Part Diagram for T28941
Part Diagram for T28941
Part Diagram for T28941
Part Diagram for T28941
Part Diagram for T28941

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CARRIAGE RAIL
Price
$159.40
2
CAP SCREW M6-1 X 12
Price
N/A
3
EXTENSION BRACKET
Price
$23.30
4
RAIL EXTENSION
Price
$50.40
5
HEX BOLT M6-1 X 16
Price
N/A
6
CARRIAGE
Price
$188.70
6-1
EXT TOOTH WASHER 5MM
Price
N/A
6-10
STEEL BALL 10MM
Price
N/A
6-11
SET SCREW 8-32 X 1/4
Price
N/A
6-12
BALL BEARING 608-2RS
Price
N/A
6-13
ROLL PIN 5 X 20
Price
N/A
6-14
CARRIAGE MOUNTING BAR/CONNECTING LOCK
Price
$78.25
6-15
FLAT WASHER 8MM
Price
N/A
6-16
BALL BEARING 608-2RS
Price
N/A
6-17
HEX NUT M5-.8
Price
N/A
6-18
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
6-19
BEARING BAR
Price
$2.75
6-2
MEASURING POINTER
Price
$1.60
6-20
FLAT WASHER 5MM
Price
N/A
6-21
CAP SCREW M8-1.25 X 20
Price
N/A
6-22
ROLL PIN 5 X 25
Price
N/A
6-23
CROSS BAR
Price
$7.00
6-24
LOCK NUT M8-1.25
Price
N/A
6-25
CARRIAGE MOUNTING BAR/CONNECTING LOCK
Price
N/A
6-26
CAP SCREW M8-1.25 X 25
Price
N/A
6-27
CARRIAGE MOUNT
Price
$5.15
6-28
HEX BOLT M6-1 X 16
Price
N/A
6-29
HEX NUT M8-1.25
Price
N/A
6-3
PHLP HD SCR M5-.8 X 6
Price
N/A
6-30
HEX BOLT M8-1.25 X 45
Price
N/A
6-4
MEASURING WEDGE
Price
$3.65
6-5
SET SCREW M5-.8 X 6
Price
N/A
6-6
MEASURING ROD
Price
$3.65
6-7
CARRIAGE BODY
Price
$82.15
6-8
SET SCREW M4-.7 X 6
Price
N/A
6-9
ADJ HANDLE 25 X 80, M12-1.75 X 40
Price
$11.50
7
ADJUSTABLE PUSH BAR
Price
$22.95
8
WORKPIECE STOP
Price
$14.50
9
WORKPIECE GUIDE
Price
$5.80
10
MEASURING TAPE
Price
$17.55
11
CAP SCREW M8-1.25 X 55
Price
N/A
12
FLAT WASHER 8MM
Price
N/A
13
SPACER 11ID X 17OD X 38
Price
$3.05
14
CAP SCREW M8-1.25 X 10
Price
N/A
