Parts for T28959 - Electric Chainsaw Sharpener

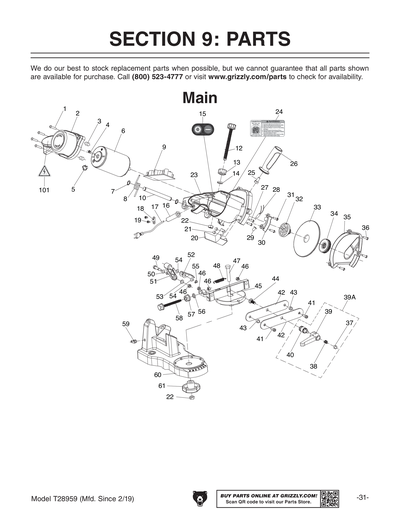

Part Diagram for T28959
Part Diagram for T28959
Part Diagram for T28959
Part Diagram for T28959

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

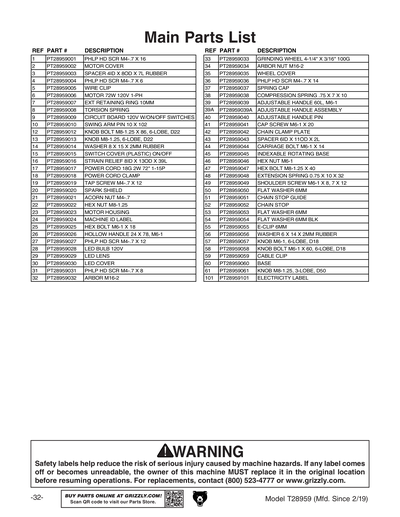

Ref #
Part #
Description
1
PHLP HD SCR M4-.7 X 16
Price
N/A
2
MOTOR COVER
Price
$2.90
3
SPACER 4ID X 8OD X 7L RUBBER
Price
$1.90
4
PHLP HD SCR M4-.7 X 6
Price
N/A
5
WIRE CLIP
Price
$1.90
6
MOTOR 72W 120V 1-PH
Price
$16.60
7
EXT RETAINING RING 10MM
Price
N/A
8
TORSION SPRING
Price
$1.90
9
CIRCUIT BOARD 120V W/ON/OFF SWITCHES
Price
$8.35
10
SWING ARM PIN 10 X 102
Price
$1.90
12
KNOB BOLT M8-1.25 X 86, 6-LOBE, D22
Price
$1.90
13
KNOB M8-1.25, 6-LOBE, D22
Price
$1.90
14
WASHER 8 X 15 X 2MM RUBBER
Price
$1.90
15
SWITCH COVER (PLASTIC) ON/OFF
Price
$1.90
16
STRAIN RELIEF 8ID X 13OD X 39L
Price
$1.90
17
POWER CORD 18G 2W 72" 1-15P
Price
$3.65
18
POWER CORD CLAMP
Price
$1.90
19
TAP SCREW M4 X 12
Price
N/A
20
SPARK SHIELD
Price
$1.90
21
ACORN NUT M4-.7
Price
N/A
22
HEX NUT M8-1.25
Price
N/A
23
MOTOR HOUSING
Price
$2.90
24
MACHINE ID LABEL
Price
$16.40
25
HEX BOLT M6-1 X 18
Price
N/A
26
HOLLOW HANDLE 24 X 78, M6-1
Price
$1.90
27
PHLP HD SCR M4-.7 X 12
Price
N/A
28
LED BULB 120V
Price
$1.90
29
LED LENS
Price
$1.90
30
LED COVER
Price
$1.90
31
PHLP HD SCR M4-.7 X 8
Price
N/A
32
ARBOR M16-2
Price
$1.90
33
A/O 4-1/4" x 3/16" Grinding Wheel, 100 Grit
Price
N/A
34
ARBOR NUT M16-2
Price
$1.90
35
WHEEL COVER
Price
$1.90
36
PHLP HD SCR M4-.7 X 14
Price
N/A
37
SPRING CAP
Price
$1.90
38
COMPRESSION SPRING .75 X 7 X 10
Price
$1.90
39
ADJUSTABLE HANDLE 60L, M6-1
Price
$1.90
39A
ADJUSTABLE HANDLE ASSEMBLY
Price
$1.90
40
ADJUSTABLE HANDLE PIN
Price
$1.90
41
CAP SCREW M6-1 X 20
Price
N/A
42
CHAIN CLAMP PLATE
Price
$1.90
43
SPACER 6ID X 11OD X 2L
Price
$1.90
44
CARRIAGE BOLT M6-1 X 14
Price
$1.90
45
INDEXABLE ROTATING BASE
Price
$1.90
46
HEX NUT M6-1
Price
N/A
47
HEX BOLT M8-1.25 X 40
Price
N/A
48
EXTENSION SPRING 0.75 X 10 X 32
Price
$1.90
49
SHOULDER SCREW M6-1 X 8, 7 X 12
Price
$1.90
50
FLAT WASHER 6MM
Price
N/A
51
CHAIN STOP GUIDE
Price
$1.90
52
CHAIN STOP
Price
$1.90
53
FLAT WASHER 6MM
Price
N/A
54
FLAT WASHER 6MM
Price
N/A
55
E-CLIP 6MM
Price
N/A
56
WASHER 6 X 14 X 2MM RUBBER
Price
$1.90
57
KNOB M6-1, 6-LOBE, D18
Price
$1.90
58
KNOB BOLT M6-1 X 60, 6-LOBE, D18
Price
$1.90
59
CABLE CLIP
Price
$1.90
60
BASE
Price
$4.70
61
KNOB M8-1.25, 3-LOBE, D50
Price
$1.90
101
ELECTRICITY 0.5W X 0.4H
Price
N/A
MAN
MANUAL T28959 MFD-02.19 V1.02.19
Price
$17.50
