Parts for T30297 48" Magnetic Pan and Box Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

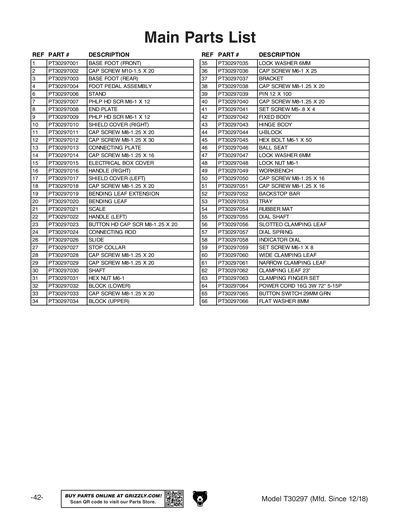

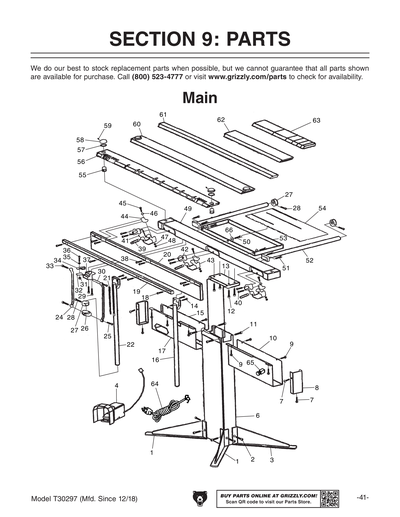

1
BASE FOOT (FRONT)
Item is no longer available
Price
N/A
2
CAP SCREW M10-1.5 X 20
Price
N/A
3
BASE FOOT (REAR)
Item is no longer available
Price
N/A
4
FOOT PEDAL ASSEMBLY
Item is no longer available
Price
N/A
6
STAND
Item is no longer available
Price
N/A
7
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
8
END PLATE
Item is no longer available
Price
N/A
9
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
10
SHIELD COVER (RIGHT)
Item is no longer available
Price
N/A
11
CAP SCREW M8-1.25 X 20
Price
N/A
12
CAP SCREW M8-1.25 X 30
Price
N/A
13
CONNECTING PLATE
Item is no longer available
Price
N/A
14
CAP SCREW M8-1.25 X 16
Price
N/A
15
ELECTRICAL BOX COVER
Item is no longer available
Price
N/A
16
HANDLE (RIGHT)
Item is no longer available
Price
N/A
17
SHIELD COVER (LEFT)
Item is no longer available
Price
N/A
18
CAP SCREW M8-1.25 X 20
Price
N/A
19
BENDING LEAF EXTENSION
Item is no longer available
Price
N/A
20
BENDING LEAF
Item is no longer available
Price
N/A
21
SCALE
Item is no longer available
Price
N/A
22
HANDLE (LEFT)
Item is no longer available
Price
N/A
23
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
24
CONNECTING ROD
Item is no longer available
Price
N/A
26
SLIDE
Item is no longer available
Price
N/A
27
STOP COLLAR
Item is no longer available
Price
N/A
28
CAP SCREW M8-1.25 X 20
Price
N/A
29
CAP SCREW M8-1.25 X 20
Price
N/A
30
SHAFT
Item is no longer available
Price
N/A
31
Now: PN01M
HEX NUT M6-1
Price
N/A
32
BLOCK (LOWER)
Item is no longer available
Price
N/A
33
CAP SCREW M8-1.25 X 20
Price
N/A
34
BLOCK (UPPER)
Item is no longer available
Price
N/A
35
LOCK WASHER 6MM
Price
N/A
36
CAP SCREW M6-1 X 25
Price
N/A
37
BRACKET
Item is no longer available
Price
N/A
38
CAP SCREW M8-1.25 X 20
Price
N/A
39
PIN 12 X 100
Item is no longer available
Price
N/A
40
CAP SCREW M8-1.25 X 20
Price
N/A
41
SET SCREW M5-.8 X 4
Price
N/A
42
FIXED BODY
Item is no longer available
Price
N/A
43
HINGE BODY
44
U-BLOCK
Item is no longer available
Price
N/A
45
Now: PB39M
HEX BOLT M6-1 X 50
Price
N/A
46
BALL SEAT
Item is no longer available
Price
N/A
47
LOCK WASHER 6MM
Price
N/A
48
LOCK NUT M6-1
Price
N/A
49
WORKBENCH
Item is no longer available
Price
N/A
50
CAP SCREW M8-1.25 X 16
Price
N/A
51
CAP SCREW M8-1.25 X 16
Price
N/A
52
BACKSTOP BAR
Item is no longer available
Price
N/A
53
TRAY
Item is no longer available
Price
N/A
54
RUBBER MAT
Item is no longer available
Price
N/A
55
DIAL SHAFT
Item is no longer available
Price
N/A
56
SLOTTED CLAMPING LEAF
Item is no longer available
Price
N/A
57
DIAL SPRING
Item is no longer available
Price
N/A
58
INDICATOR DIAL
Item is no longer available
Price
N/A
59
SET SCREW M6-1 X 8
Price
N/A
60
WIDE CLAMPING LEAF
Item is no longer available
Price
N/A
61
NARROW CLAMPING LEAF
Item is no longer available
Price
N/A
62
CLAMPING LEAF 23"
Item is no longer available
Price
N/A
63
CLAMPING FINGER SET
Item is no longer available
Price
N/A
64
POWER CORD 16G 3W 72" 5-15P
Item is no longer available
Price
N/A
65
BUTTON SWITCH 29MM GRN
Price
N/A
66
Now: PW01M
FLAT WASHER 8MM
Price
N/A

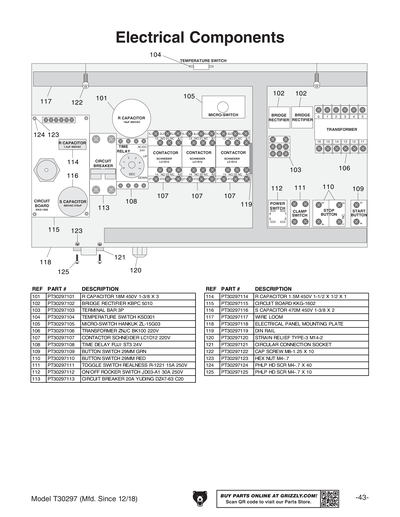

101
Now: PC20D
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
102
BRIDGE RECTIFIER KBPC 5010
Item is no longer available
Price
N/A
103
TERMINAL BAR 3P
Item is no longer available
Price
N/A
104
TEMPERATURE SWITCH KSD301
Item is no longer available
Price
N/A
105
MICRO SWITCH HANKUK ZL-15G03
Item is no longer available
Price
N/A
106
TRANSFORMER ZNJC BK100 220V
Item is no longer available
Price
N/A
107
CONTACTOR SCHNEIDER LC1D12 220V
108
TIME RELAY FUJI ST3 24V
Item is no longer available
Price
N/A
109
BUTTON SWITCH 29MM GRN
Item is no longer available
Price
N/A
110
BUTTON SWITCH 29MM RED
Item is no longer available
Price
N/A
111
TOGGLE SWITCH REALNESS R-1221 15A 250V
Item is no longer available
Price
N/A
112
ON/OFF ROCKER SWITCH JD03-A1 30A 250V
Item is no longer available
Price
N/A
113
CIRCUIT BREAKER 20A YUDING DZ47-63 C20
Item is no longer available
Price
N/A
114
CIRCUIT BOARD KKG-1602
Price
N/A
115
CIRCUIT BOARD KKG-1602
116
CIRCUIT BOARD KKG-1602
Price
N/A
117
WIRE LOOM
Item is no longer available
Price
N/A
118
ELECTRICAL PANEL MOUNTING PLATE
Item is no longer available
Price
N/A
119
DIN RAIL
Item is no longer available
Price
N/A
120
STRAIN RELIEF TYPE-3 M14-2
Item is no longer available
Price
N/A
121
CIRCULAR CONNECTION SOCKET
Item is no longer available
Price
N/A
122
CAP SCREW M8-1.25 X 10
Price
N/A
123
Now: PN04M
HEX NUT M4-.7
Price
N/A
124
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
125
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A

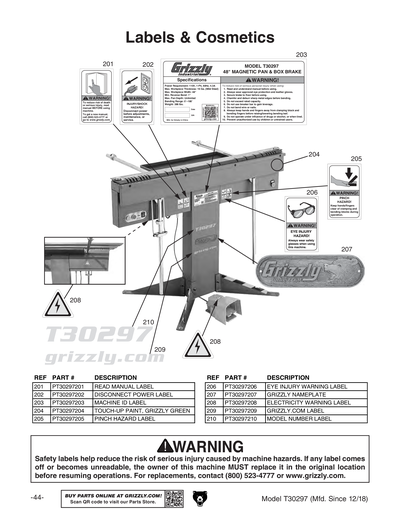

201
READ MANUAL 1.5W X 2.5H
Price
N/A
202
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
203
MACHINE ID LABEL
Item is no longer available
Price
N/A
204
N/S GRIZZLY GREEN G1023S
Price
N/A
205
PINCH HAZARD LABEL
Item is no longer available
Price
N/A
206
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
207
Now: H4609
Oblong Nameplate-Small
Price
N/A
208
ELECTRICITY 1.4W X 1.2H
Price
N/A
209
GRIZZLY.COM LABEL 7.375",BEIGE
Price
N/A
210
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T30297 MFD-12.18+ V1.07.20
Item is no longer available
Price
N/A
