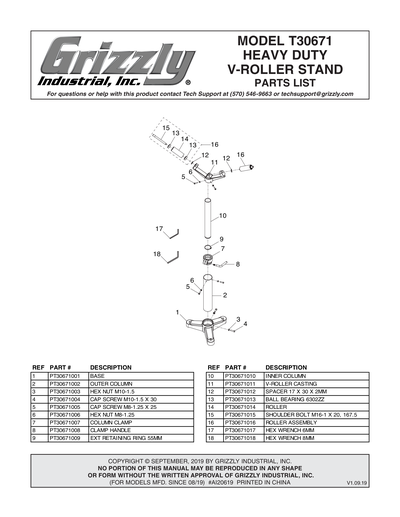

Parts for T30671 Heavy-Duty V-Roller Stand

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
Price
N/A
2
OUTER COLUMN
3
Now: PN02M
HEX NUT M10-1.5
Price
N/A
4
CAP SCREW M10-1.5 X 30
Price
N/A
5
CAP SCREW M8-1.25 X 25
Price
N/A
6
Now: PN03M
HEX NUT M8-1.25
Price
N/A
7
COLUMN CLAMP
8
CLAMP HANDLE
9
Now: PR78M
EXT RETAINING RING 55MM
Price
N/A
10
INNER COLUMN
11
V-ROLLER CASTING
12
SPACER 17 X 30 X 2MM
Price
N/A
13
BALL BEARING 6302ZZ
Price
N/A
14
ROLLER
15
SHOULDER BOLT M16-1 X 20, 167.5
16
ROLLER ASSEMBLY
17
HEX WRENCH 6MM
Price
N/A
18
HEX WRENCH 8MM
Price
N/A
20
ADJUSTABLE FOOT M20-2.5 X 80
MAN
MANUAL T30671 MFD-08.19-03.25 V1.09.19
MANV2
MANUAL T30671 MFD-04.25+ V2.05.25
