Parts for T30943 1-3/8" Magnetic Drill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

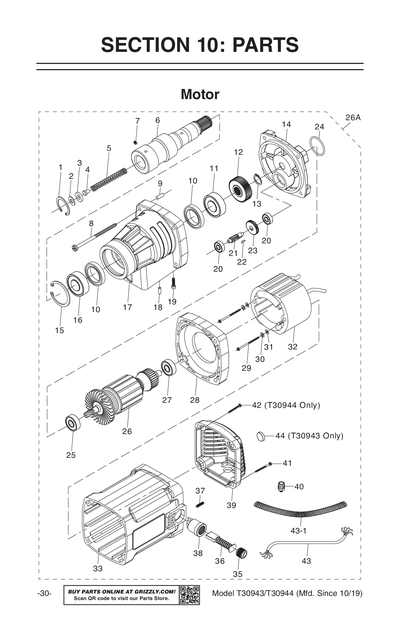

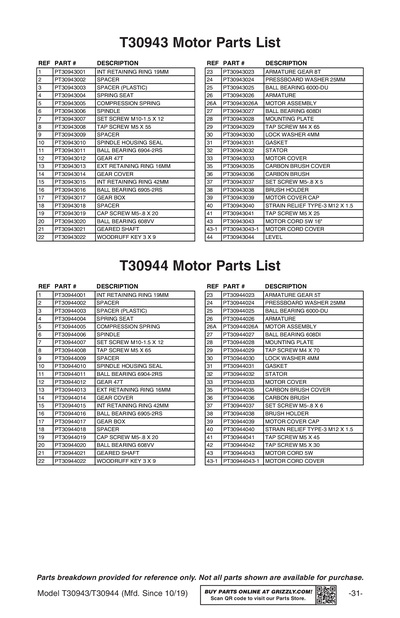

1
Now: PR79M
INT RETAINING RING 19MM
Price
N/A
2
SPACER
3
SPACER (PLASTIC)
4
SPRING SEAT
5
COMPRESSION SPRING
6
SPINDLE
7
SET SCREW M10-1.5 X 12
Price
N/A
8
TAP SCREW M5 X 55
9
SPACER
10
SPINDLE HOUSING SEAL
11
BALL BEARING 6904-2RS
Price
N/A
12
GEAR 47T
13
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
14
GEAR COVER
15
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
16
BALL BEARING 6905-2RS
Price
N/A
17
GEAR BOX
18
SPACER
19
CAP SCREW M5-.8 X 20
Price
N/A
20
BALL BEARING 608VV
21
GEARED SHAFT
22
WOODRUFF KEY 3 X 9
23
ARMATURE GEAR 8T
24
PRESSBOARD WASHER 25MM
25
BALL BEARING 6000-DU
26
ARMATURE
26A
MOTOR ASSEMBLY
27
BALL BEARING 608VV
Price
N/A
28
MOUNTING PLATE
29
TAP SCREW M4 X 65
Price
N/A
30
LOCK WASHER 4MM
Price
N/A
31
GASKET
32
STATOR
33
MOTOR COVER
33-1
WIRING PLUG/MOUNT
35
CARBON BRUSH COVER
36
CARBON BRUSH
37
SET SCREW M5-.8 X 5
Price
N/A
38
BRUSH HOLDER
39
MOTOR COVER CAP
40
STRAIN RELIEF TYPE-3 M12 X 1.5
41
TAP SCREW M5 X 25
Price
N/A
43
MOTOR CORD 5W 16"
43-1
MOTOR CORD COVER
44
LEVEL

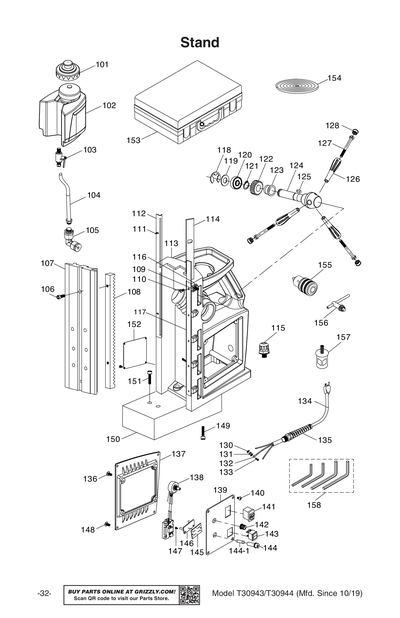

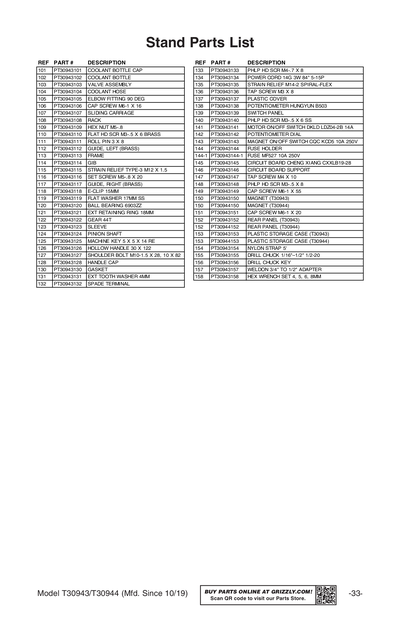

101
COOLANT BOTTLE CAP
102
COOLANT BOTTLE
103
VALVE ASSEMBLY
104
COOLANT HOSE
105
ELBOW FITTING 90 DEG
106
CAP SCREW M6-1 X 16
Price
N/A
107
SLIDING CARRIAGE
108
RACK
109
Now: PN06M
HEX NUT M5-.8
Price
N/A
110
FLAT HD SCR M3-.5 X 6 BRASS
111
ROLL PIN 3 X 8
Price
N/A
112
GUIDE, LEFT (BRASS)
113
FRAME
114
GIB
115
STRAIN RELIEF TYPE-3 M12 X 1.5
Price
N/A
116
SET SCREW M5-.8 X 20
Price
N/A
117
GUIDE, RIGHT (BRASS)
118
E-CLIP 15MM
Price
N/A
119
FLAT WASHER 17MM SS
120
BALL BEARING 6903ZZ
Price
N/A
121
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
122
GEAR 44T
123
SLEEVE
124
PINION SHAFT
125
MACHINE KEY 5 X 5 X 14 RE
126
HOLLOW HANDLE 30 X 122
127
SHOULDER BOLT M10-1.5 X 28, 10 X 82
128
HANDLE CAP
130
GASKET
131
EXT TOOTH WASHER 4MM
Price
N/A
132
SPADE TERMINAL
133
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
134
POWER CORD 14G 3W 84" 5-15P
135
STRAIN RELIEF M14-2 SPIRAL-FLEX
136
TAP SCREW M3 X 8
Price
N/A
137
PLASTIC COVER
138
POTENTIOMETER HUNGYUN B503
139
SWITCH PANEL
140
PHLP HD SCR M3-.5 X 6 SS
141
MOTOR ON/OFF SWITCH DKLD LDZ04-2B 14A
142
POTENTIOMETER DIAL
143
MAGNET ON/OFF SWITCH CQC KCD5 10A 250V
144
FUSE HOLDER
144-1
FUSE MF527 10A 250V
145
CIRCUIT BOARD CHENG XIANG CXXLB19-28
146
CIRCUIT BOARD SUPPORT
147
TAP SCREW M4 X 10
Price
N/A
148
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
149
CAP SCREW M6-1 X 55
Price
N/A
150
MAGNET
151
CAP SCREW M6-1 X 20
Price
N/A
152
REAR PANEL
153
PLASTIC STORAGE CASE
154
NYLON STRAP 5'
155
DRILL CHUCK 1/16"-1/2" 1/2-20
156
DRILL CHUCK KEY
157
WELDON 3/4" TO 1/2" ADAPTER
158
HEX WRENCH SET 4, 5, 6, 8MM

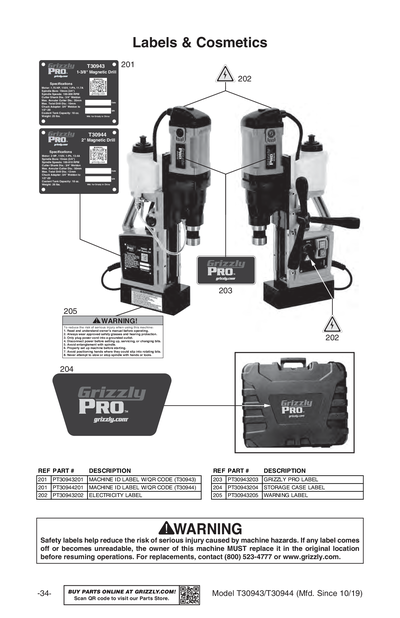

201
MACHINE ID LABEL W/QR CODE
202
ELECTRICITY 0.5W X 0.4H
Price
N/A
203
GRIZZLY PRO LABEL
204
STORAGE CASE LABEL
205
WARNING LABEL
MAN
T30943-944 MANUAL MFD-10.19+ V1.12.19
