Parts for T31563 - Bear Crawl Build-Your-Own Mobile Base Kit

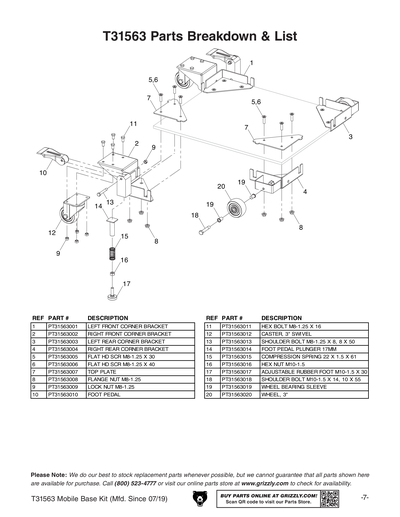

Part Diagram for T31563
Part Diagram for T31563

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
LEFT FRONT CORNER BRACKET
Price
$26.75
2
RIGHT FRONT CORNER BRACKET
Price
$26.75
3
LEFT REAR CORNER BRACKET
Price
$11.50
4
RIGHT REAR CORNER BRACKET
Price
$17.90
5
FLAT HD SCR M8-1.25 X 30
Price
N/A
6
FLAT HD SCR M8-1.25 X 40
Price
N/A
7
Price
$5.75
8
FLANGE NUT M8-1.25
Price
N/A
9
LOCK NUT M8-1.25
Price
N/A
10
FOOT PEDAL
Price
N/A
11
HEX BOLT M8-1.25 X 16
Price
N/A
12
CASTER, 3" SWIVEL
Price
N/A
13
SHOULDER BOLT M8-1.25 X 8, 8 X 50
Price
N/A
14
FOOT PEDAL PLUNGER 17MM V2.07.17
Price
N/A
15
COMPRESSION SPRING 22 X 1.5 X 61
Price
N/A
16
HEX NUT M10-1.5
Price
N/A
17
ADJUSTABLE FOOT M10-1.5 X 30
Price
N/A
18
SHOULDER BOLT M10-1.5 X 14, 10 X 55
Price
N/A
19
WHEEL BEARING SLEEVE
Price
N/A
20
CASTER, 3" FIXED
Price
N/A
MAN
MANUAL T31563 MFD-07.19+ V1.07.19
Price
$2.00
