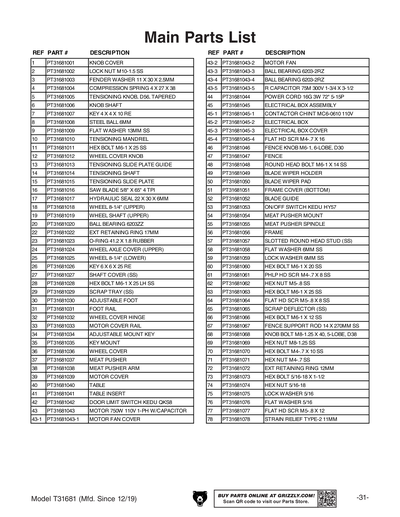

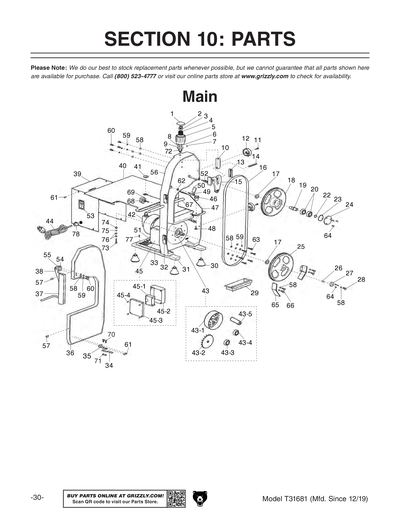

Parts for T31681 1 HP Commercial Grade Bone Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
KNOB ASSEMBLY
Price
N/A
2
KNOB ASSEMBLY
Price
N/A
3
KNOB ASSEMBLY
Price
N/A
4
KNOB ASSEMBLY
Price
N/A
5
KNOB ASSEMBLY
Price
N/A
5A
KNOB ASSEMBLY
Item is no longer available
Price
N/A
6
KNOB ASSEMBLY
Price
N/A
7
KNOB ASSEMBLY
Price
N/A
8
STEEL BALL 6MM
Price
N/A
9
KNOB ASSEMBLY
Price
N/A
10
TENSIONING MANDREL
Item is no longer available
Price
N/A
11
HEX BOLT M6-1 X 25 SS
Item is no longer available
Price
N/A
12
WHEEL COVER KNOB
Item is no longer available
Price
N/A
13
TENSIONING SLIDE PLATE GUIDE
Item is no longer available
Price
N/A
14
TENSIONING SHAFT
Item is no longer available
Price
N/A
15
TENSIONING SLIDE PLATE
Item is no longer available
Price
N/A
16
65" x 5/8" x .025" x 4 Hook Meat Blade
Price
N/A
17
HYDRAULIC SEAL 22 X 30 X 6MM
Item is no longer available
Price
N/A
18
WHEEL 8-1/4" (UPPER)
Item is no longer available
Price
N/A
19
WHEEL SHAFT (UPPER)
Item is no longer available
Price
N/A
20
BALL BEARING 6203ZZ
Price
N/A
22
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
23
O-RING 41.2 X 1.8 RUBBER
Item is no longer available
Price
N/A
24
WHEEL AXLE COVER (UPPER)
Item is no longer available
Price
N/A
25
WHEEL 8-1/4" (LOWER)
Item is no longer available
Price
N/A
26
KEY 6 X 6 X 25 RE
Item is no longer available
Price
N/A
27
SHAFT COVER (SS)
Item is no longer available
Price
N/A
28
HEX BOLT M6-1 X 25 LH SS
Item is no longer available
Price
N/A
29
SCRAP TRAY (SS)
Item is no longer available
Price
N/A
30
ADJUSTABLE FOOT
Item is no longer available
Price
N/A
31
FOOT RAIL
Item is no longer available
Price
N/A
32
WHEEL COVER HINGE
Item is no longer available
Price
N/A
33
MOTOR COVER RAIL
Item is no longer available
Price
N/A
34
ADJUSTABLE MOUNT KEY
Item is no longer available
Price
N/A
35
KEY MOUNT
Item is no longer available
Price
N/A
36
WHEEL COVER
Item is no longer available
Price
N/A
37
MEAT PUSHER
Item is no longer available
Price
N/A
38
MEAT PUSHER ARM
Item is no longer available
Price
N/A
39
MOTOR COVER
Item is no longer available
Price
N/A
40
TABLE
Item is no longer available
Price
N/A
41
TABLE INSERT
Item is no longer available
Price
N/A
42
DOOR LIMIT SWITCH KEDU QKS8
Item is no longer available
Price
N/A
43
MOTOR 750W 110V 1-PH W/CAPACITOR
Item is no longer available
Price
N/A
43-1
MOTOR 750W 110V 1-PH W/CAPACITOR
Price
N/A
43-2
MOTOR 750W 110V 1-PH W/CAPACITOR
Price
N/A
43-3
BALL BEARING 6203-2RS
Price
N/A
43-4
BALL BEARING 6203-2RS
Price
N/A
43-5
MOTOR 750W 110V 1-PH W/CAPACITOR
Price
N/A
44
POWER CORD 16G 3W 72" 5-15P
Item is no longer available
Price
N/A
45
ELECTRICAL BOX ASSEMBLY
Item is no longer available
Price
N/A
45-1
ELECTRICAL BOX ASSEMBLY
Price
N/A
45-2
ELECTRICAL BOX ASSEMBLY
Price
N/A
45-3
ELECTRICAL BOX ASSEMBLY
Price
N/A
45-4
FLAT HD SCR M4-.7 X 16
Price
N/A
46
FENCE KNOB M6-1, 6-LOBE, D30
Item is no longer available
Price
N/A
47
FENCE
Item is no longer available
Price
N/A
48
ROUND HEAD BOLT M6-1 X 14 SS
Item is no longer available
Price
N/A
49
BLADE WIPER HOLDER
Item is no longer available
Price
N/A
50
BLADE WIPER PAD
Item is no longer available
Price
N/A
51
FRAME COVER (BOTTOM)
Item is no longer available
Price
N/A
52
BLADE GUIDE
Item is no longer available
Price
N/A
53
ON/OFF SWITCH KEDU HY57
Item is no longer available
Price
N/A
54
MEAT PUSHER MOUNT
Item is no longer available
Price
N/A
55
MEAT PUSHER SPINDLE
Item is no longer available
Price
N/A
56
FRAME
Item is no longer available
Price
N/A
57
SLOTTED ROUND HEAD STUD (SS)
Item is no longer available
Price
N/A
58
FLAT WASHER 6MM SS
Item is no longer available
Price
N/A
59
LOCK WASHER 6MM SS
Item is no longer available
Price
N/A
60
HEX BOLT M6-1 X 20 SS
Item is no longer available
Price
N/A
61
PHLP HD SCR M4-.7 X 8 SS
Item is no longer available
Price
N/A
62
HEX NUT M5-.8 SS
Item is no longer available
Price
N/A
63
HEX BOLT M6-1 X 25 SS
Item is no longer available
Price
N/A
64
FLAT HD SCR M5-.8 X 8 SS
Item is no longer available
Price
N/A
65
SCRAP DEFLECTOR (SS)
Item is no longer available
Price
N/A
66
HEX BOLT M6-1 X 12 SS
Item is no longer available
Price
N/A
67
FENCE SUPPORT ROD 14 X 270MM SS
Item is no longer available
Price
N/A
68
KNOB BOLT M8-1.25 X 40, 5-LOBE, D38
Item is no longer available
Price
N/A
69
HEX NUT M8-1.25 SS
Item is no longer available
Price
N/A
70
HEX BOLT M4-.7 X 10 SS
Item is no longer available
Price
N/A
71
HEX NUT M4-.7 SS
Item is no longer available
Price
N/A
72
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
73
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
74
Now: PN02
HEX NUT 5/16-18
Price
N/A
75
Now: PLW01
LOCK WASHER 5/16
Price
N/A
76
Now: PW07
FLAT WASHER 5/16
Price
N/A
77
FLAT HD SCR M5-.8 X 12
Price
N/A
78
STRAIN RELIEF TYPE-2 11MM
Item is no longer available
Price
N/A

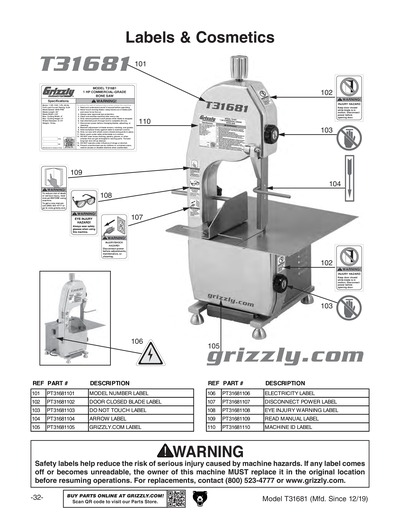

101
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
102
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
103
DO NOT TOUCH LABEL
Item is no longer available
Price
N/A
104
ARROW LABEL
Item is no longer available
Price
N/A
105
GRIZZLY.COM LABEL 6.625",GREEN
Price
N/A
106
ELECTRICITY 1.4W X 1.2H
Price
N/A
107
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
108
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
109
READ MANUAL 1.5W X 2.5H
Price
N/A
110
MACHINE ID LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T31681 MFD-12.19+ V1.12.19
Item is no longer available
Price
N/A
