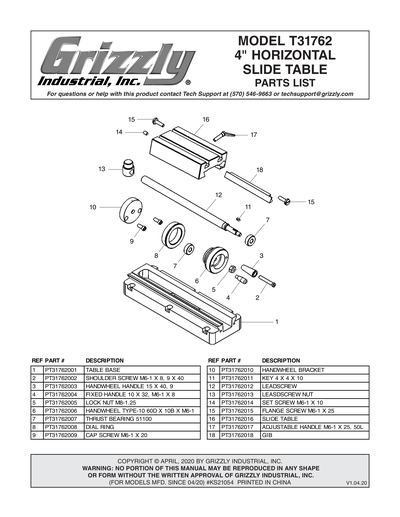

Parts for T31762 4" Horizontal Slide Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
TABLE BASE
Item is no longer available
Price
N/A
2
SHOULDER SCREW M6-1 X 8, 9 X 40
Item is no longer available
Price
N/A
3
HANDWHEEL HANDLE 15 X 40, 9
Item is no longer available
Price
N/A
4
FIXED HANDLE 10 X 32, M6-1 X 8
Item is no longer available
Price
N/A
5
LOCK NUT M8-1.25
Price
N/A
6
HANDWHEEL TYPE-10 60D X 10B X M6-1
Item is no longer available
Price
N/A
7
THRUST BEARING 51100
Price
N/A
8
DIAL RING
Item is no longer available
Price
N/A
9
CAP SCREW M6-1 X 20
Price
N/A
10
HANDWHEEL BRACKET
Item is no longer available
Price
N/A
11
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
12
LEADSCREW
Item is no longer available
Price
N/A
13
LEADSCREW NUT
Item is no longer available
Price
N/A
14
SET SCREW M6-1 X 10
Price
N/A
15
FLANGE SCREW M6-1 X 25
Item is no longer available
Price
N/A
16
SLIDE TABLE
Item is no longer available
Price
N/A
17
ADJUSTABLE HANDLE M6-1 X 25, 50L
Item is no longer available
Price
N/A
18
GIB
Item is no longer available
Price
N/A
