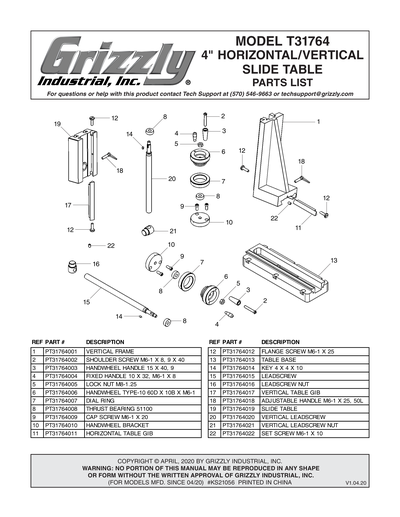

Parts for T31764 4" Horizontal/Vertical Slide Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
VERTICAL FRAME
Item is no longer available
Price
N/A
2
SHOULDER SCREW M6-1 X 8, 9 X 40
Price
N/A
3
HANDWHEEL HANDLE 15 X 40, 9
Price
N/A
4
FIXED HANDLE 10 X 32, M6-1 X 8
Price
N/A
5
LOCK NUT M8-1.25
Price
N/A
6
HANDWHEEL TYPE-10 60D X 10B X M6-1
Price
N/A
7
DIAL RING
Price
N/A
8
THRUST BEARING 51100
Price
N/A
9
CAP SCREW M6-1 X 20
Price
N/A
10
HANDWHEEL BRACKET
Price
N/A
11
HORIZONTAL TABLE GIB
Item is no longer available
Price
N/A
12
FLANGE SCREW M6-1 X 25
Price
N/A
13
TABLE BASE
Price
N/A
14
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
15
LEADSCREW
Price
N/A
16
LEADSCREW NUT
Price
N/A
17
GIB
Price
N/A
18
ADJUSTABLE HANDLE M6-1 X 25, 50L
Price
N/A
19
SLIDE TABLE
Price
N/A
20
LEADSCREW
Price
N/A
21
LEADSCREW NUT
Price
N/A
22
SET SCREW M6-1 X 10
Price
N/A
