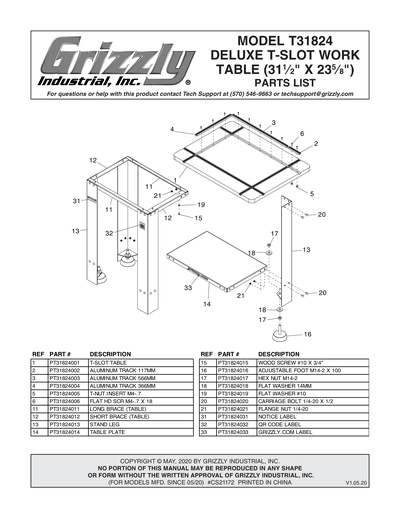

Parts for T31824 Deluxe T-Slot Work Table, 31-1/2" x 23-5/8"

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
T-SLOT TABLE
2
ALUMINUM TRACK 117MM
3
ALUMINUM TRACK 566MM
4
ALUMINUM TRACK 366MM
5
T-NUT INSERT M4-.7
6
FLAT HD SCR M4-.7 X 18
11
LONG BRACE (TABLE)
12
SHORT BRACE (TABLE)
13
STAND LEG
14
TABLE PLATE
15
WOOD SCREW #10 X 3/4"
16
ADJUSTABLE FOOT M14-2 X 100
17
Now: PN32M
HEX NUT M14-2
Price
N/A
18
Now: PW10M
FLAT WASHER 14MM
Price
N/A
19
Now: PW03
FLAT WASHER #10
Price
N/A
20
Now: PCB18
CARRIAGE BOLT 1/4-20 X 1/2
Price
N/A
21
Now: PFN01
FLANGE NUT 1/4-20
Price
N/A
31
NOTICE LABEL
32
QR CODE LABEL
33
GRIZZLY.COM LABEL 5.75",BEIGE
Price
N/A
MAN
MANUAL T31824 MFD-05.20+ V1.05.20
