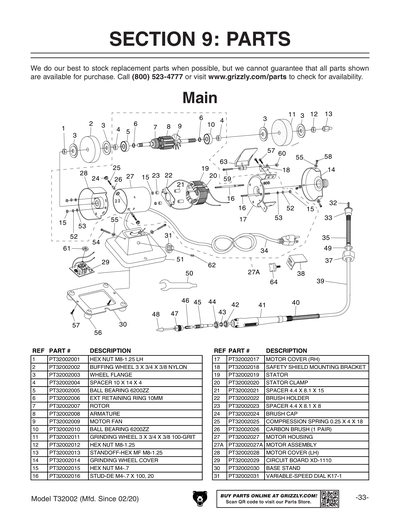

Parts for T32002 - 1/4 HP Variable-Speed Mini Benchtop Grinder/Buffer with Rotary Shaft
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 |
PT32002001
Replaced By PN53M
|
HEX NUT M8-1.25 LH
|
N/A | View Replacement | |
| 2 | PT32002002 | BUFFING WHEEL 3 X 3/4 X 3/8 NYLON | $2.00 | ||
| 3 | PT32002003 | WHEEL FLANGE | $1.00 | ||
| 4 | PT32002004 | SPACER 10 X 14 X 4 | $1.00 | ||
| 5 |
PT32002005
Replaced By P6200ZZ
|
BALL BEARING 6200ZZ
|
N/A | View Replacement | |
| 6 |
PT32002006
Replaced By PR01M
|
EXT RETAINING RING 10MM
|
N/A | View Replacement | |
| 7 |
PT32002007
Replaced By PT32002007A
|
ARMATURE ASSEMBLY
|
N/A | View Replacement | |
| 7A | PT32002007A | ARMATURE ASSEMBLY | $6.00 | ||
| 8 |
PT32002008
Replaced By PT32002007A
|
ARMATURE ASSEMBLY
|
N/A | View Replacement | |
| 9 |
PT32002009
Replaced By PT32002007A
|
ARMATURE ASSEMBLY
|
N/A | View Replacement | |
| 10 |
PT32002010
Replaced By P6200ZZ
|
BALL BEARING 6200ZZ
|
N/A | View Replacement | |
| 11 | PT32002011 | GRINDING WHEEL 3 X 3/4 X 3/8 100-GRIT | $3.00 | ||
| 12 |
PT32002012
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| 13 | PT32002013 | STANDOFF-HEX MF M8-1.25 | $1.00 | ||
| 14 | PT32002014 | GRINDING WHEEL COVER | $1.00 | ||
| 15 |
PT32002015
Replaced By PN04M
|
HEX NUT M4-.7
|
N/A | View Replacement | |
| 16 | PT32002016 | STUD-DE M4-.7 X 100, 20 | $1.00 | ||
| 17 | PT32002017 | MOTOR COVER (RH) | $2.00 | ||
| 18 | PT32002018 | SAFETY SHIELD MOUNTING BRACKET | $1.00 | ||
| 19 | PT32002019 | STATOR W/CLAMP AND SPACER | $4.00 | ||
| 20 |
PT32002020
Replaced By PT32002019
|
STATOR W/CLAMP AND SPACER
|
N/A | View Replacement | |
| 21 |
PT32002021
Replaced By PT32002019
|
STATOR W/CLAMP AND SPACER
|
N/A | View Replacement | |
| 22 | PT32002022 | BRUSH HOLDER | $1.00 | ||
| 23 | PT32002023 | SPACER 4.4 X 8.1 X 8 | $1.00 | ||
| 24 | PT32002024 | BRUSH CAP | $1.00 | ||
| 25 |
PT32002025
Replaced By PT32002026
|
CARBON BRUSH AND SPRING (PAIR)
|
N/A | View Replacement | |
| 26 | PT32002026 | CARBON BRUSH AND SPRING (PAIR) | $1.00 | ||
| 27 | PT32002027 | MOTOR HOUSING | $1.50 | ||
| 27A | PT32002027A | MOTOR ASSEMBLY | $20.00 | ||
| 28 | PT32002028 | MOTOR COVER (LH) | $1.50 | ||
| 29 | PT32002029 | CIRCUIT BOARD XD-1110 | $2.50 | ||
| 30 | PT32002030 | BASE STAND | $1.00 | ||
| 31 | PT32002031 | VARIABLE-SPEED DIAL K17-1 | $1.00 | ||
| 32 |
PT32002032
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 32A | PT32002032A | ROTARY SHAFT ASSEMBLY | $4.00 | ||
| 33 |
PT32002033
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 34 | PT32002034 | POWER CORD 18G 3W 72" 5-15P | $3.00 | ||
| 35 |
PT32002035
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 37 |
PT32002037
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 38 | PT32002038 | TOOL REST | $1.00 | ||
| 39 |
PT32002039
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 40 |
PT32002040
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 41 |
PT32002041
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 42 |
PT32002042
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 43 |
PT32002043
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 45 |
PT32002045
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 46 |
PT32002046
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 47 |
PT32002047
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 48 |
PT32002048
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 49 |
PT32002049
Replaced By PT32002032A
|
ROTARY SHAFT ASSEMBLY
|
N/A | View Replacement | |
| 50 | PT32002050 | WRENCH 9MM OPEN-END | $1.00 | ||
| 51 | PT32002051 | BASE | $2.50 | ||
| 52 | PT32002052 | INT TOOTH WASHER 4MM | $1.00 | ||
| 53 |
PT32002053
Replaced By PW05M
|
FLAT WASHER 4MM
|
N/A | View Replacement | |
| 54 |
PT32002054
Replaced By PS06M
|
PHLP HD SCR M5-.8 X 20
|
N/A | View Replacement | |
| 55 |
PT32002055
Replaced By PLW01M
|
LOCK WASHER 5MM
|
N/A | View Replacement | |
| 56 | PT32002056 | RUBBER FOOT | $1.00 | ||
| 57 |
PT32002057
Replaced By PS17M
|
PHLP HD SCR M4-.7 X 6
|
N/A | View Replacement | |
| 58 |
PT32002058
Replaced By PS19M
|
PHLP HD SCR M5-.8 X 6
|
N/A | View Replacement | |
| 59 |
PT32002059
Replaced By PS51M
|
PHLP HD SCR M4-.7 X 30
|
N/A | View Replacement | |
| 60 |
PT32002060
Replaced By PLN01M
|
LOCK NUT M4-.7
|
N/A | View Replacement | |
| 63 | PT32002063 | SAFETY SHIELD | $1.00 | ||
| 64 | PT32002064 | KNOB BOLT M6-1 X 13, 4-LOBE, D18 | $1.00 | ||

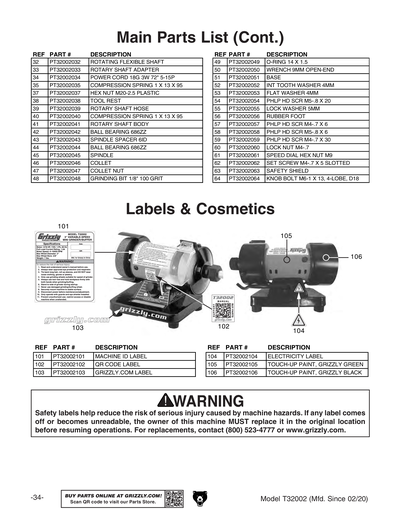

| 101 | PT32002101 | MACHINE ID LABEL | $9.50 | ||
| 102 | PT32002102 | QR CODE LABEL | $2.50 | ||
| 103 | PT32002103 | GRIZZLY.COM LABEL | $1.00 | ||
| 104 |
PT32002104
Replaced By PLABEL-14A
|
ELECTRICITY 0.7W X 0.6H
|
N/A | View Replacement | |
| 105 |
PT32002105
Replaced By PPAINT-1
|
N/S GRIZZLY GREEN G1023S
|
N/A | View Replacement | |
| 106 |
PT32002106
Replaced By PPAINT-7
|
GLOSSY BLACK
|
N/A | View Replacement | |
| MAN | PT32002MAN | MANUAL T32002 MFD-02.20+ V1.03.20 | $17.50 |
