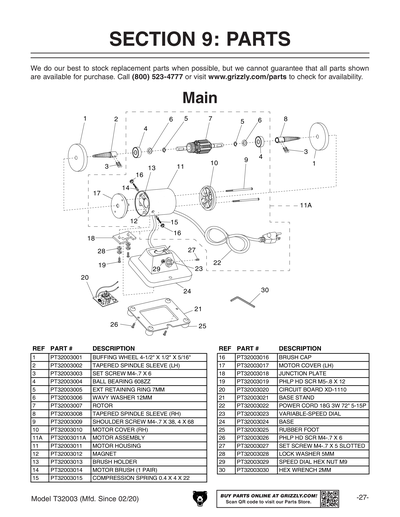

Parts for T32003 1/4 HP Variable-Speed Mini Benchtop Polisher

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BUFFING WHEEL 4-1/2" X 1/2 X 5/16"
2
TAPERED SPINDLE SLEEVE (LH)
3
SET SCREW M4-.7 X 6
Price
N/A
4
BALL BEARING 608ZZ
5
Now: PR36M
EXT RETAINING RING 7MM
Price
N/A
6
WAVY WASHER 12MM
7
ROTOR
8
TAPERED SPINDLE SLEEVE (RH)
9
SHOULDER SCREW M4-.7 X 38, 4 X 68
10
MOTOR COVER (RH)
11
MOTOR HOUSING
12
MAGNET
13
BRUSH HOLDER
14
MOTOR BRUSH AND SPRING (PAIR)
15
MOTOR BRUSH AND SPRING (PAIR)
Price
N/A
16
BRUSH CAP
17
MOTOR COVER (LH)
18
JUNCTION PLATE
19
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
20
CIRCUIT BOARD XD-1110 W/ NUT & SCREW
21
BASE STAND
22
POWER CORD 18G 3W 72" 5-15P
23
VARIABLE-SPEED DIAL
24
BASE
25
RUBBER FOOT
26
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
27
CIRCUIT BOARD XD-1110 W/ NUT & SCREW
Price
N/A
28
LOCK WASHER 5MM
Price
N/A
29
CIRCUIT BOARD XD-1110 W/ NUT & SCREW
Price
N/A
30
HEX WRENCH 2MM
Price
N/A
101
MACHINE ID LABEL
102
ELECTRICITY 0.7W X 0.6H
Price
N/A
103
N/S GRIZZLY GREEN G1023S
Price
N/A
104
GLOSSY BLACK
Price
N/A
105
GRIZZLY.COM LABEL 3.50",GRAY
Price
N/A
106
QR CODE LABEL
MAN
MANUAL T32003 MFD-02.20+ V1.04.20
