Parts for T32006 Variable-Speed Mini Benchtop Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

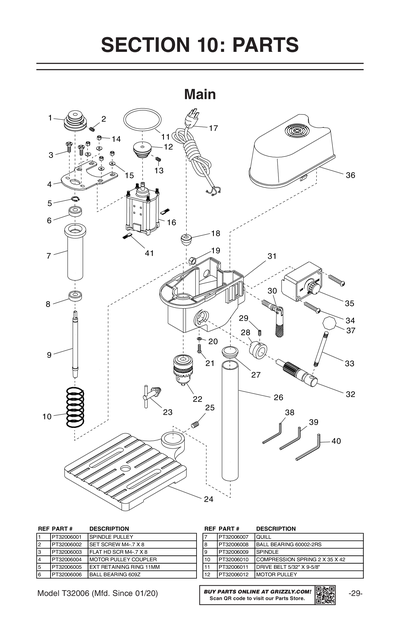

1
SPINDLE PULLEY
2
SET SCREW M4-.7 X 8
Price
N/A
3
FLAT HD SCR M4-.7 X 8
Price
N/A
4
MOTOR PULLEY COUPLER
5
Now: PR48M
EXT RETAINING RING 11MM
Price
N/A
6
BALL BEARING 609Z
7
QUILL
8
BALL BEARING 60002-2RS
9
SPINDLE
10
COMPRESSION SPRING 2 X 35 X 42
11
DRIVE BELT 5/32" X 9-5/8"
12
MOTOR PULLEY
13
SET SCREW M4-.7 X 8
Price
N/A
14
LOCK NUT M4-.7
Price
N/A
15
Now: PW05M
FLAT WASHER 4MM
Price
N/A
16
MOTOR 1/8HP 120V 1-PH
17
POWER CORD 18G 3W 72" 5-15P
18
STRAIN RELIEF TYPE-1 5/8
19
Now: PN03M
HEX NUT M8-1.25
Price
N/A
20
Now: PW05M
FLAT WASHER 4MM
Price
N/A
21
Now: PS01M
PHLP HD SCR M4-.7 X 18
Price
N/A
22
DRILL CHUCK B10 X 1/32-1/4"
23
DRILL CHUCK KEY 6MM STD 11T SD-9MM
24
TABLE
25
SET SCREW M8-1.25 X 8
Price
N/A
26
COLUMN
27
COLUMN COVER
28
DOWNFEED LOCK RING
29
SET SCREW M5-.8 X 10
Price
N/A
30
FOLDING HANDLE 110L, M8-1.25 X 15
31
HEADSTOCK
32
DOWNFEED PINION GEAR
33
LEVER SHAFT-DE M8-1.25 X 105, 10
34
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A
35
SWITCH BOX ASSEMBLY
36
HEADSTOCK COVER
37
KNOB M8-1.25, D30, BALL
38
HEX WRENCH 2MM
Price
N/A
39
HEX WRENCH 2.5MM
Price
N/A
40
HEX WRENCH 4MM
Price
N/A
41
MOTOR BRUSH

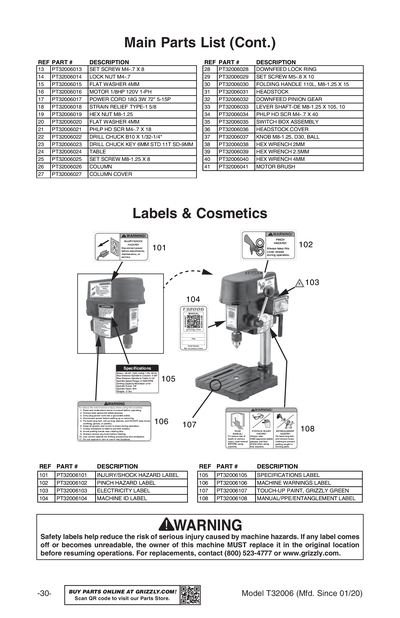

101
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
102
PINCH HAZARD LABEL
103
ELECTRICITY 0.5W X 0.4H
Price
N/A
104
MACHINE ID LABEL
105
SPECIFICATIONS LABEL
106
MACHINE WARNINGS LABEL
107
N/S GRIZZLY GREEN G1023S
Price
N/A
108
MANUAL/PPE/ENTANGLEMENT LABEL
MAN
MANUAL T32006 MFD-01.20+ V1.03.20
