Parts for T32251 - 6" Variable-Speed Bench Grinder

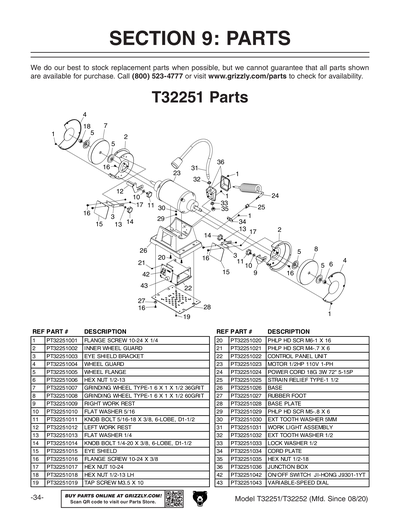

Part Diagram for T32251
Part Diagram for T32251
Part Diagram for T32251
Part Diagram for T32251
Part Diagram for T32251
Part Diagram for T32251

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
INNER WHEEL GUARD
Item is no longer available
Price
N/A
3
*DISCD*EYE SHIELD BRACKET
Item is no longer available
Price
N/A
4
WHEEL GUARD
Item is no longer available
Price
N/A
5
WHEEL FLANGE
Item is no longer available
Price
N/A
6
HEX NUT 1/2-12
Price
N/A
7
GRINDING WHEEL TYPE-1 6 X 1 X 1/2 36GRIT
Item is no longer available
Price
N/A
8
GRINDING WHEEL TYPE-1 6 X 1 X 1/2 60GRIT
Item is no longer available
Price
N/A
9
RIGHT WORK REST
Item is no longer available
Price
N/A
10
FLAT WASHER 5/16
Price
N/A
11
*DISCD*KNOB BOLT 5/16-18 X 3/8, 6-LOBE,
Price
$1.49
12
LEFT WORK REST
Item is no longer available
Price
N/A
13
FLAT WASHER 1/4
Price
N/A
14
*DISCD*KNOB BOLT 1/4-20 X 3/8, 6-LOBE,
Price
$1.49
15
EYE SHIELD
Item is no longer available
Price
N/A
16
FLANGE SCREW 10-24 X 3/8
Price
N/A
17
HEX NUT 10-24
Price
N/A
18
HEX NUT 1/2-13 LH
Price
N/A
19
TAP SCREW M3.5 X 10
Price
N/A
20
PHLP HD SCR M6-1 X 16
Price
N/A
21
PHLP HD SCR M4-.7 X 6
Price
N/A
22
*DISCD*CONTROL PANEL UNIT
Item is no longer available
Price
N/A
23
MOTOR 1/2HP 110V 1-PH
Item is no longer available
Price
N/A
24
POWER CORD 18G 3W 72" 5-15P
Item is no longer available
Price
N/A
25
STRAIN RELIEF TYPE-1 1/2
Item is no longer available
Price
N/A
26
BASE
Item is no longer available
Price
N/A
27
Price
$1.60
28
Price
$2.60
29
PHLP HD SCR M5-.8 X 6
Price
N/A
30
EXT TOOTH WASHER 5MM
Price
N/A
31
Price
$87.30
32
EXT TOOTH WASHER 1/2
Price
N/A
33
LOCK WASHER 1/2
Price
N/A
34
CORD PLATE
Item is no longer available
Price
N/A
35
HEX NUT 1/2-18
Item is no longer available
Price
N/A
36
JUNCTION BOX
Item is no longer available
Price
N/A
42
ON/OFF SWITCH JI-HONG J9301-1YT
Price
$9.10
43
*DISCD*VARIABLE-SPEED DIAL
Item is no longer available
Price
N/A
44
WRENCH 19MM CLOSED-END
Item is no longer available
Price
N/A
101

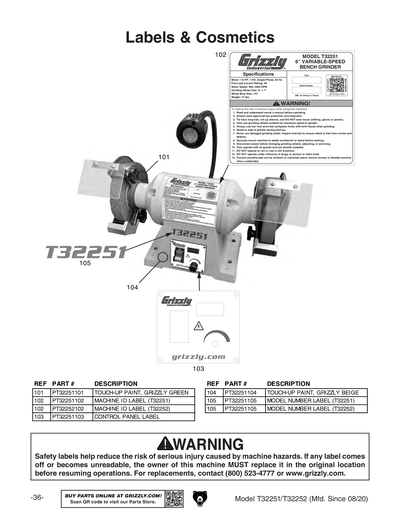

N/S GRIZZLY GREEN G1023S
Price
N/A
102
MACHINE ID LABEL
Item is no longer available
Price
N/A
103
*DISCD*CONTROL PANEL LABEL
Price
$3.50
104
BEIGE REF G0555
Price
N/A
105
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
MAN
MANUAL T32251/T32252 MFD-08.20+ V1.11.20
Item is no longer available
Price
N/A
