Parts for T32253 1/2 HP Variable-Speed Buffer With Work Light

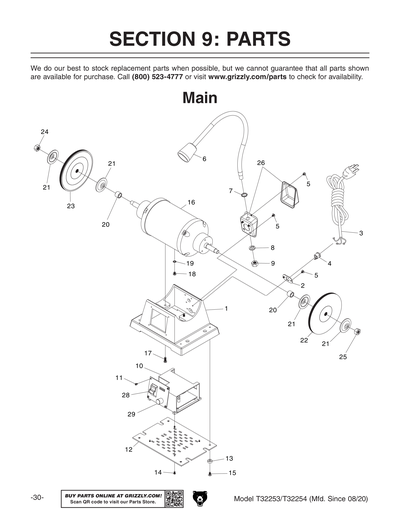

Parts Diagrams for T32253 - 1/2 HP Variable-Speed Buffer With Work Light
IMPORTANT
Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

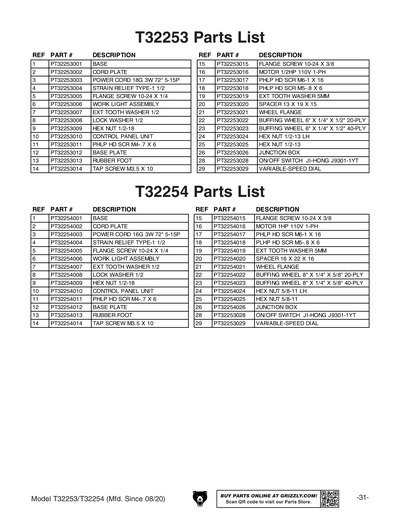

Parts List for Parts for T32253 1/2 HP Variable-Speed Buffer With Work Light
16
MOTOR 1/2HP 110V 1-PH
Item is no longer available
Price
N/A20
SPACER 13 X 19 X 15
Item is no longer available
Price
N/A22
BUFFING WHEEL 6" X 1/4" X 1/2" 20-PLY
Item is no longer available
Price
N/A23
BUFFING WHEEL 6" X 1/4" X 1/2" 40-PLY
Item is no longer available
Price
N/A101
MACHINE ID LABEL
Item is no longer available
Price
N/A104
MODEL NUMBER LABEL
Item is no longer available
Price
N/AMAN
MANUAL T32253/T32254 MFD-08.30+ V1.11.20
Item is no longer available
Price
N/A
