Parts for T32339 - 20-Gallon 2 HP Portable Air Compressor

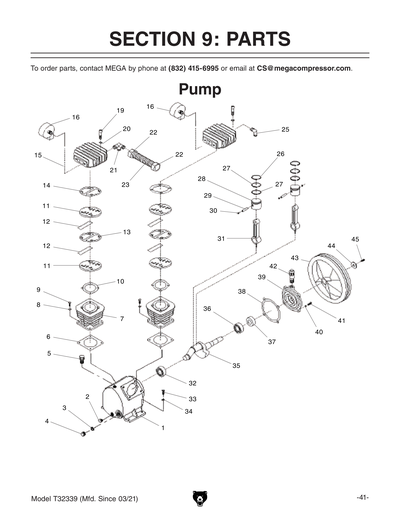

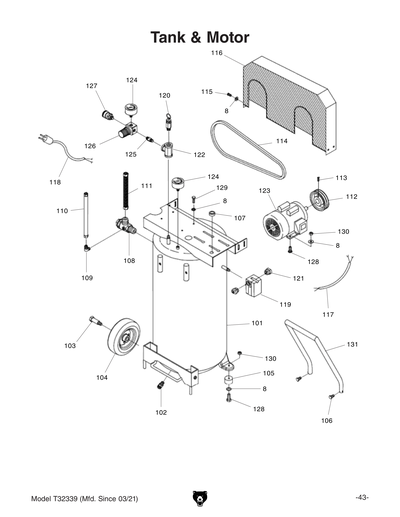

Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339
Part Diagram for T32339

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

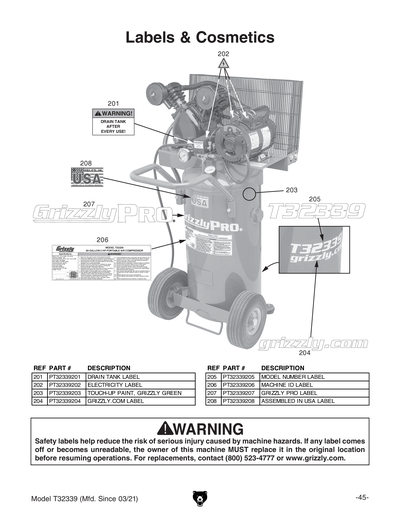

201
DRAIN TANK LABEL
Price
N/A
202
ELECTRICITY 0.5W X 0.4H
Price
N/A
203
N/S GRIZZLY GREEN G1023S
Price
N/A
204
GRIZZLY.COM LABEL 11.25",WHITE
Price
N/A
205
Price
$16.40
206
Price
$16.40
207
Price
$16.40
208
Price
$16.40
MAN
MANUAL T32339 MFD-03.21+ V1.06.22
Price
$14.65
